Easy Cleaning Drawer Magnet
Description
Reviews
Easy cleaning Magnetic Drawers are widely used in field of ceramics, chemicals, pharmacy, food, plastic, rubber, dyestuff, mining and environmental protection and designed for removing Ferrum scraps from dry powder, strip or graininess materials such as sugar, grain, tea etc.Ferrous comtaminations will fall down from the sleeve automaticlly by taking grate magnets out from the sleeve
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /polishing
3.Magnetic intensity :1500-9000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:30days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

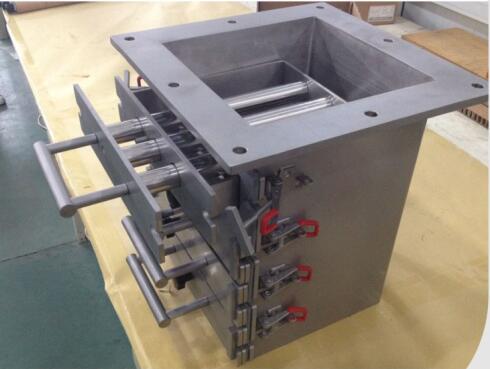

Square inlet/outlet
MODEL NO
|
Dimension(mm)
|
Weight(Kg)
|
||
---|---|---|---|---|
H
|
A
|
B
|
||
SWd-NS-2020
|
270
|
208
|
205
|
16.5
|
SWd-NS-2525
|
270
|
258
|
255
|
25.5
|
SWd-NS-3030
|
270
|
308
|
305
|
32.5
|
SWd-NS-3535
|
270
|
358
|
355
|
39
|
SWd-NS-4040
|
270
|
408
|
405
|
50
|
SWs-NS-2020
|
200
|
208
|
205
|
12.5
|
SWs-NS-2525
|
200
|
258
|
255
|
19.5
|
SWs-NS-3030
|
200
|
308
|
305
|
23.2
|
SWs-NS-3535
|
200
|
358
|
355
|
27
|
SWs-NS-4040
|
200
|
408
|
405
|
35.5
|

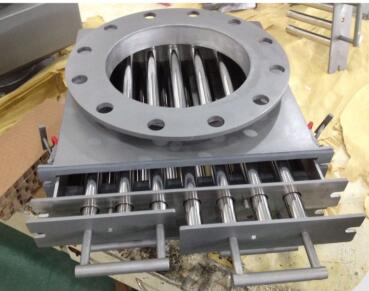

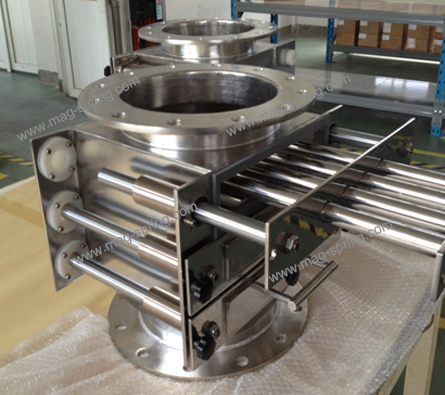

Round inlet/outlet
MODEL NO
|
Dimension(mm)
|
Weight(Kg)
|
|||
---|---|---|---|---|---|
D
|
H
|
A
|
B
|
||
SWd-NR-150
|
159
|
286
|
208
|
205
|
20
|
SWd-NR-200
|
219
|
286
|
258
|
255
|
28
|
SWd-NR-250
|
273
|
286
|
308
|
305
|
33
|
SWd-NR-300
|
325
|
286
|
358
|
355
|
43
|
SWs-NR-150
|
159
|
216
|
208
|
205
|
16
|
SWs-NR-200
|
219
|
216
|
258
|
255
|
20
|
SWs-NR-250
|
273
|
216
|
308
|
305
|
24
|
SWs-NR-300
|
325
|
216
|
358
|
355
|
31
|
