Magnetic Coolant Separator
Description
Reviews
Magnetic Coolant Separator mainly consists of magnetic drum, rubber drum , Scraper blade,stainless tank which can continuously removes ferrous contaminations from the coolant flow . It is ideal for production runs of ferrous material on cutting and grinding machine tools with water-based coolants or straight cutting oils to extends the life cycle of machine tools and the coolant and provides increased productivity with less downtime for machine coolant replacement.
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /painting
3.Magnetic intensity :1500-3000GS
4.Max working temparature: 80
5.Magnet materials : Ceramic
6.Custom made :available.your logo/brand/pattern can be printed on
7.MOQ:1PC
8.Lead time:45-50days
9.Packing:standard brown carton/wood case
10.Payment term: T/T
11.Loading Port:Ning Bo/Shang Hai
|

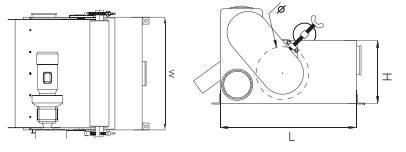

MODEL NO
|
Dimension(mm)
|
Roller( )
|
RPM(r/min)
|
In/out(inch)
|
Weight(Kg)
|
|||
|---|---|---|---|---|---|---|---|---|
|
LPM(L/min)
|
L
|
W
|
H
|
|||||
|
MCS25
|
25
|
450
|
150
|
205
|
150
|
2.5
|
1.5
|
41
|
|
MCS50
|
50
|
450
|
200
|
205
|
150
|
2.5
|
2
|
55
|
|
MCS75
|
75
|
450
|
250
|
205
|
150
|
2.5
|
2
|
63
|
|
MCS100
|
100
|
450
|
300
|
205
|
150
|
2.5
|
2.5
|
75
|
|
MCS150
|
150
|
500
|
350
|
255
|
180
|
2.5
|
3
|
121
|
|
MCS200
|
200
|
500
|
450
|
255
|
180
|
2.5
|
3
|
155
|
|
MCS300
|
300
|
650
|
450
|
305
|
200
|
2.5
|
3
|
241
|
|
MCS400
|
400
|
650
|
550
|
305
|
200
|
2.5
|
4
|
294
|
|
MCS500
|
500
|
650
|
650
|
305
|
200
|
2.5
|
5
|
347
|
