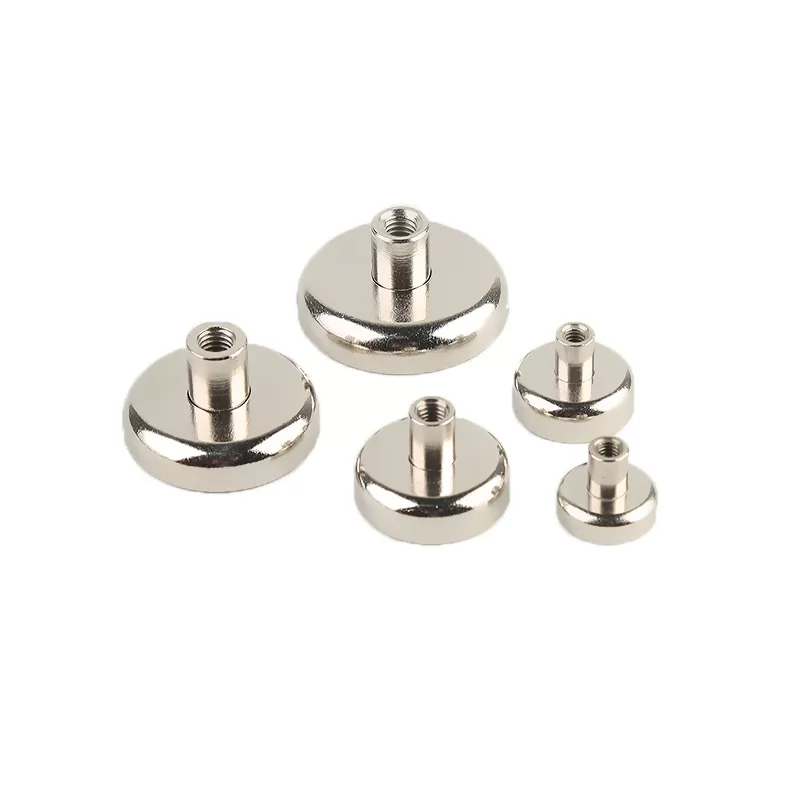

Neodymium Pot Magnets with Inner Thread SWND
Product Introduction
NdFeb magnetic cup magnets with inner thread are used for mounting, lifting, holding, fixing and transferring objects ?in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical engineering plants etc.
Contact Us to Get Started
Description
Reviews
Magnetic cup holders with inner thread are used for mounting, lifting, holding, fixing and transferring objects ?in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants , mechanical engineering plants etc.
1.Coating: Zn,Ni,Cr,Painting
2.Holding force:21-1607N
3.Magnet materials : NdFeb
4.Custom made :available
5.Sample : available
6.MOQ:50PC
7.Lead time:35days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai

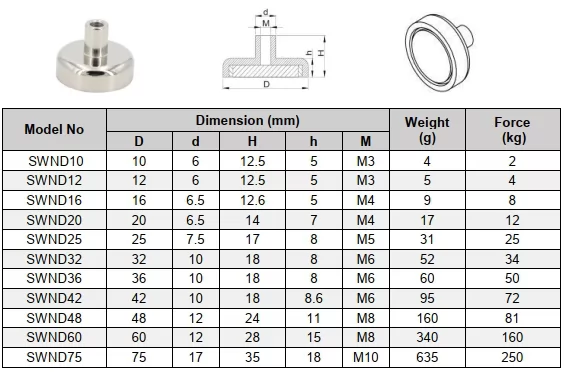

| Model No | Dimension (mm) | Weight (g) | Force?(kg) | ||||
| D | d | H | h | M | |||
| ?SWND10 | 10 | 6 | 12.5 | 5 | M3 | 4 | 2 |
| SWND12 | 12 | 6 | 12.5 | 5 | M3 | 5 | 4 |
| SWND16 | 16 | 6.5 | 12.6 | 5 | M4 | 9 | 8 |
| SWND20 | 20 | 6.5 | 14 | 7 | M4 | 17 | 12 |
| SWND25 | 25 | 7.5 | 17 | 8 | M5 | 31 | 25 |
| SWND32 | 32 | 10 | 18 | 8 | M6 | 52 | 34 |
| SWND36 | 36 | 10 | 18 | 8 | M6 | 60 | 50 |
| SWND42 | 42 | 10 | 18 | 8.6 | M6 | 95 | 72 |
| SWND48 | 48 | 12 | 24 | 11 | M8 | 160 | 81 |
| SWND60 | 60 | 12 | 28 | 15 | M8 | 340 | 160 |
| SWND75 | 75 | 17 | 35 | 18 | M10 | 635 | 250 |
