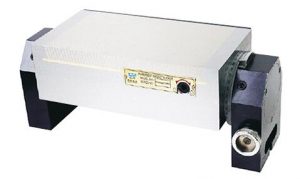

Permanent Magnetic Chuck with Mirco-Pitch SWPC45
Product Introduction
Magnetic Chucks consists of wearable brass, steel and strong permanent magnets which is ideal for holding working pieces on grinding machine, EDM, carving machine, etc.
Contact Us to Get Started
Description
Reviews
Magnetic Chucks consists of wearable brass, steel and strong permanent magnets which is ideal for holding working pieces on grinding machine, EDM, carving machine, etc.
1.Part No.: SWPC 45
2.Material??strong Ndfeb Magnet
3.Holding force: 100N/cm2
4.Pitch:0.5+1.5/1+3/0.5+1
5.Sample : available
6.MOQ:1 PC
7.Lead time:30days
8.Packing:standard brown carton/wood case
9.Payment term: T/T
10.Loading Port:Ning Bo/Shang Hai
|
MODEL NO
|

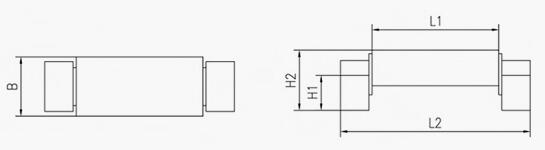

Dimensions(mm)
|
NW(Kg)
|
Magnetic Force
(N/CM2) |
||||
|---|---|---|---|---|---|---|---|
|
B
|
L1
|
H1
|
H2
|
L2
|
|||
|
SWPC45-125x250
|
125
|
250
|
95
|
145
|
350
|
28.5
|
100
|
|
SWPC45-150x300
|
150
|
300
|
105
|
160
|
400
|
39.5
|
100
|
|
SWPC45-150x350
|
150
|
350
|
105
|
160
|
450
|
45.5
|
100
|
|
SWPC45-150x450
|
150
|
400
|
105
|
160
|
550
|
56.1
|
100
|
