Swivel magnetic hook
Product Introduction
Hook arm rotates 360 degrees on its base and moves 180 degrees up and down for maximum versatility.
Contact Us to Get Started
Description
Reviews
Swivel magnetic hook, magnetic swivel hooks' hook arm rotates 360 degrees on its base and moves 180 degrees up and down for maximum versatility. A great solution for organizing your workshop, closet, kitchen, garage, shed, product display, warehouse, retail store or office.? Swivel magnetic hook can hang everything from clotheslines, pots, pans, tools, utensils, toys, craft and paint supplies, hats, sports equipment, bags, coats, aprons, and practically anything else.
Magnetic swivel hooks can hold up to 17-60kg if is attached vertically, pull strength is reduced from?3.5- 8kg if attached horizontally
Features
- Simple structure properly designed with maximized magnetic force,
saving cost.
2. Coating option:Zn, Ni, Cr, Painting, Rubber cover, etc.

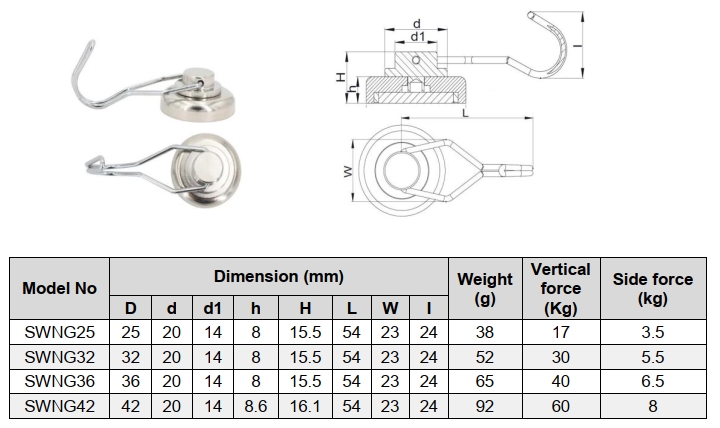

Model No | Dimension (mm) | Weight (g) | Vertical force (Kg) | Side force (kg) | |||||||
D | d | d1 | h | H | L | W | I | ||||
SWNG25 | 25 | 20 | 14 | 8 | 15.5 | 54 | 23 | 24 | 38 | 17 | 3.5 |
SWNG32 | 32 | 20 | 14 | 8 | 15.5 | 54 | 23 | 24 | 52 | 30 | 5.5 |
SWNG36 | 36 | 20 | 14 | 8 | 15.5 | 54 | 23 | 24 | 65 | 40 | 6.5 |
SWNG42 | 42 | 20 | 14 | 8.6 | 16.1 | 54 | 23 | 24 | 92 | 60 | 8 |
