Motor Magnets

N42UH Magnet

Product Introduction

Description

Reviews

Sintered NdFeB Magnet:N35UH,N38UH,N40UH, N42UH MAGNETS are very popular grades used in different kind of motors with max working more than 150-180 celsius degree.

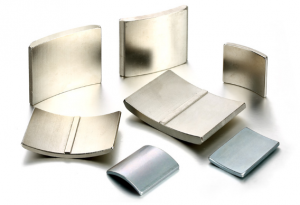

N35UH MAGNET

MAG SPRING can supply bulk these grade magnets with different size,grade ,coating and shape.Custom made available. If you need N42UH Magnet price ,please send drawing with grade ,size, coating, magnetization direction,quantity,etc.

Welcome to contact us for more N35UH,N38UH,N40UH, N42UH MAGNETS from us.

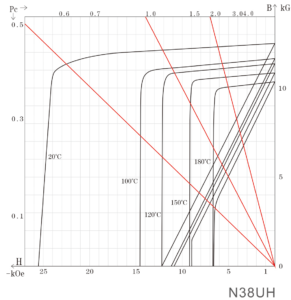

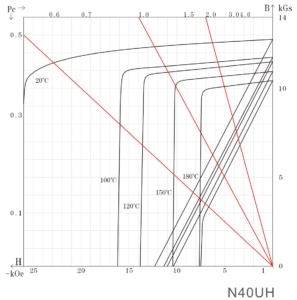

N38UH magnet curve N40UH magnets demag curve

More grades are available.

Properties		Remanence				Coercive force				Intrinsic coercive force		Maximum energy product				Working temp
Unit		kGs		T		kOe		kA/m				MGOe		kJ/m3		Working temp
Unit		Nom.	Min.	Nom.	Min.	Nom.	Min.	Nom.	Min.			Nom.	Min.	Nom.	Min.
No	Grade	Nom.	Min.	Nom.	Min.	Nom.	Min.	Nom.	Min.	kOe	kA/m	Nom.	Min.	Nom.	Min.
1	N35SH	12	11.7	1.2	1.17	11.3	11	900	876	20	1595	35	33	279	263	150
2	N37SH	12.3	12	1.23	1.2	11.5	11.3	915	900	20	1595	37	35	295	279	150
3	N38SH	12.5	12.2	1.25	1.22	11.8	11.4	939	908	20	1595	38	36	303	287	150
4	N40SH	12.7	12.5	1.27	1.25	12.1	11.8	963	939	20	1595	40	38	318	303	150
5	N42SH	13	12.8	1.3	1.28	12.4	12	987	955	20	1595	42	40	342	326	150
6	N45SH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	20	1595	45	43	358	342	150
7	N48SH	14	13.8	1.4	1.38	13.3	12.9	1059	1027	20	1595	48	46	383	367	130
8	N50SH	14.2	14	1.42	1.4	13.5	13.1	1074	1042	20	1595	50	48	398	383	130
9	N25UH	10	9.6	1	0.96	9.6	9.2	764	732	25	1990	25	22	199	175	180
10	N28UH	10.8	10.4	1.08	1.04	10.2	9.8	812	780	25	1990	28	26	223	207	180
11	N30UH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	25	1990	30	28	239	223	180
12	N33UH	11.5	11.3	1.15	1.13	11	10.6	876	844	25	1990	33	31	263	247	180
13	N35UH	11.9	11.7	1.19	1.17	11.3	11	900	876	25	1990	35	33	279	263	180
14	N38UH	12.5	12.2	1.25	1.22	11.8	11.4	939	908	25	1990	38	36	303	287	180
15	N40UH	12.7	12.5	1.27	1.25	12.2	11.8	971	939	25	1990	40	38	318	303	180
16	N42UH	13	12.8	1.3	1.28	12.4	12	987	955	25	1990	42	40	342	326	180
17	N45UH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	24	1911	45	43	358	342	150
18	N48UH	14	13.7	1.4	1.37	13.3	12.9	1059	1027	24	1911	48	45	383	367	150
19	N50UH	14.2	13.9	1.42	1.39	13.5	13.1	1074	1042	24	1911	50	48	398	383	150
20	N28EH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	30	2388	28	26	223	207	200
21	N30EH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	30	2388	30	28	239	223	200
22	N33EH	11.5	11.3	1.15	1.13	11	10.6	876	844	30	2388	33	31	263	247	200
23	N35EH	11.9	11.7	1.19	1.17	11.3	11	900	876	30	2388	35	33	279	263	200
24	N38EH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	30	2388	38	36	303	287	200
25	N40EH	12.7	12.4	1.27	1.24	12.2	11.8	971	939	30	2388	40	38	318	303	200
26	N42EH	13	12.8	1.3	1.28	12.4	12	987	955	29	2308	42	40	334	318	190
27	N45EH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	29	2308	45	43	358	342	190
28	N48EH	14	13.7	1.4	1.37	13.3	12.9	1059	1027	29	2308	48	46	383	367	190
29	N28AH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	33	2626	28	26	223	207	220
30	N30AH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	33	2626	30	28	239	223	220
31	N33AH	11.5	11.3	1.15	1.13	11	10.6	876	844	33	2626	33	31	263	247	220
32	N35AH	11.9	11.7	1.19	1.17	11.5	11	915	876	33	2626	35	33	279	263	220
33	N38AH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	33	2626	37	35	294	279	220
34	N40AH	12.7	12.4	1.27	1.24	12.1	11.8	971	939	33	2626	39	37	310	294	220
35	N42AH	13	12.8	1.3	1.28	12.4	12	987	955	33	2626	42	40	334	318	220
36	N45AH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	33	2626	45	43	358	342	220
37	N28TH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	40	3185	28	26	223	207	240
38	N30TH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	40	3185	30	28	239	223	240
39	N33TH	11.5	11.3	1.15	1.13	11	10.6	876	844	40	3185	33	31	263	247	240
40	N35TH	11.9	11.7	1.19	1.17	11.5	11	915	876	40	3185	35	33	279	263	240
41	N38TH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	40	3185	37	35	294	279	240
42	N40TH	12.7	12.4	1.27	1.24	12.1	11.8	971	939	40	3185	39	37	310	294	240
43	N28RH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	45	3583	28	26	223	207	260
44	N30RH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	45	3583	30	28	239	223	260
45	N33RH	11.5	11.3	1.15	1.13	11	10.6	876	844	45	3583	33	31	263	247	260
46	N35RH	11.9	11.7	1.19	1.17	11.5	11	915	876	45	3583	35	33	279	263	260
