Plate Magnet With Housing
Description
Reviews
Plate magnet with housing is composed of stainless steel housing and plate magnet which is widely used in the field of food,pharmacy,tobacco,chemical etc. As one kind of chute magnets , they remove tramp iron and ferrous fines from flow-resistant bulk materials which are easy to be blocked.Inside plate magnets are hinged to the housing like doors which is easy to be cleaned.A wedge-shaped baffle at the top of the housing can prevent materials from bridging and chocking and break up aggregated prodcuts and direct material flow oever the powerful two plate magnet.
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
|

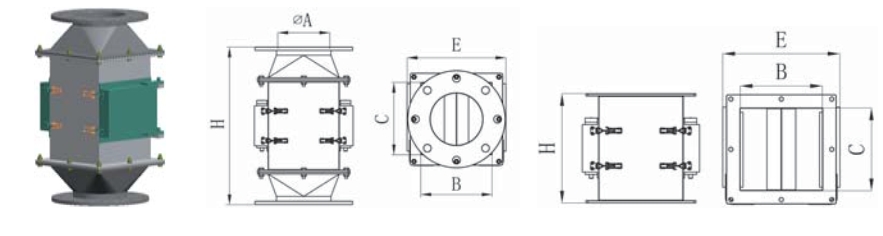

MODEL NO
|
Dimension(mm)
|
Weight(Kg)
|
||||
|---|---|---|---|---|---|---|
|
A
|
B
|
C
|
E
|
H
|
||
|
MC150
|
150
|
208
|
208
|
322
|
470
|
27
|
|
MC200
|
200
|
208
|
258
|
322
|
470
|
34
|
|
MC250
|
250
|
258
|
358
|
372
|
500
|
62
|
|
MC2020
|
-
|
208
|
208
|
322
|
300
|
17
|
|
MC2025
|
-
|
208
|
258
|
322
|
300
|
21
|
|
MC2525
|
-
|
258
|
258
|
372
|
300
|
27
|
|
MC2530
|
-
|
258
|
308
|
372
|
300
|
32
|
|
MC2535
|
-
|
258
|
308
|
372
|
300
|
37
|
|
MC2540
|
-
|
208
|
408
|
372
|
300
|
42
|
|
MC2545
|
-
|
258
|
458
|
372
|
300
|
47
|
|
MC2550
|
-
|
208
|
508
|
372
|
300
|
53
|
|
MC2555
|
-
|
258
|
558
|
372
|
300
|
58
|
|
MC2560
|
-
|
258
|
608
|
372
|
300
|
63
|
