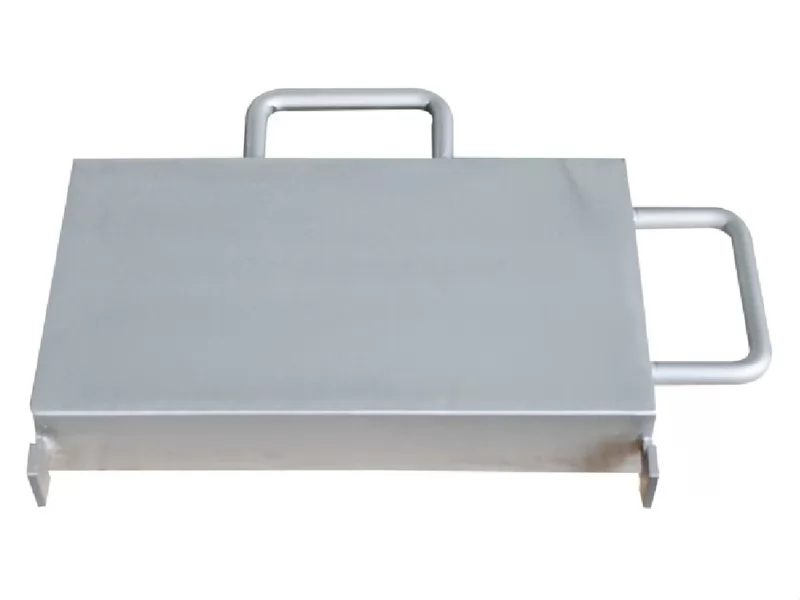

Spout Plate Magnet
Product Introduction
It is one kind of tramp iron magnet which is developed to hold ferrous debris from the high volume materials in chute or spout and can prevent tramp iron and fines wash-off even when product flow is very rapid. It is an ideal safeguarding for downstream process equipments.
Contact Us to Get Started
Description
Reviews
It is one kind of tramp iron magnet which is developed to hold ferrous debris from the high volume materials in chute or spout and can prevent tramp iron and fines wash-off even when product flow is very rapid. It is an ideal safeguarding for downstream process equipments.
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:standard brown carton/wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
|

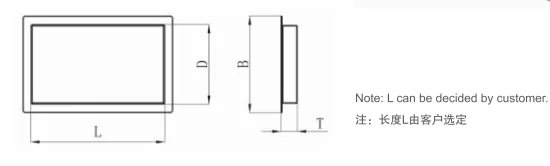

MODEL NO
|
Dimension(mm)
|
Magnets Action RangeDimension
|
Weight(Kg)
|
||
|---|---|---|---|---|---|
|
B
|
D
|
T
|
|||
|
SWFMP-SM60
|
250
|
175
|
51
|
60
|
5.8
|
|
SWFMP-SM120
|
300
|
225
|
76
|
120
|
10.5
|
|
SWFMP-SM150
|
450
|
360
|
111
|
150
|
19.2
|
|
SWNMP-EP60
|
190
|
125
|
36
|
60
|
3.8
|
|
SWNMP-EP120
|
250
|
175
|
46
|
120
|
6
|
|
SWNMP-EP150
|
330
|
240
|
56
|
150
|
10.4
|
