Suspended Plate Magnet
Product Introduction
Suspended magnet is a good choice to be suspended above open conveyors to remove ferrous contaminations from high volume and deep burden material flows which is widely used in grains, saw mill, feedstuffs, dry chemicals and other particulates to protect downstream processing equipments
Contact Us to Get Started
Description
Reviews
Suspended magnet or Suspension magnet is a good choice to be suspended above open conveyors to remove ferrous contaminations from high volume and deep burden material flows which is widely used in grains, saw mill, feedstuffs, dry chemicals and other particulates to protect downstream processing equipments
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/pattern can be printed on
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
|

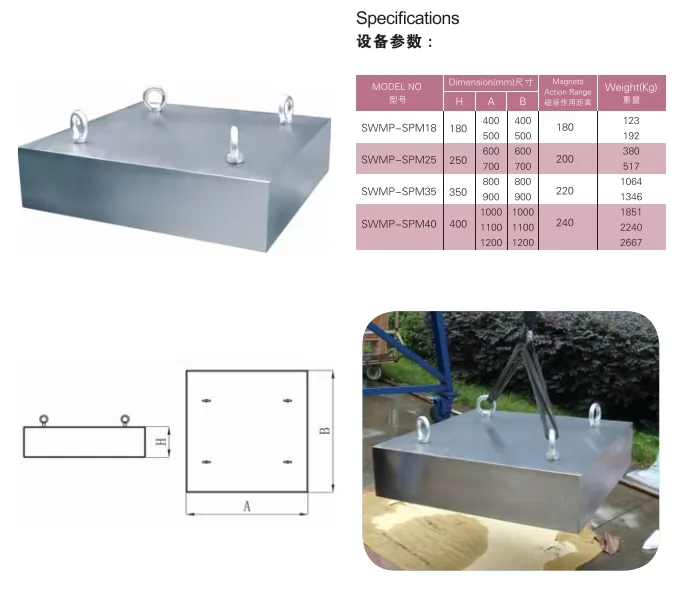

MODEL NO
|
Dimension(mm)
|
Magnets Action Range
|
Weight(Kg)
|
||
|---|---|---|---|---|---|
|
H
|
A
|
B
|
|||
|
SWMP-SPM18
|
180
|
400
|
400
|
180
|
123
|
|
500
|
500
|
192
|
|||
|
SWMP-SPM25
|
250
|
600
|
600
|
200
|
380
|
|
700
|
700
|
517
|
|||
|
SWMP-SPM35
|
350
|
800
|
800
|
220
|
1064
|
|
900
|
900
|
1346
|
|||
|
SWMP-SPM40
|
400
|
1000
|
1000
|
240
|
1851
|
|
1100
|
1100
|
2240
|
|||
|
1200
|
1200
|
2667
|
|||
