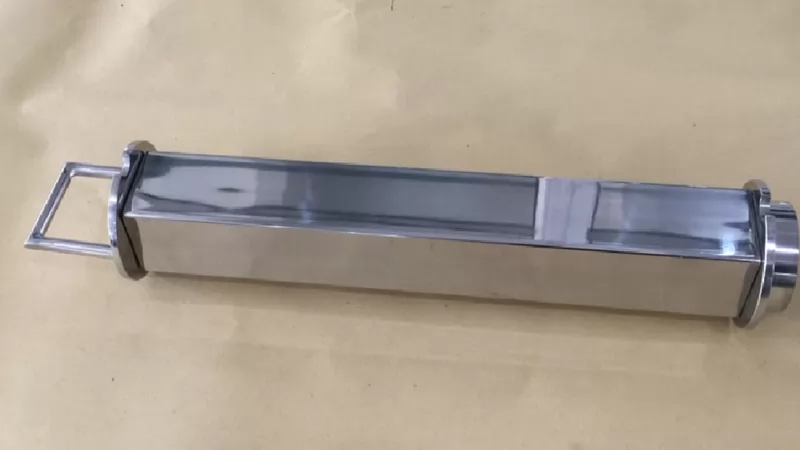

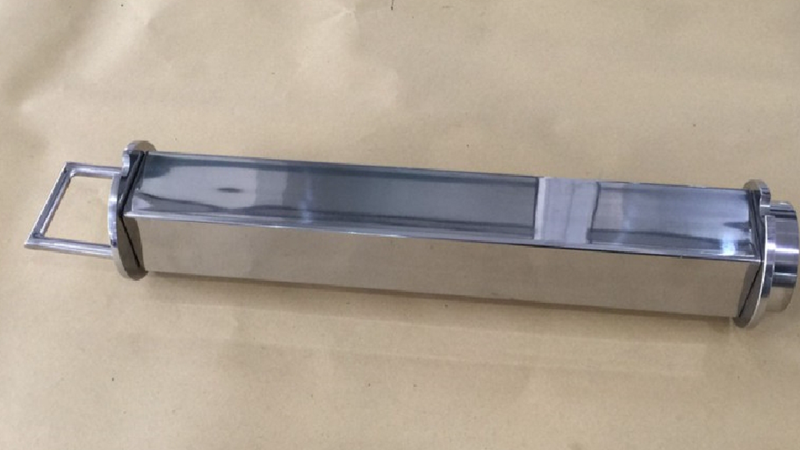

10000GS Square Magnet Tube with Neodymium Magnet

Product Introduction
10000GS Square Magnet Tube is also named magnetic tube, tube magnet, magnetic filter bars which is designed to remove ferrous contamination from materials.It consists of stainless steel tube and permanent magnets and wildly used in fields of food,chemical,pharmacy etc.
Housing material : SS304/SS316 Surface treatment: brushing ,sandblasting, polishing Coating options: salt bath nitriding, Tungsten carbide,PTFE, PFA, ETFE Magnet options: NdfeB / Smco/Ferrite
Contact Us to Get Started



Square Magnet Tube is also named magnetic tube, magnetic bars, magnetic filter bars, magnetic tube filters which consists of stainless steel tube and permanent magnets and is designed to remove small or medium size ferrous tramp metal contaminant from dry and liquid products.


1. The most common diameter is 1"(25MM), the length can be from 75mm to 2500mm. Other Standard magnetic filter bars include diameter 10, 16, 19, 20, 22, 2325, 28, 32, 38, 50, 76, 100mm.

2. It is equipped with high density and high-energy Rare-earth magnets to meet your application. You can build or modify your own magnetic separation equipment with individual magnetic filter tube.

3. Magnetic strength ranges from 2000 to10,000gauss.The magnetic strenth for magnetic bars with ceramic can be more than 2500 Gauss on the surfaces while magnetic tubes with Rare-earth magnetswhich peak value can be up to 10, 000 Gauss on the surfaces. Max temperature is up to 350 Centigrade degree

4. Fully seal welded with either plain ends or tapped ends are available to suit your application.

5. Waterproof is available

Name Square Magnet Tube
Material Ndfeb magnet /ferrite magnet/smco magnet
Surface treatment polishing,sandblasting
Coating teflon,tungsten carbide, nitriding
Diameter 10/1619/20/22/25/28/32/38/50/76/100
Max working Temparature 350
Housing material SS304/SS316
Max magnetic strengh 10,000GS
Monthly Output 50,000pcs
MOQ 1pc
Port Ningbo
Packing Carto
Lead time 15days
