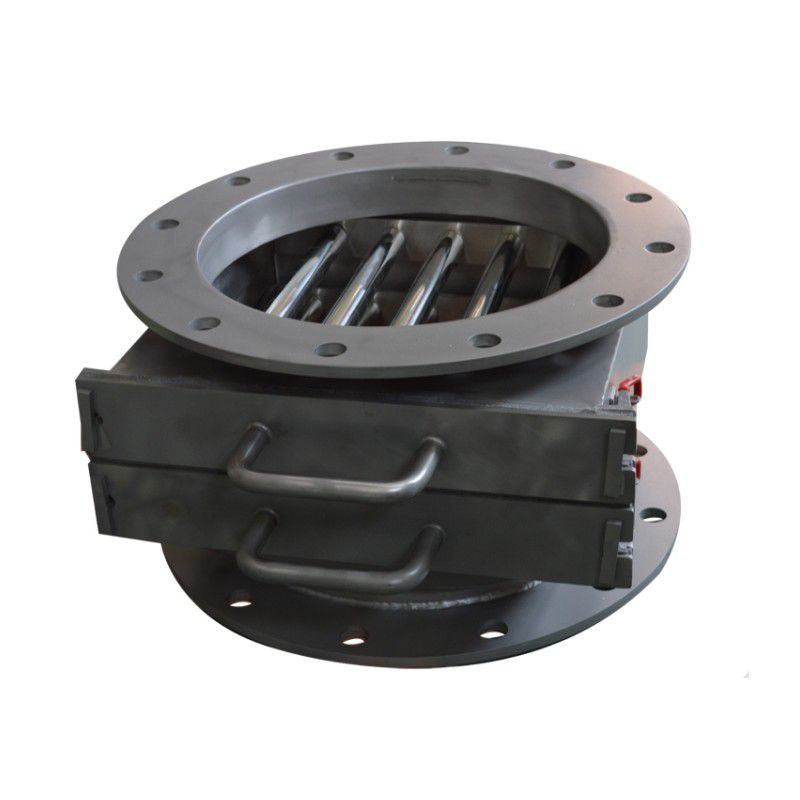

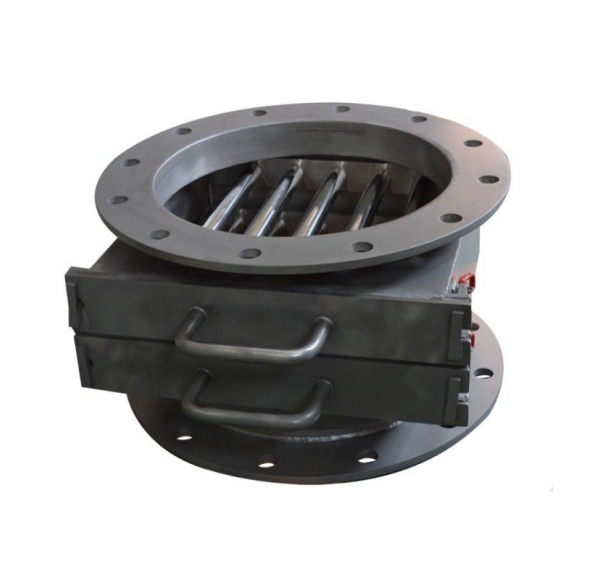

12000GS Inline Drawer Type Magnetic Filter
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the 12000GS Inline Drawer Type Magnetic Filter, a high-performance pipeline magnetic separation solution designed for efficient ferrous particle removal in dry powder and granular material processing. This advanced drawer type magnetic filter delivers an exceptional magnetic field strength up to 12000GS, enabling efficient capture of micro ferrous contaminants from various industrial materials.
Featuring a food-grade stainless steel structure, high-performance neodymium magnetic system and modular inline drawer design, this magnetic filter ensures stable operation, uniform magnetic field distribution, and outstanding de-ironing performance. It is widely applied in industries requiring high-purity material processing, effectively protecting downstream production equipment and significantly improving final product quality.
Key Features & Benefits
- Ultra-high magnetic field strength up to 12000GS for powerful ferrous impurity capture.
- Available in normal type (N Style, max 13000GS) and easy cleaning type (E Style, max 9000GS).
- Customizable square or round flange design for flexible inline pipeline installation.
- Wide working temperature range from 0℃ to 350℃ to meet various working conditions.
- Flexible magnetic grid configuration: single row, double rows or multi-row design available.
- High-quality SS304 / SS316L stainless steel housing for corrosion resistance and hygiene.
- Removable drawer design for easy cleaning, maintenance and operation.
- Food-grade welding and polishing available for food, pharmaceutical and chemical industries.
- Wide application for dry powder, strip and granular materials purification.
- Maintenance-free, low operational cost and long service life.
Technical Specifications
| Item | Parameter Details |
|---|---|
| Product Name | 12000GS Inline Drawer Type Magnetic Filter |
| Magnet Material | NdFeB / Ferrite / SmCo Magnet |
| Max Magnetic Strength | 12000GS (Custom 13000GS) |
| Housing Material | SS304 / SS316 Stainless Steel |
| Working Temperature | 0℃ - 350℃ |
| Surface Treatment | Sandblasting / Polishing |
| Surface Coating | Teflon / Tungsten Carbide |
| Flange Type | Square / Round Flange |
| Food Grade Welding | Available |
| MOQ | 1 PC |
| Lead Time | 30 Days |
| Loading Port | Ningbo Port |
Available Models & Structure Options
Our 12000GS Inline Drawer Type Magnetic Filter provides two standard models and flexible structural options:
• N Style (Normal Type): Max magnetic strength up to 13000GS for high efficiency separation
• E Style (Easy Cleaning Type): Max magnetic strength up to 9000GS for quick and convenient cleaning
• Customizable flange design: square or round flanges to match pipeline systems
• Magnetic grid layers: single row, double rows or multi-row magnetic rod arrangement
• Material options: SS304 or SS316L stainless steel for different application environments
Applications & Industry Use Cases
The 12000GS Inline Drawer Type Magnetic Filter is ideal for high-precision ferrous contamination removal across demanding industries:
• Chemical Industry: Purification of chemical powders and raw materials
• Pharmaceutical Industry: Iron removal from medical powders and ingredients
• Food Industry: High-purity purification of food additives and grain materials
• Ceramic Industry: Removal of iron impurities from ceramic raw materials
• Plastic & Rubber Industry: Purification of plastic granules and rubber materials
• Dyestuff & Mining Industry: High-efficiency iron removal from powder materials
• Environmental Protection: Material purification and impurity separation processes
Customization Services
We provide comprehensive customization services for our 12000GS Inline Drawer Type Magnetic Filters:
• Custom dimensions and flange sizes to match existing pipeline systems
• Tailored magnetic field strength for specific material purification
• High-temperature and corrosion-resistant configurations
• Custom magnetic grid rows and arrangement design
• Special surface treatment and coating for harsh environments
• Food-grade and pharmaceutical-grade hygienic design
• Complete turn-key solutions including installation and commissioning
Certifications & Compliance
Our Inline Drawer Type Magnetic Filters meet international industrial standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• Food-grade material certification for food contact
• CE certification for industrial safety standards
• Strict magnetic performance and durability testing
Warranty & After-Sales Support
We provide comprehensive warranty and support services for inline drawer magnetic filters:
• Standard manufacturer warranty covering all components
• Professional technical support for installation and commissioning
• Operator training and detailed operation documentation
• Regular maintenance guidance and service programs
• Quick-response global after-sales support
• Complete spare parts supply for long-term operation
Request a Quotation
Contact us for a customized quotation for the 12000GS Inline Drawer Type Magnetic Filter. Please provide your specific requirements including:
• Application industry and material characteristics
• Required magnetic strength and processing capacity
• Pipeline size, flange type and installation space
• Housing material (SS304/SS316L) requirements
• Working temperature and environmental conditions
• Order quantity and delivery requirements
Our technical and sales team will provide you with a detailed quotation and optimal magnetic filtration solution tailored to your needs.
FAQ
Q: What is the maximum magnetic strength of this drawer filter?
A: Our standard model reaches 12000GS, normal type (N Style) can be customized up to 13000GS.
Q: What materials are used for the filter housing?
A: We use high-quality SS304 or SS316L stainless steel for excellent corrosion resistance and hygiene.
Q: What temperature range can this magnetic filter withstand?
A: Standard working temperature is 80℃, and customized versions can reach up to 350℃.
Q: What's the difference between N Style and E Style?
A: N Style provides higher magnetic strength (13000GS), while E Style features easy cleaning design (9000GS).
Q: Can this drawer filter be customized for my pipeline?
A: Yes, we offer full customization including size, flange type, magnetic rows and materials to match your exact requirements.
