13,000GS Magnetic Bar Filter for Food
Description
Reviews

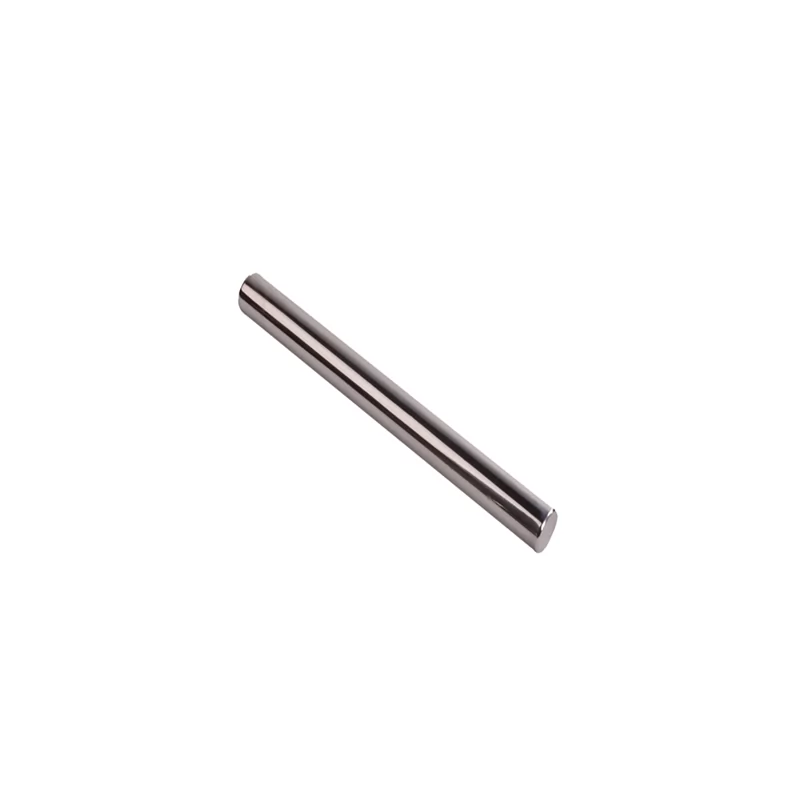

Magnetic bar filter is also named magnetic rod, magnetic bar, bar magnet which is designed to remove small or medium size ferrous tramp metal contaminant from dry and liquid products.It consists of stainless steel tube and rare earth magnets which is wildy used in fields of food,chemical,plastic pharmacy ect.
Fetures:
1. The most common diameter is 1"(25MM), the length can be from 75mm to 2500mm. Other Standard magnetic filter bars include diameter 10, 16, 19, 20, 22, 2325, 28, 32, 38, 50, 76, 100mm.
2.It is equipped with high-energy rare-earth magnets to meet your application. You can build or modify your own magnetic separation equipmenst with individual magnetic filter bars.
3. Magnetic strength ranges from 1500 to1,4000gauss.The magnetic strenth for magnetic bars with ceramic can be more than 2500 Gauss on thetube surfaces while magnetic tubes with neodymium magnets can be more than 14, 000 Gauss. Max working temperature is up to 350 Centigrade degree
4. Fully welded with either flat ends or tapped ends are available to meet your application.
5. Waterproof is available
| Name | Magnetic bar Filter |
| Material | Ndfeb magnet /ferrite magnet/smco magnet |
| Surface treatment | polishing/sandblasting |
| Coating | teflon,tungsten carbide,nitriding |
| Diameter | 10/16/19/20/22/25/28/32/38/50/76/100 |
| Max working Temparature | 350 |
| Housing material | SS304/SS316 |
| Max magnetic strengh | 1,4000GS |
| Monthly Output | 50,000pcs |
| MOQ | 1pc |
| Port | Ningbo |
| Packing | Carton/wood case |
| Lead time |
15days |
Diameter Options
|
Part No |
0.25T |
0.5T |
0.7T |
0.9T |
1T |
1.1T |
1.3T |
|
10 |
EH |
H |
- |
- |
- |
- |
- |
|
16 |
EH |
EH |
EH |
H |
H |
- |
- |
|
19 |
EH |
EH |
EH |
H |
H |
- |
- |
|
20 |
EH |
EH |
EH |
SH |
H |
H |
- |
|
22 |
EH |
EH |
EH |
EH |
EH |
H |
- |
|
23 |
EH |
EH |
EH |
EH |
EH |
H |
- |
|
25 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
28 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
32 |
EH |
EH |
EH |
EH |
EH |
EH |
H |
|
38 |
EH |
EH |
EH |
EH |
UH |
H |
H |
|
50 |
EH |
EH |
EH |
UH |
H |
H |
H |
|
76 |
EH |
EH |
EH |
H |
H |
H |
H |
|
100 |
EH |
EH |
H |
H |
- |
- |
H |
