13000GS Pipeline Magnetic Strainer for Liquid

Product Introduction
Pipeline Magnetic Strainer is known as magnetic trap or magnetic strainer which is used for removing ferrous contamination from liquid or semi-liquid materials. It consists of stainless steel casing and permanent magnets and wildly used in fields of food,chemical,pharmacy etc.
Optional:
Housing material : SS304/SS316 Surface treatment: brushing ,sandblasting, polishing Coating options: salt bath nitriding, Tungsten carbide,PTFE, PFA, ETFE Magnet options: NdfeB / Smco /Ferrite
Contact Us to Get Started

Description

Reviews

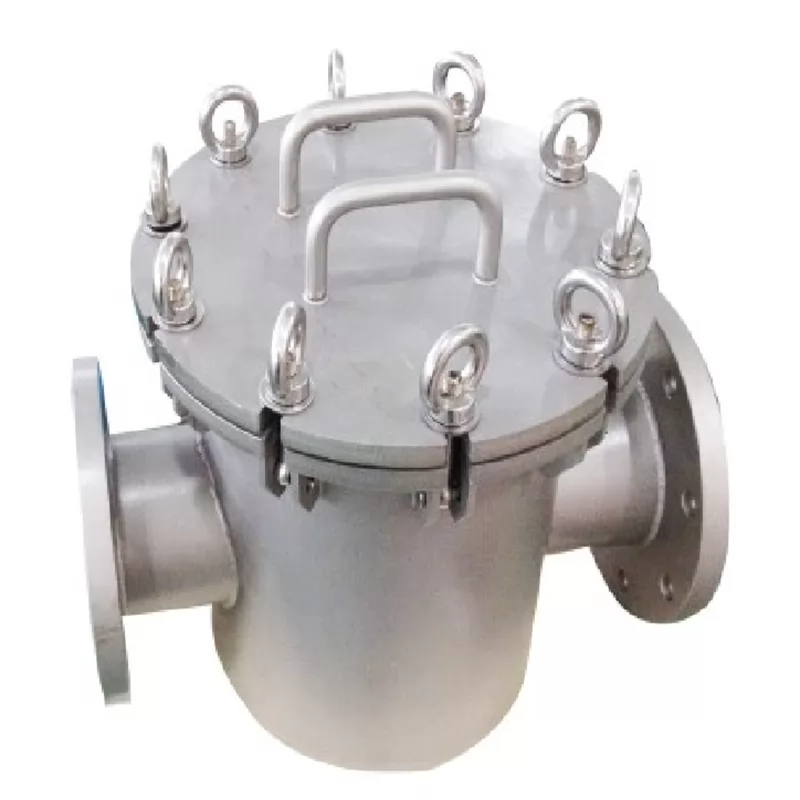

13000GS Pipeline Magnetic Strainer for Liquid

Pipeline Magnetic Strainer is also named as Magnetic Liquid Filters or pipeline magnetic trap which consists of stainless steel casing and permanent magnets and used for removing ferrum contamination form liquid or semi-liquid materials  to keep materials purity and protect the under-stream equipments.

Pipeline Magnetic Strainer



Feartures:

1. Quick Interface Connector is available
2. The maximum magnetic strength can reach 14,000GS
3. Standard working temperature ≤80℃, and maximum working temperature can reach to max 350℃
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available for pipeline material.
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. As required, specification of customer on pressure or other details is also available

Name  Pipeline Magnetic Strainer
Material Ndfeb magnet /ferrite magnet/smco magnet
Surface treatment sandblasting/polishing/brushing
Coating teflon,tungsten carbide
Food grade welding available
Working Temparature 0-350℃
Housing material SS304/SS316
Max magnetic strengh 14,,000GS
Pressure ≤10KGS
MOQ 1pc
Port Ningbo
Packing wood case/carto
Lead time 30days









About Us

Mag-spring was established in 2003 and is located in Ningbo, Zhejiang Province, China. It is a comprehensive manufacturer of magnetic application products, specializing in the research, design and production of magnetic filters and various magnetic application components.

mag mag

magnet manufacturer

The company has a group of professional technicians and production equipment, operates strictly in accordance with the ISO9001 quality system, and continuously strengthens internal management. While the company is constantly developing, it pays attention to environmental protection. It is an ISO14001 certified enterprise, and the company's products meet the requirements of the EU ROHS directive.

Based on the enterprise tenet of "efficiency, perfection, harmony and dedication" and the enterprise slogan of "everything we handle must be excellent", with many years of experience in research, design, manufacturing and sales in the field of magnetic products, the company's products have been recognized by many customers at home and abroad. We will sincerely look forward to cooperating with you with high-quality products, preferential prices and the best services.
