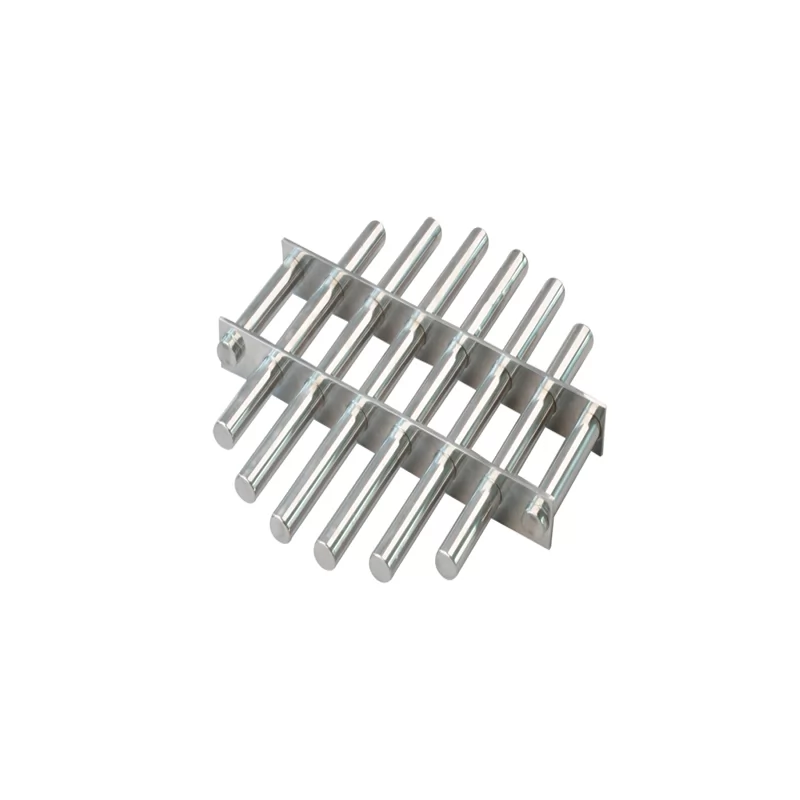

13000GS Grate Magnet
Description
Reviews
Our premium 13000GS Grate Magnet is manufactured with food-grade stainless steel and high-performance rare earth magnets. Designed for easy installation in hoppers, chutes, housings and storage bins, this magnetic grate effectively captures and removes ferrous metal contaminants from bulk materials. It is widely applied in the food processing, plastics, chemical and pharmaceutical industries to ensure product purity and equipment protection.
Key Features of 13000GS Grate Magnet
- Constructed with 304/316L food-grade stainless steel for corrosion resistance and hygienic operation
- Standard design with sturdy stainless steel frame and 25mm diameter high-strength magnetic bars
- Mirror-polished surface meets food and pharmaceutical industry sanitation standards
- Wide operating temperature range from 0℃ to 350℃ for diverse working environments
- Available in Normal (N) and Easy-cleaning (E) styles, with optional angle baffles and support rods
- Powerful 13000 gauss magnetic strength for efficient ferrous particle removal
Product Specifications
| Product Name | 13000GS Grate Magnet |
| Magnet Material | NdFeB Magnet / Ferrite Magnet / SmCo Magnet |
| Surface Treatment | Sandblasting / Polishing |
| Protective Coating | Teflon, Tungsten Carbide |
| Food Grade Welding | Available |
| Working Temperature | 0 - 350℃ |
| Housing Material | SS304 / SS316L Stainless Steel |
| Magnetic Strength | 13000GS (13000 Gauss) |
| Monthly Output | 10,000 PCS |
| MOQ | 1 PC |
| Loading Port | Ningbo Port, China |
| Packaging | Wood Case / Carton Box |
| Lead Time | 20 Days |
Applications
Our 13000GS Grate Magnet is ideal for magnetic separation in free-flowing materials including grains, sugar, plastics, chemicals, and pharmaceutical powders. As a core magnetic separator component, it safeguards production equipment and guarantees final product quality by eliminating iron contaminants.
