14000GS Big Magnetic Trap for Liquid
Description
Reviews
13000GS-14000Gs Inline Magnetic Trap SWFL300/200 named as Magnetic Filters, are designed for removing Ferrum contamination form liquid or semi-liquid materials with different viscosity, to keep materials purity and protect the equipment.
Feartures:
1. Inlet/outlet by firm flange connection.
2. The maximum magnetic strength can reach 14000GS.
3. Standard working temperature 80oC, and maximum working temperature can reach to max 350oC.
4. Easy installation, separation and cleaning through ferrule, bolt plate, flange or uneven head etc.
5. 304 or 316L stainless steel are available for pipeline material.
6. Ideal designed magnetic configuration ensures maximum magnetic effect without liquid flow impediment.
7. As required, specification of customer on pressure or other details is also available.

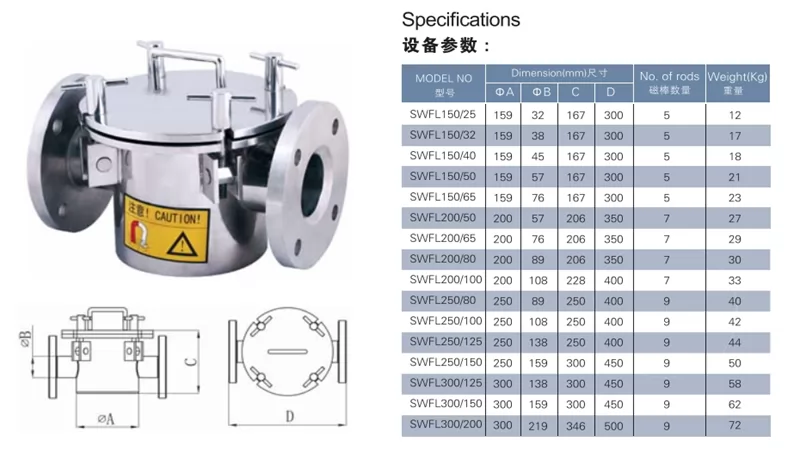

| Name | Magnetic Filters |
| Material | Ndfeb magnet /ferrite magnet/smco magnet |
| Surface treatment | sandblasting/polishing |
| Coating | teflon,tungsten carbide |
| Food grade welding | available |
| Working Temparature | 0-350oC |
| Housing material | SS304/SS316 |
| Max magnetic strengh | 13000GS |
| Pressure | 10KGS |
| MOQ | 1pc |
| Port | Ningbo |
| Packing | wood case/carton |
| Lead time | 30days |
