Ferrite Shallow Pot Magnets SWF2
Description
Reviews
As a leading ferrite pot magnet manufacturer in China, MAG SPRING offers high-performance Ferrite Shallow Pot Magnets (also known as Ferrite Round Base Magnets or Ceramic Shallow Cup Magnets). These economical mounting magnets consist of a strong ferrite magnet encased in a shallow steel cup, providing reliable holding force for mounting, lifting, holding, and fixing objects in construction, engineering, automotive, office, warehouse, and home applications.
Product Overview

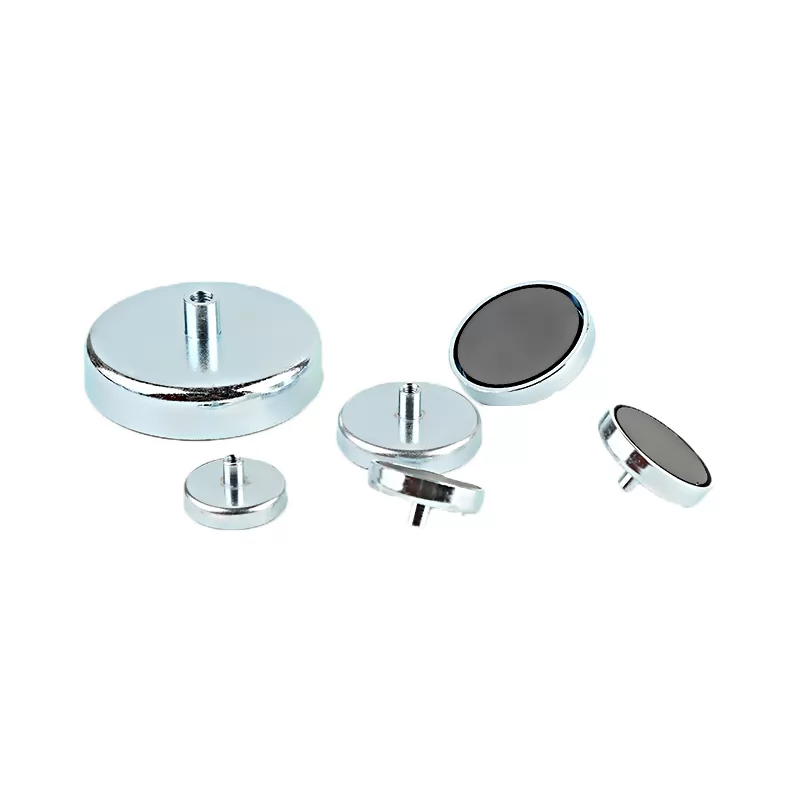

Ferrite Shallow Pot Magnets, also called ferrite base round magnets or ceramic shallow magnets, feature a ferrite (ceramic) magnet housed in a low-profile steel cup. The steel housing concentrates the magnetic force on the exposed face, offering stable holding power in a cost-effective and compact design. They are ideal for applications where space is limited but reliable magnetic fixing is required.
At MAG SPRING, we provide a full range of Ferrite Shallow Pot Magnets with holding forces from 4N to 1300N and various diameters, plus full customization for special sizes and requirements.
Technical Specifications
| MODEL NO | Dimensions(mm) | Weight(g) | Force(N) | ||||
|---|---|---|---|---|---|---|---|
| D | H | d | L | M | |||
| SWF2-10 | 10 | 4.5 | 6 | 11.5 | 3 | 3 | 4 |
| SWF2-13 | 13 | 4.5 | 6 | 11.5 | 3 | 5 | 10 |
| SWF2-16 | 16 | 4.5 | 6 | 11.5 | 3 | 6 | 18 |
| SWF2-20 | 20 | 6 | 6 | 13 | 3 | 11 | 30 |
| SWF2-25 | 25 | 7 | 8 | 15 | 4 | 22 | 40 |
| SWF2-32 | 32 | 7 | 8 | 15 | 4 | 32 | 80 |
| SWF2-36 | 36 | 7.7 | 8 | 16 | 4 | 45 | 100 |
| SWF2-40 | 40 | 8 | 8 | 16.5 | 4 | 60 | 125 |
| SWF2-47 | 47 | 9 | 8 | 17 | 4 | 90 | 180 |
| SWF2-50 | 50 | 10 | 8 | 18.5 | 4 | 110 | 220 |
| SWF2-57 | 57 | 10.5 | 8 | 18.5 | 4 | 145 | 280 |
| SWF2-63 | 63 | 14 | 15 | 30 | 8 | 240 | 350 |
| SWF2-80 | 80 | 18 | 20 | 34 | 10 | 520 | 600 |
| SWF2-100 | 100 | 22 | 22 | 43 | 12 | 940 | 900 |
| SWF2-125 | 125 | 26 | 25 | 50 | 14 | 1720 | 1300 |
Protective Coatings
To improve corrosion resistance and extend service life, our Ferrite Shallow Pot Magnets support a variety of surface treatments:
- Zn (Zinc): Cost-effective protection for general environments
- Ni (Nickel): Bright finish with good corrosion resistance
- Cr (Chrome): Additional decorative and protective layer
- Painting: Suitable for humid or decorative applications
- Custom Coatings: Available based on customer special requirements
Applications
Ferrite Shallow Pot Magnets are widely used for:
- Construction and Engineering: Fixing signs, panels, or equipment
- Automotive and Machinery: Mounting components in limited space
- Metalworking and Mechanical Plants: Tool holders and fixtures
- Office, Home, and Warehouse: Hanging tools, displays, or organizers
- Retail and Displays: Secure signage and point-of-sale fixtures
Advantages
- Cost-effective ferrite magnet with stable holding force (4–1300N)
- Shallow / low-profile design ideal for space-limited applications
- Steel cup concentrates magnetic force and protects the magnet
- Customizable sizes, holding force, and coatings
- Excellent value for money compared to neodymium alternatives
- Low MOQ and flexible production for prototypes and bulk orders
- RoHS compliant and environmentally friendly
Production and Delivery
- Production Lead Time: 7–35 days (standard 30 days)
- Minimum Order Quantity: 50 pieces (samples available)
- Packaging: Standard export brown carton or wooden case
- Custom Packaging: Available based on customer requirements
- Logistics: Reliable global shipping via Ningbo or Shanghai ports
- Payment Terms: T/T
- Customized Service: Tailored dimensions and holding force supported
Quality and Compliance
Our Ferrite Shallow Pot Magnets are produced under strict quality control systems to ensure stable performance and high consistency:
- Precision machining and dimension control
- Magnetic holding force testing and verification
- Coating quality inspection for corrosion resistance
- Full compliance with EU RoHS environmental standards
Certifications & Compliance
- ISO9001 Quality Management System Certified
- ISO14001 Environmental Management System Certified
- Products fully comply with EU RoHS Directive
FAQs
Q: What materials are your Ferrite Shallow Pot Magnets made of?
A: High-quality ferrite (ceramic) magnets encased in a shallow steel cup.
Q: Can you customize the size and holding force?
A: Yes, we provide custom diameters, heights, and specifications to match your application.
Q: What is the MOQ and lead time?
A: MOQ is 50 pieces; samples are available. Lead time is normally 7 to 35 days.
Q: Are they suitable for outdoor use?
A: Yes, with Zn, Ni, or Painting coatings, they offer good corrosion resistance for indoor and outdoor environments.
