Neodymium Channel Magnet
Description
Reviews
As a leading Neodymium Channel Magnet manufacturer in China, MAG SPRING provides high-performance U-Shape Channel Magnets. Our channel magnet is constructed with a super strong neodymium bar magnet embedded in a heavy-duty steel channel housing, offering enhanced magnetic force, excellent protection and reliable holding performance for various industrial and daily applications.
Product Overview

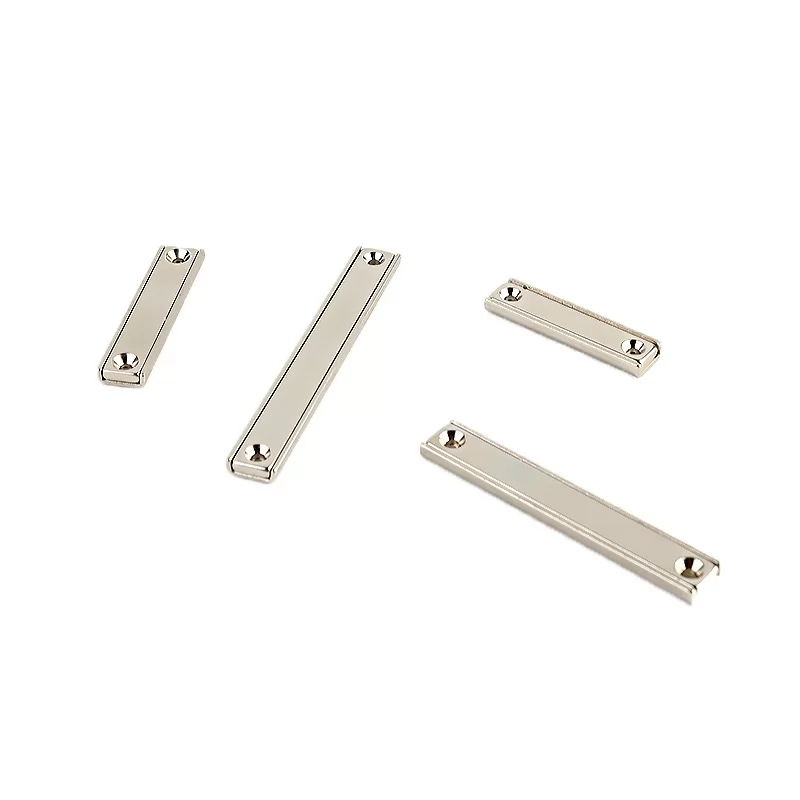

Neodymium Channel Magnet consists of a super strong neodymium bar magnet embedded in a U-shaped steel channel. The steel channel structure effectively concentrates magnetic force onto one large surface, significantly improving overall holding power. Meanwhile, it fully protects the internal neodymium magnet from impact, collision and abrasion damage, greatly extending service life. This channel magnet is widely used for holding and fixing door latches, tools, knives, workshop equipment, kitchen utensils and other daily or industrial objects.

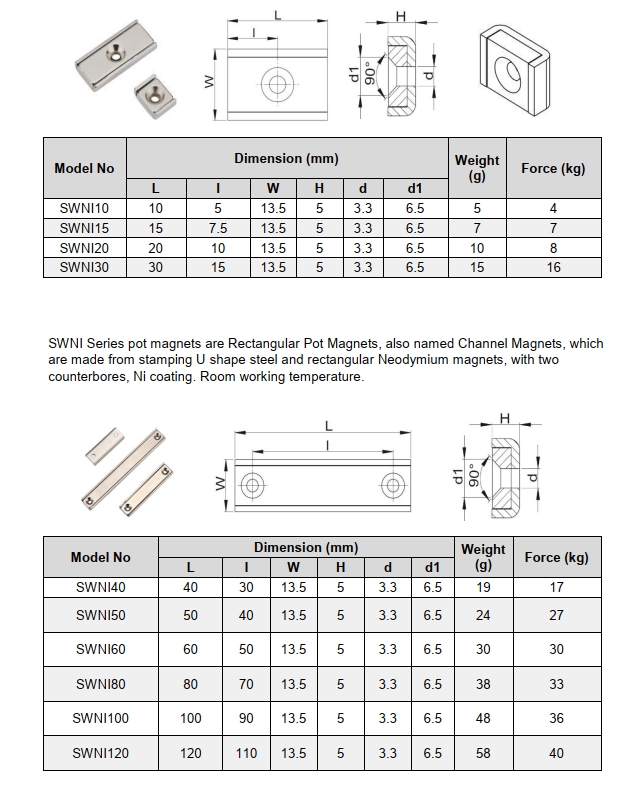

Technical Specifications
- Product Type: Neodymium Channel Magnet / U-Shape Steel Channel Magnet
- Magnet Material: High-performance NdFeB (Neodymium-Iron-Boron)
- Housing Material: Heavy-duty steel channel
- Surface Coating: Zn, Ni, Cr, Ni-Cu-Ni optional
- Holding Force: 4 – 16 KG
- Sample Service: Available for testing and validation
- MOQ: 50 pieces
- Lead Time: 35 days
- Packaging: Standard brown carton / export wooden case
- Payment Term: T/T
- Loading Port: Ningbo / Shanghai
Key Features
- U-shaped steel housing concentrates magnetic flux, boosts holding force
- Full protection for inner neodymium magnet, prevents breakage and wear
- Multiple surface coatings: Zn, Ni, Cr, Ni-Cu-Ni for corrosion resistance
- Stable holding force from 4KG to 16KG meets different fixing needs
- Easy installation, no drilling or permanent fixing required
- Durable steel structure for long-term indoor & outdoor use
- Compact and lightweight, convenient for placement and relocation
- RoHS compliant, safe for household and industrial environments
Main Applications
Neodymium Channel Magnets are widely used in holding, fixing and latching applications:
- Door & cabinet latches, window locks, gate closing systems
- Workshop tool storage, knife holders, equipment organization
- Kitchen appliance fixing, utensil hanging, hardware storage
- Industrial jig & fixture positioning, assembly line holding
- Office document fixing, metal object storage and positioning
- Household daily storage, garage equipment hanging and fixing
Surface Coating Options
- Zinc (Zn): Economical anti-corrosion for general indoor environments
- Nickel (Ni): Smooth surface, good wear and corrosion resistance
- Chromium (Cr): High hardness, excellent scratch and rust resistance
- Ni-Cu-Ni: Multi-layer composite coating, superior anti-corrosion performance
Production & Delivery
- Production Lead Time: 35 days for standard and customized orders
- Minimum Order Quantity: 50 pieces for bulk production
- Packaging: Standard carton for small orders, wooden case for large batches
- Logistics: Fast and convenient shipment from Ningbo or Shanghai port
- Custom Service: Custom size, holding force and coating available upon request
Quality & Compliance
Each Neodymium Channel Magnet passes strict quality inspection:
- 100% holding force testing before delivery
- Steel channel structure strength and stability verification
- Coating adhesion and corrosion resistance testing
- Magnets performance and durability assessment
- Full compliance with EU RoHS environmental protection standards
Certifications & Compliance
- ISO9001 Quality Management System Certified
- ISO14001 Environmental Management System Certified
- Products fully comply with EU RoHS Directive
FAQs
Q: What is the structure of the Neodymium Channel Magnet?
A: It is composed of a high-strength neodymium bar magnet embedded in a U-shaped steel channel.
Q: What is the holding force range of channel magnets?
A: Holding force ranges from 4KG to 16KG to meet different holding and fixing requirements.
Q: What surface coatings are available?
A: Zn, Ni, Cr and Ni-Cu-Ni coatings are optional for different environments.
Q: Are samples available before bulk orders?
A: Yes, samples are provided for performance testing and validation.
About Us
MAG SPRING was founded in 2003 and located in Ningbo, Zhejiang, China. We are a professional manufacturer of magnetic application products, specializing in the R&D, design and production of Neodymium Channel Magnets, pot magnets, magnetic hooks, magnetic filters and various custom magnetic components.
The company has professional technical teams and advanced production equipment, operating strictly in accordance with the ISO9001 quality management system. We also focus on environmental protection and hold ISO14001 certification. All our products meet EU RoHS requirements.
Adhering to the enterprise tenet of "Efficiency, Perfection, Harmony and Dedication" and the slogan "Everything We Handle Must Be Excellent", MAG SPRING has rich experience in magnet R&D, production and sales. Our products are widely recognized by customers worldwide. We look forward to cooperating with you with high-quality products, competitive prices and professional services.
