Neodymium Pot Magnets with Countersunk SWNA Series
Description
Reviews

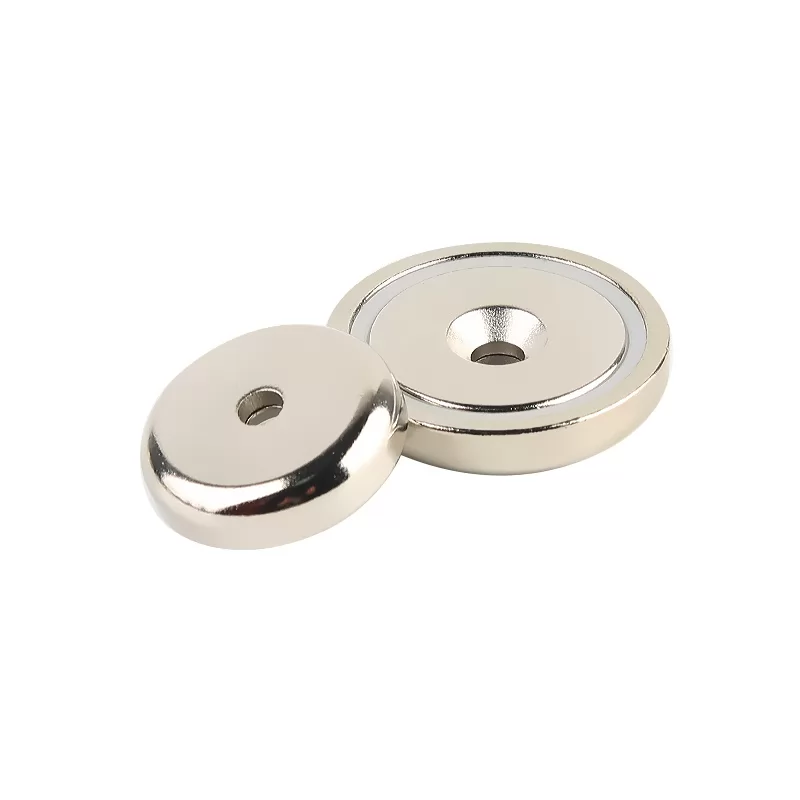

Countersunk Pot Magnet SWNA series??s steel cup is made by punching,the magnet have a Counterbore. As one kind of Neodymium Pot Magnets, Countersunk Pot Magnet is used for mounting, lifting, holding, fixing and transferring objects ?in the field of construction, engineering, automotive, etc or in the place of office, family, warehouse,metalworking plants, mechanical engineering plants etc.??
1.Standard Coating: Zn coating. ,Ni,Cr,Painting also available if needed;
2.Holding force:2.5-480Kg;
3.Magnet materials : NdFeB Magnets;
4.Custom made :available;
5.Sample: available;
6.MOQ:50PC;
7.Lead time:35days;
8.Packing:standard brown carton/wood case;
9.Payment term: T/T;
10.Loading Port:Ning Bo/Shang Hai;
SWNA Series countersunk pot magnets sketch
If you need cheaper price pot magnets, Ferrite Countersunk pot magnets are also available.?
| Model | D?(mm) | d?(mm) | d1?(mm) | H?(mm) | Weight?(g) | Magnetic strength?(kg) |
| SWNA12 | 12 | 3.5 | 6.5 | 4.5 | 4 | 2.5 |
| SWNA16 | 16 | 3.5 | 6.5 | 5 | 7 | 6 |
| SWNA20 | 20 | 4.5 | 8.6 | 7 | 14 | 11 |
| SWNA25 | 25 | 5.5 | 10.6 | 8 | 25 | 22 |
| SWNA32 | 32 | 5.5 | 10.6 | 8 | 42 | 32 |
| SWNA36 | 36 | 6.5 | 11.3 | 8 | 54 | 43 |
| SWNA42 | 42 | 6.5 | 11.3 | 8.6 | 78 | 65 |
| SWNA48 | 48 | 8.5 | 15.5 | 11 | 138 | 75 |
| SWNA55 | 55 | 8.5 | 14.5 | 12 | 205 | 95 |
| SWNA60 | 60 | 8.5 | 14.5 | 15 | 305 | 160 |
| SWNA70 | 70 | 10.5 | 16.5 | 17 | 485 | 210 |
| SWNA75 | 75 | 10.5 | 16.5 | 18 | 560 | 250 |
| SWNA80 | 80 | 10.5 | 16.5 | 18 | 668 | 300 |
| SWNA90 | 90 | 10.5 | 16.5 | 18 | 850 | 380 |
| SWNA120 | 120 | 12.5 | 22.5 | 18 | 1520 | 480 |
*The force of product in these neodymium pot magnets? have been determined at room temperature on a plate in polished steel (Q235B) with a thickness of 10 mm (80mm/min). A maximum deviation of -10% compared to the specified value is possible in exceptional cases. Value is exceeded in general. Depending on the type of application (installation situation, temperatures, counter anchor etc.) the forces can be influenced enormously. The indicated values are? serving as an orientation. Please get advice and help from our experts.
*Handling Neodymium pot magnets
The magnet??s attracting and repelling forces represent a potential safety hazard. Magnets can attract and repel even at great distances - thus representing a risk of injury.Processing of magnets:
Sintered magnets are hard, brittle and, when they collide, break apart into sharp-edged pieces. Any type of collision should be avoided at all times. The powerful attractive forces of the magnet can crush one??s skin, so work only when wearing suitable protective clothing!
Magnet applications:
Magnets may not be installed in potentially explosive environments because it could cause sparking.
Strong magnetic fields may affect electrical or electronic devices. This is also true of pacemakers.
We are not aware of any adverse affects to the human body as a result of exposure to magnetic fields.
Shipping of magnets:
Magnets are not classified as hazardous goods when shipped by road or sea. For air shipments, please refer to the packaging regulations for hazardous goods No. 953 of the IATA (Inteational Air Transport Association).
When shipping via parcel services, magnets can lead to problems if not packaged properly. For example, this could affect goods (electronic devices, chip cards) in other parcels or the sorting equipment of the parcel service. The parcel could also become attached to metallic objects during transport.
Mag? Spring can supply 57 standards pot magnets, magnetic hook, pin magnets and magnetic clip ,please email to us if you need our full item catalog .
