NdFeB Pot Magnets
Contact Us to Get Started
Neodymium Shallow Pot Magnet with Zn Coating
Product Introduction
Pot magnets are also named magnetic holders, cup magnets,magnetic hooks,hook magnets or magnetic po which?are widely used for? fixing,holding,mounting, lifting and transferring objects useful in the field of construction, engineering, automotive, etc or in the place of office,family,watehouse etc.
Contact Us to Get Started
Description
Reviews

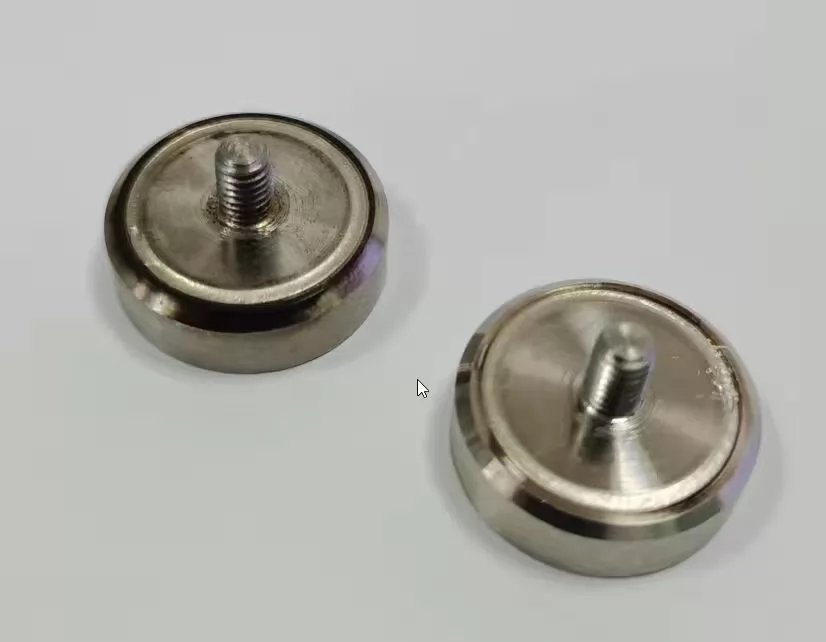

SWN6 Series Shallow Pot Magnet are made from lathing steel cup and Neodymium magnets with? Zn coating, counterbore and room working temp.
Pot Magnets?are best for small sized magnetic products with maximum pull strength. There are many applications for magnetic hook mainly in applications where a strong clamping force is required. Applications include point of sale, window dressing, door and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.
Features
- Simple structure properly designed with maximized magnetic force,
saving cost.
2. Magnets can be NdFeB, SmCo, ALNICO, Ferrite, etc.
3. Custom made is available for other special requests.
4.Production?time:30?Days(According?to?Quantity)
5.MOQ: 50pc
6.Packing: Standard packing for air or sea shipment according to requirement.
| MODEL NO | Dimensions(mm) | Weight(g) | Force (kg) | |||
| D | H | d1 | d2 | |||
| SWN6-16 | 16 | 4.5 | 3.5 | 6.6 | 5.7 | 7.65 |
| SWN6-20 | 20 | 6 | 4.5 | 9 | 12.5 | 10.7 |
| SWN6-25 | 25 | 7 | 4.5 | 9 | 25 | 16.3 |
| SWN6-32 | 32 | 7 | 5.5 | 11 | 38.5 | 31.6 |
