Neodymium magnets with mounting hole
Description
Reviews
Neodymium magnets with mounting hole STP Series rubber covered pot magnets are made from NdFeB magnets and steel cup, Rubber covered, a female thread. Room working temperature. These rare earth magnets with mounting holes are best for small sized magnetic products with maximum pull strength. There are many applications for magnetic hook mainly in applications where a strong clamping force is required. Applications include point of sale, window dressing, door and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.?
Features
1. Simple structure properly designed with maximized magnetic force,
saving cost.
2. Magnets can be NdFeB, SmCo, ALNICO, Ferrite, etc.
3. Custom made is available for other special requests.
4.Production?time:30?Days(According?to?Quantity)
5.MOQ: 50pc
6.Packing: Standard packing for air or sea shipment according to requirement.
Model No | Dimension (mm) | Weight (g) | Force (kg) | ||
D | H | M | |||
STP22 | 22 | 6 | M4 | 11 | 4 |
STP34 | 34 | 8 | M4 | 20 | 6 |
STP43 | 43 | 6 | M4 | 29 | 8 |
STP66 | 66 | 8 | M6 | 100 | 20 |
STP88 | 88 | 8.5 | M8 | 186 | 42 |

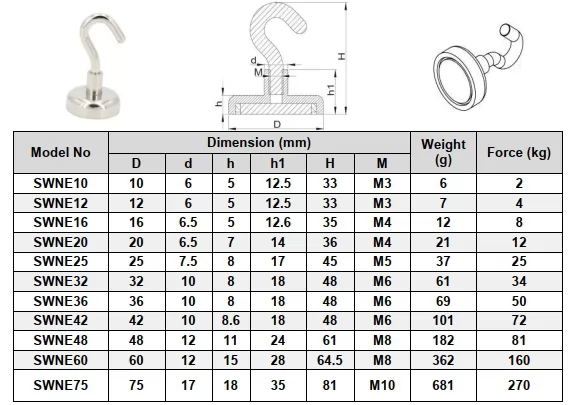

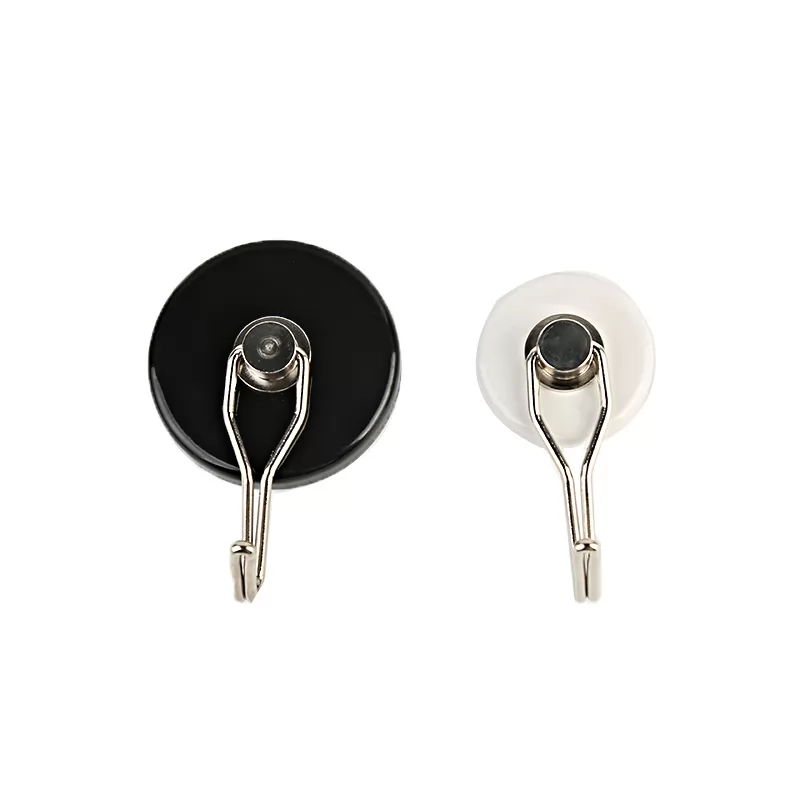

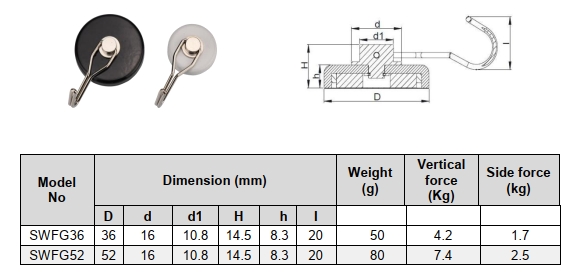

we can supply more other? neodymium mounting magnets as followed :
