Pot magnet (NdFeB) with carabiner
Description
Reviews

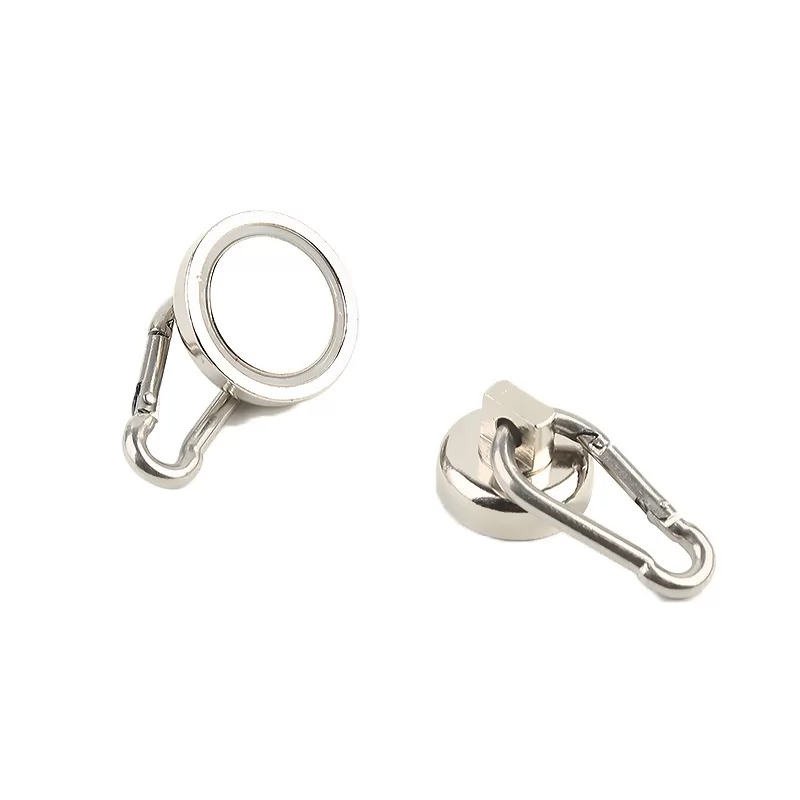

Magnetic carabiner hook??also named carabiner magnet or carabiner magnetic hooks.They are made from Neodymium magnets,steel cup and rotation carabiner with ni coating ,? ?which are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mild steel surfaces). The actual pull force achieved is dependent on the surface that is being clamped onto (material type, thickness, flatness, friction levels, etc), its quality (e.g. rust free), its size (thickness plus total surface area), etc.
Magnetic carabiner hook is? ideal for holding signage, tools, ropes and more. There are other many applications for carabiner magnetic hooks, mainly in applications where a strong clamping force is required. Applications include Point of Sale, window dressing, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, etc.?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

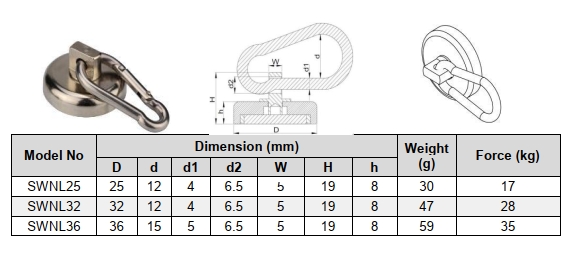

Model No | Dimension (mm) | Weight (g) | Force (kg) | ||||||
D | d | d1 | d2 | W | H | h | |||
SWNL25 | 25 | 12 | 4 | 6.5 | 5 | 19 | 8 | 30 | 17 |
SWNL32 | 32 | 12 | 4 | 6.5 | 5 | 19 | 8 | 47 | 28 |
SWNL36 | 36 | 15 | 5 | 6.5 | 5 | 19 | 8 | 59 | 35 |
More Pot Magnets
What is pot magnet? please click here.?
There are?Neodymium Pot Magnets,?Ferrite Pot Magnets, SmCo Pot Magnets and?AlniCo pot Magnets made from different permanent magnets.
