Magnetic Plate

Chute Plate Magnet

Product Introduction

The Chute Plate Magnet is installed over the flow chutes or conveyor belts to remove ferrous tramps from the low-density product flow and prevent the downstream process machine from being destroyed

Optional:

Housing material : SS304/SS316 Surface treatment: brushing ,sandblasting, polishing Coating options: Tungsten carbide,PTFE, PFA, ETFE Magnet options: NdfeB / Smco /Ferrite

Description

Reviews

The Chute Plate Magnet is installed over the flow chutes or conveyor belts to remove ferrous tramps from the low-density product flow and prevent the downstream process machine from being destroyed which is wildly used in fields of food,agriculture,plastic etc.It also can be designed into magnetic sheet separator or magnetic metal sheet separator to separates the sheets for destacking steel sheet stock

1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :1500-10000GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Samarium-Cobalt (rare-earth), Ceramic , Neodymium-Iron-Boron(rare-earth)
6.Food grade welding: availble
7.Custom made :available.your logo/brand/patte can be printed on
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:standard brown carton/wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai

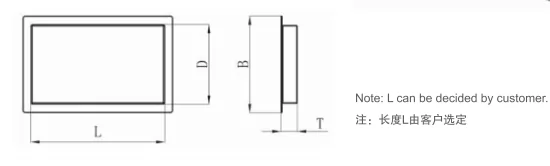

plate magnet

MODEL NO	Dimension(mm)			Weight(Kg)
MODEL NO	B	D	T	Weight(Kg)
SWFMP-FF60	250	175	51	5.7
SWFMP-FF120	300	225	76	10.4
SWFMP-FF150	450	360	111	19.1
SWNMP-FF60	190	125	36	3.7
SWNMP-FF120	250	175	46	5.9
SWNMP-FF150	330	240	56	10.3

Magnets
