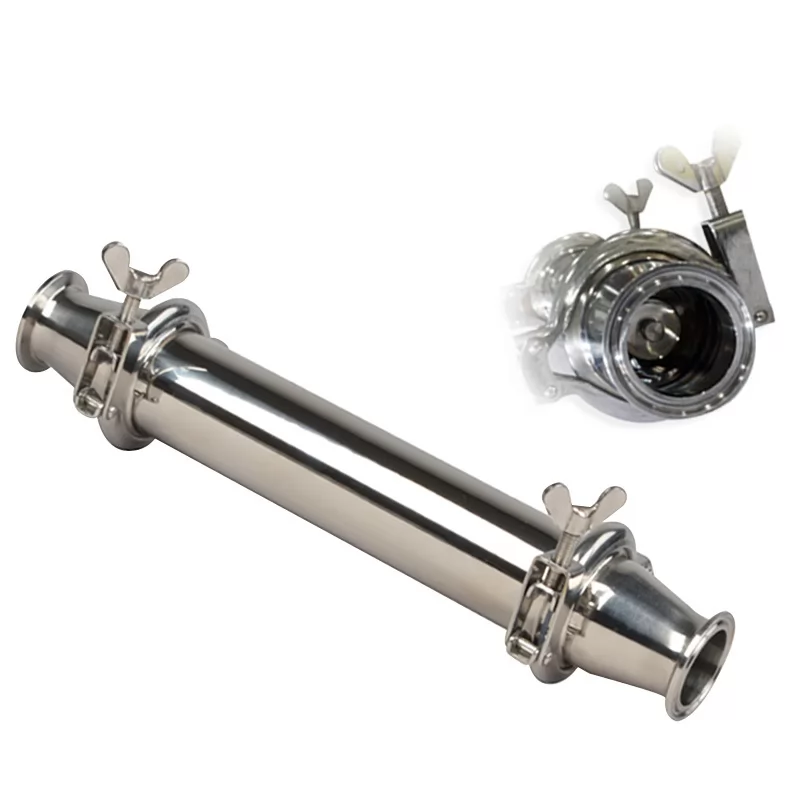

Magnetic Liquid Trap with Clamp
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the Magnetic Liquid Trap with Clamp, also known as Magnetic Liquid Filter or Pipeline Magnetic Trap. This hygienic liquid filtration device is composed of food-grade stainless steel casing, high-performance permanent magnets, and a quick-install tri-clamp structure, designed for efficient removal of ferromagnetic contaminants from liquid and semi-liquid materials.
The tri-clamp connection enables fast installation, disassembly, and cleaning, making it ideal for food, beverage, pharmaceutical, and chemical pipeline systems. It effectively ensures material purity and protects downstream processing equipment from iron particle damage, providing reliable and stable magnetic filtration performance for continuous production lines.
Key Features & Benefits
- Standard tri-clamp connection for quick installation, disassembly, and maintenance.
- Food-grade stainless steel construction for hygiene, corrosion resistance, and long service life.
- Multiple surface treatment options: sand blasting, polishing, and brushing to meet sanitary standards.
- Adjustable magnetic intensity ranges from 1500GS up to 14,000GS for high-efficiency iron removal.
- Wide working temperature range: from -20℃ to 350℃ for various liquid applications.
- Multiple magnet material options: Neodymium-Iron-Boron, Samarium-Cobalt, and Ceramic magnets.
- Food grade welding available for strict hygienic production requirements.
- Full customization service: custom size, logo, brand, and pattern can be customized.
- Low MOQ: 1 piece for prototype and small-batch orders.
- Standard lead time: 30 days for mass production.
- Secure export packing: standard wooden case for transportation protection.
- Flexible payment terms: T/T available for international orders.
- Convenient loading ports: Ningbo Port and Shanghai Port available.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Magnetic Liquid Trap with Clamp |
| Connection | Tri-Clamp Quick Connection |
| Surface Treatment | Polishing / Sand Blasting / Brushing |
| Magnetic Strength | 1500GS - 14,000GS |
| Working Temperature | -20℃ - 350℃ |
| Magnet Material | NdFeB / SmCo / Ceramic |
| Food Grade Welding | Available |
| Customization | Logo, Brand, Size, Structure Available |
| MOQ | 1 Piece |
| Lead Time | 30 Days |
| Packing | Wooden Case |
| Payment Term | T/T |
| Loading Port | Ningbo / Shanghai |

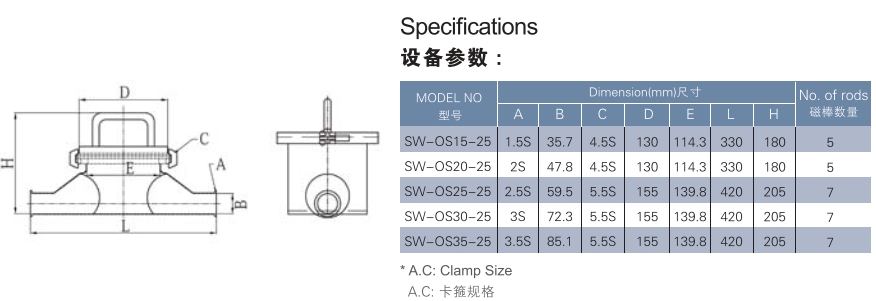

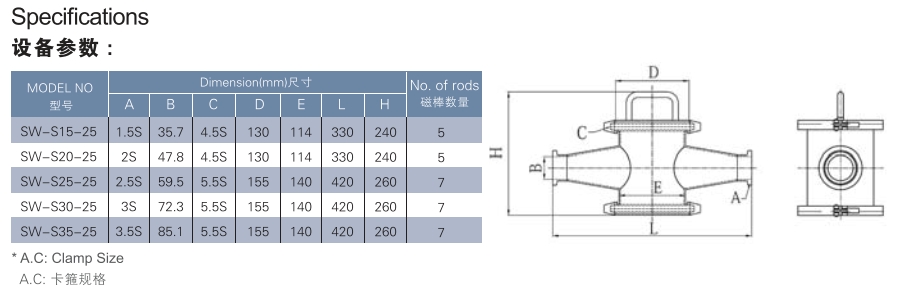

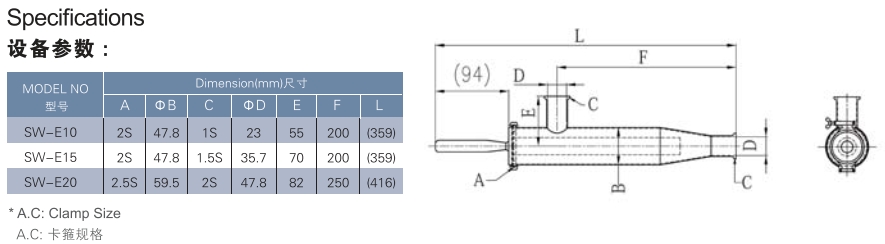

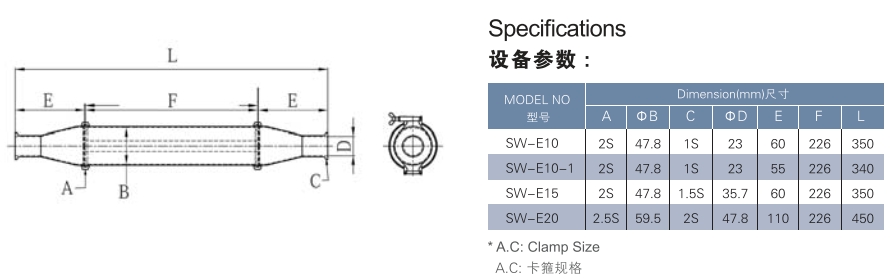

Available Models & Structure Options
Our Magnetic Liquid Trap with Clamp provides a full range of standard and customized models with various tri-clamp sizes, magnetic rod quantities, and flow rate configurations. All models adopt a hygienic and quick-install structure, suitable for food, beverage, pharmaceutical, and chemical pipeline systems.
Applications & Industry Use Cases
The Magnetic Liquid Trap with Clamp is widely used for liquid and semi-liquid filtration across multiple hygienic industries:
• Food & Beverage Industry: Juice, milk, syrup, beer, wine, and edible oil filtration
• Pharmaceutical Industry: Medical liquid, syrup, and oral liquid purification
• Chemical Industry: Liquid solution, slurry, adhesive, and coating filtration
• Cosmetics, daily chemicals, and other hygienic liquid processing industries
Customization Services
We provide comprehensive customization services for Magnetic Liquid Trap with Clamp:
• Custom tri-clamp size, pipeline diameter, and installation structure
• Custom magnetic strength and temperature resistance configuration
• SS304 / SS316L material selection for hygienic applications
• Custom logo, brand, and surface treatment
• Sanitary and food-grade welding and polishing
• High-pressure and high-temperature resistant design
Certifications & Compliance
Our Magnetic Liquid Traps meet international industrial and food safety standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• CE certification for mechanical safety standards
• Food-grade material and hygiene certification
Warranty & After-Sales Support
We provide comprehensive warranty and support services for Magnetic Liquid Traps:
• Standard manufacturer warranty covering magnetic performance and structure
• Professional technical support for installation and commissioning
• Custom design and pipeline matching guidance
• Long-term magnetic performance maintenance services
• Quick-response global after-sales support
• Complete spare parts supply
Request a Quotation
Contact us for a customized quotation for the Magnetic Liquid Trap with Clamp. Please provide your specific requirements including:
• Liquid type, flow rate, and working temperature
• Pipeline size, tri-clamp specification, and installation space
• Magnetic strength and hygiene level requirements
• Working pressure and material characteristics
• Order quantity and delivery requirements
Our technical team will provide the most suitable hygienic pipeline magnetic filtration solution and detailed quotation.
FAQ
Q: What is the advantage of tri-clamp connection?
A: Tri-clamp enables quick installation, disassembly, and cleaning, very suitable for hygienic pipeline systems.
Q: Is this magnetic liquid trap food-grade safe?
A: Yes, we provide SS316L material and food-grade welding for food & pharmaceutical use.
Q: What is the working temperature range?
A: It can work stably from -20℃ to 350℃ to meet different application environments.
Q: Can we customize the size and magnetic strength?
A: Yes, we provide full customization of dimensions, magnetic strength, logo, and structure.
Q: What materials is it suitable for?
A: It is designed for liquid and semi-liquid materials in food, beverage, pharmacy, and chemical industries.
