Eddy Current Magnetic Separator
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the Eddy Current Magnetic Separator, a high-efficiency non-ferrous metal sorting solution designed for automatic separation of non-ferrous metals from non-metallic materials. This advanced eddy current separator consists of a high-performance magnetic pulley, short belt conveyor, drive motor and robust steel frame, delivering reliable non-ferrous metal recovery for various recycling and industrial applications.
The core magnetic pulley generates a high-speed alternating magnetic field through its internal strong magnetic system, inducing eddy currents in non-ferrous metals that create repulsive forces, effectively ejecting non-ferrous metals from the material flow. It is widely used in waste recycling, mineral processing, plastic purification and metal recovery industries.
Key Features & Benefits
- Automatically separates non-ferrous metals from non-metallic materials with high efficiency.
- Simple structure design for easy assembly, installation and commissioning.
- Adjustable parameters for different material types to achieve optimal separation performance.

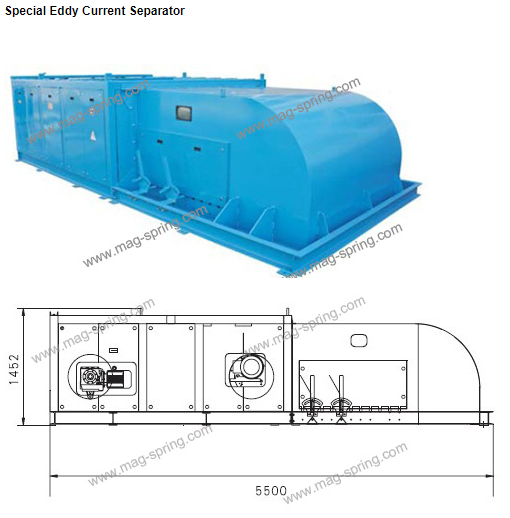

- Available in common and special series with multiple belt width options.
- Excellent separation performance for materials over 4mm with vibrating feeder feeding.
- High-strength magnetic pulley system ensures stable and long-lasting magnetic field.
- Heavy-duty steel frame construction for durable industrial operation.
- Low maintenance requirements and cost-effective operation.
- Wide applicability for various waste processing and material recovery scenarios.
- Compact design suitable for integration into existing production lines.
Technical Specifications
| Model No | Belt Width Adaptive(mm) | Motor Power(kw) | Handling Capacity(m3/h) | Outline Dimensions A*B*C(mm) | Weight(kg) |
|---|---|---|---|---|---|
| LECS-60s | 650 | 4.0 | 6.0 | 2250*1750*1075 | 1100 |
| LECS-80s | 800 | 5.5 | 7.5 | 2360*1960*1110 | 1200 |
| LECS-100s | 1000 | 5.5 | 9.0 | 2470*2200*1140 | 1400 |
| LECS-120s | 1200 | 7.5 | 12.0 | 2560*2450*1180 | 1500 |
| LECS-150s | 1500 | 7.5 | 13.5 | 2650*2750*1215 | 1700 |
| LECS-180s | 1800 | 11.0 | 18.0 | 2740*3150*1245 | 1900 |
| LECS-200s | 2000 | 11.0 | 20.5 | 2850*3350*1270 | 2000 |
Available Models & Power Options
Our Eddy Current Magnetic Separator is available in 7 standard models from LECS-60s to LECS-200s, with belt widths ranging from 650mm to 2000mm to meet different processing capacity requirements. All models feature a high-speed alternating magnetic pulley system and durable conveyor belt design. The adjustable operating parameters allow optimization for various non-ferrous metal separation applications, with processing capacities from 6.0 m³/h up to 20.5 m³/h.
Applications & Industry Use Cases
The Eddy Current Magnetic Separator is ideal for non-ferrous metal separation across demanding industries:
• Glass Recycling Industry: Removal of aluminium caps from glass waste
• Wood Recycling Industry: Removal of brass rivets and hinges
• Waste Incineration Plants: Separation of non-ferrous metals from slag
• Scrap & E-waste Processing: Recovery of non-ferrous metals from waste
• Plastic Recycling: Impurity removal to protect injection moulding machines
• Mining & Mineral Industry: Clean-up of mineral streams and metal recovery
• Metal Casting Industry: Recovery of casting residues and non-ferrous metals
Important Operation Advice
For optimal performance and equipment protection, we recommend the following configuration:
• Overband Magnetic Separator, Magnetic Head Pulley and Magnetic Drum should be installed prior to the eddy current separator
• This equipment is NOT designed for ferrous metal separation. Install at least two stages of magnetic separation equipment to remove ferrous metals before materials enter the eddy current system to prevent serious equipment damage
Customization Services
We provide comprehensive customization services for our Eddy Current Magnetic Separators:
• Custom belt widths and dimensions to match existing production lines
• Tailored magnetic field strength and pulley speed for specific materials
• Specialized feeding systems and vibrating feeder integration
• Wear-resistant and corrosion-resistant configuration options
• Complete turn-key solutions including installation and commissioning
• Automated control system integration for full production line automation
Certifications & Compliance
Our Eddy Current Magnetic Separators meet international industrial standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• CE certification for industrial safety standards
• Strict quality testing for durable industrial applications
Warranty & After-Sales Support
We provide comprehensive warranty and support services for eddy current separators:
• Standard manufacturer warranty covering all components
• Professional technical support for installation and commissioning
• Operator training and detailed operation documentation
• Regular maintenance guidance and service programs
• Quick-response global after-sales support
• Complete spare parts supply for long-term operation
Request a Quotation
Contact us for a customized quotation for the Eddy Current Magnetic Separator. Please provide your specific requirements including:
• Application industry and material characteristics
• Required processing capacity and material size
• Non-ferrous metal types to be separated
• Installation space and environmental conditions
• Automation and control system requirements
• Order quantity and delivery requirements
Our technical and sales team will provide you with a detailed quotation and optimal separation solution tailored to your needs.
FAQ
Q: What materials can the Eddy Current Magnetic Separator process?
A: It efficiently separates non-ferrous metals (aluminum, copper, brass, etc.) from non-metallic materials, with optimal performance for materials larger than 4mm.
Q: Do I need to install other magnetic separators before this machine?
A: Yes, ferrous magnetic separators must be installed first to remove iron materials, otherwise the eddy current separator may be damaged.
Q: Is the machine easy to install and operate?
A: Yes, it features a simple structure for easy assembly, and adjustable parameters make it suitable for different material types.
Q: What is the working principle of this separator?
A: The high-speed rotating magnetic pulley generates an alternating magnetic field, which induces eddy currents in non-ferrous metals and repels them from the material flow.
Q: Can this machine be customized for my production line?
A: Yes, we offer full customization including size, magnetic system, feeding system and control system to meet your exact requirements.
