20,000GS Electro Magnetic Separator
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the 20,000GS Electro Magnetic Separator, a high-performance industrial magnetic separation solution designed for ultra-fine ferrous particle removal. This advanced electromagnetic separator delivers an exceptional magnetic field strength of up to 20,000GS, enabling efficient extraction of micron-sized magnetic contaminants from various materials.
Featuring a sophisticated oil-water cooling circulation system and intelligent PLC control, this separator ensures stable operation, uniform magnetic field distribution, and outstanding de-ironing performance. It is widely applied in industries requiring high-purity material processing, effectively protecting downstream production equipment and significantly improving final product quality.
Key Features & Benefits
- Lower power consumption, well distributed and strong magnetism, high stability and excellent performance of de-ferrous.
- Remove magnetic substances with size of micron by magnetized screen.
- The vibrators with symmetrical arrangement to promote magnetized oscillate for better flow of materials.
- Oil-water pumping circulation promote better cooling performance; oil and water piping with stainless steels make the system clean and maintenance-free.
- Damping are fitted to eliminate components vibration not desired, therefore have lower noise.
- Minimal loss rate of materials, and free-pollution.
- Furnished with particular control cabinet(>IP44). PLC built-in and Touch Panel can make the operation easier and safer, and the automatic cycle can be well fulfilled.
- Timing sets can be adjusted via Touch Panel as different material and different working conditions.
- Battery limits/interfaces are easily identified by professional engineering arrangement.
- The ergonomics design help the handy operation and maintenance efficiently, excellent safety precaution.

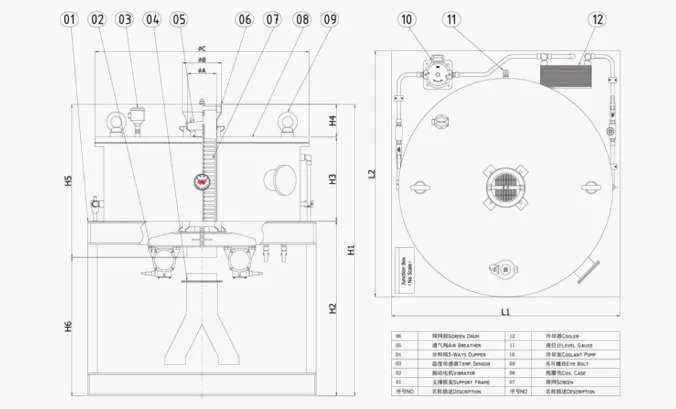

Technical Specifications
| ΦA | ΦB | ΦC | H1 | H2 | H3 | H4 | H5 | H6 | |
|---|---|---|---|---|---|---|---|---|---|
| MES-150-D | 160 | 220 | 1200 | 1620 | 960 | 460 | 200 | 860 | 760 |
| MES-250-D | 265 | 324 | 1300 | 1630 | 960 | 460 | 210 | 870 | 760 |
| MES-300-D | 315 | 356 | 1400 | 1630 | 960 | 460 | 210 | 870 | 760 |
Available Models & Power Options
Our 20,000GS Electro Magnetic Separator is available in three standard models: MES-150-D, MES-250-D, and MES-300-D, catering to different processing capacities and installation requirements. All models feature a powerful 20,000GS electromagnetic system with customizable voltage configurations. The intelligent PLC control system supports automatic operation, with adjustable timing settings optimized for various material types and processing conditions.
Applications & Industry Use Cases
The 20,000GS Electro Magnetic Separator is ideal for high-precision ferrous contamination removal across demanding industries:
• Electronic Materials Industry: Purification of battery materials and semiconductor raw materials
• Chemical Industry: High-purity processing of chemical powders and fine materials
• Food Industry: Ultra-fine iron removal from food additives and high-grade ingredients
• Pharmaceutical Industry: Contaminant-free processing of pharmaceutical raw materials
• Mineral Processing: High-efficiency separation of micron-sized magnetic minerals
• Ceramic & Glass Industry: Protection of production equipment from iron impurities
Customization Services
We provide comprehensive customization services for our 20,000GS Electro Magnetic Separators:
• Custom dimensions and interface sizes to match existing production lines
• Tailored magnetic field strength and distribution for specific applications
• Specialized control systems and automation integration
• High-temperature and corrosion-resistant configurations
• Complete turn-key solutions including installation and commissioning
• Custom material handling systems and feeding mechanisms
Certifications & Compliance
Our 20,000GS Electro Magnetic Separators meet international industrial standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• IP44+ rated electrical control system protection
• CE certification for industrial safety standards
• Strict electromagnetic compatibility and safety testing
Warranty & After-Sales Support
We provide comprehensive warranty and support services for electromagnetic separators:
• Standard manufacturer warranty covering all components
• Professional technical support for installation and commissioning
• Operator training and detailed operation documentation
• Regular maintenance guidance and service programs
• Quick-response global after-sales support
• Complete spare parts supply for long-term operation
Request a Quotation
Contact us for a customized quotation for the 20,000GS Electro Magnetic Separator. Please provide your specific requirements including:
• Application industry and material characteristics
• Required processing capacity and particle size requirements
• Installation space and environmental conditions
• Voltage and power supply specifications
• Automation and control system requirements
• Order quantity and delivery requirements
Our technical and sales team will provide you with a detailed quotation and optimal separation solution tailored to your needs.
FAQ
Q: What makes the 20,000GS Electro Magnetic Separator unique?
A: It delivers an ultra-high magnetic field strength of 20,000GS, enabling efficient removal of micron-sized magnetic particles that standard permanent magnet separators cannot capture.
Q: How does the oil-water cooling system work?
A: The closed-loop oil-water circulation system effectively dissipates heat from the electromagnetic coil, ensuring stable performance and extended service life even under continuous operation.
Q: Is the operation difficult?
A: No, the integrated PLC and touch panel control system provides user-friendly operation with fully automatic cycles and adjustable parameters for different materials.
Q: What is the advantage of the symmetrical vibrator design?
A: Symmetrically arranged vibrators create uniform oscillation, preventing material bridging and ensuring optimal contact with the magnetic field for maximum separation efficiency.
Q: Can this separator be customized for my specific application?
A: Yes, we offer full customization including dimensions, magnetic parameters, control systems, and material handling components to meet your exact requirements.
