Grate Magnet With Baffles
Description
Reviews
Grate Magnet With Baffles is a professional magnetic separation equipment manufactured with food-grade stainless steel and high-performance rare earth magnets. Equipped with specially designed flow-directing baffles, this magnetic grate can guide material flow across the strong magnetic field to maximize iron removal efficiency. It is ideal for installation inside hoppers, housings, chutes and storage bins to capture ferrous contaminants from free-flowing materials, and is widely used in the food industry, plastic processing, chemical industry, pharmaceutical industry and other industrial applications.

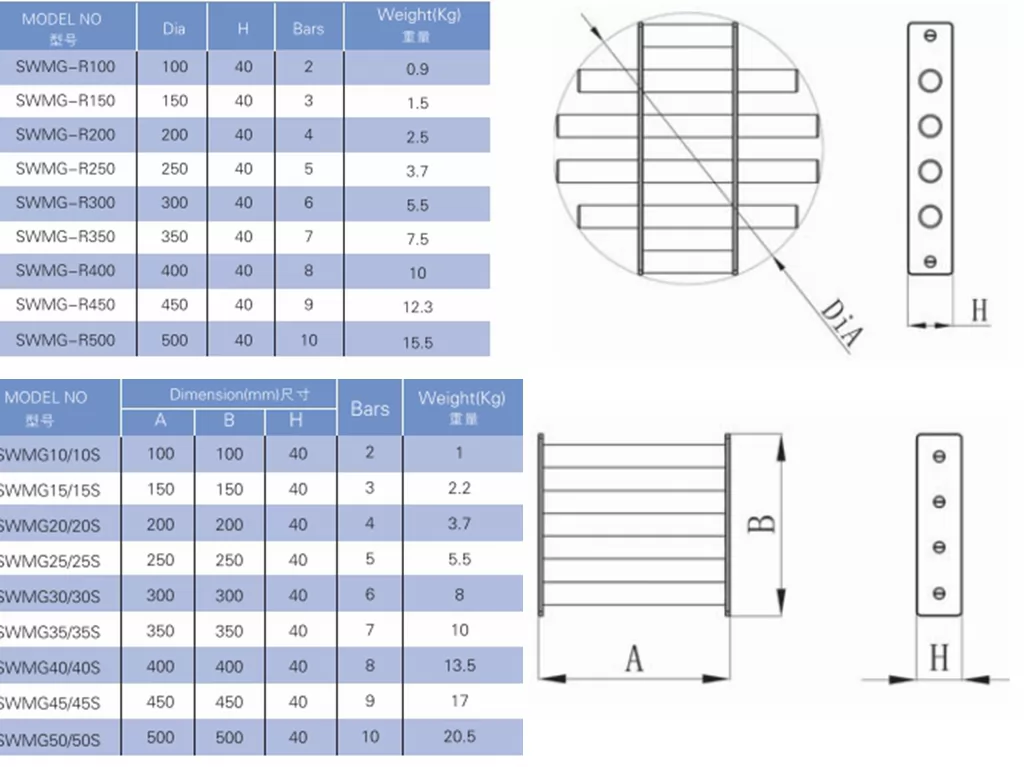

Technical Specifications & Features
1. Housing Material: Premium SS304 or SS316L stainless steel construction for corrosion resistance and durability
2. Surface Treatment: Professional sand blasting or mirror polishing ensures smooth material flow and easy cleaning
3. Magnetic Intensity: Adjustable magnetic field strength from 1500GS up to 12000GS to meet various separation requirements
4. Working Temperature: Heat-resistant design supports operating temperatures from 80℃ to 350℃ for high-temperature environments
5. Magnet Materials: Available in Neodymium-Iron-Boron, Samarium-Cobalt, and Ceramic ferrite magnet options
6. Customization: Fully customizable with logo, brand, and pattern printing; custom sizes and configurations available
7. Baffle Design: Unique baffle system directs material flow through magnetic fields for superior separation efficiency
8. MOQ: Flexible ordering with 1PC minimum order quantity for testing and prototype applications
9. Lead Time: Standard production lead time of 30 days
10. Packing: Secure packaging in standard brown cartons or export wooden cases
11. Payment Term: T/T payment terms accepted
12. Loading Port: Convenient shipping from Ningbo or Shanghai ports
Product Applications & Advantages
The unique baffle design of our Grate Magnet With Baffles ensures optimal material contact with the magnetic rods, outperforming standard grid magnet and magnetic grid filter units. Compatible with hopper magnet systems, it provides efficient iron removal for grains, sugar, plastics, chemicals, and pharmaceutical raw materials, making it an essential component in industrial magnetic separation systems.
About Mag-spring
Mag-spring was established in 2003 and is located in Ningbo, Zhejiang Province, China. It is a comprehensive manufacturer of magnetic application products, specializing in the research, design and production of magnetic filters and various magnetic application components.
The company has a group of professional technicians and production equipment, operates strictly in accordance with the ISO9001 quality system, and continuously strengthens internal management. While the company is constantly developing, it pays attention to environmental protection. It is an ISO14001 certified enterprise, and the company's products meet the requirements of the EU ROHS directive.
Based on the enterprise tenet of "efficiency, perfection, harmony and dedication" and the enterprise slogan of "everything we handle must be excellent", with many years of experience in research, design, manufacturing and sales in the field of magnetic products, the company's products have been recognized by many customers at home and abroad. We will sincerely look forward to cooperating with you with high-quality products, preferential prices and the best services.
