High Power Chute Magnet
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the High Power Chute Magnet, a high-efficiency inline magnetic separation device designed for reliable tramp iron and ferrous fines removal. This advanced chute magnet delivers exceptional magnetic field strength up to 10,000GS, enabling efficient extraction of magnetic contaminants from flow-resistant bulk materials.
Featuring a stainless steel housing and hinged plate magnet design, our high-power chute magnet is widely used in food, pharmacy, chemical and other industries. The unique wedge-shaped baffle prevents material bridging and choking, breaking up aggregated products and directing material flow over the powerful dual plate magnets for thorough magnetic separation.
Key Features & Benefits
- High-intensity magnetic field up to 10,000GS for superior ferrous contamination removal.
- Stainless steel SS304/SS316 housing ensures hygiene and corrosion resistance.
- Hinged plate magnet design like doors for quick, easy cleaning and maintenance.
- Wedge-shaped baffle prevents material bridging and ensures smooth material flow.
- Ideal for flow-resistant bulk materials that tend to clog or block.
- Food-grade welding available for strict food and pharmaceutical applications.
- Wide working temperature range from 0°C to 350°C for various conditions.
- Customizable magnet materials: NdFeB, Ferrite or SmCo magnets available.
- Compact inline design, easy to install in existing chute systems.
- Durable construction with long service life and stable performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | High Power Chute Magnets |
| Magnet Material | NdFeB Magnet / Ferrite Magnet / SmCo Magnet |
| Surface Treatment | Sandblasting / Brushing / Polishing |
| Coating | Teflon, Tungsten Carbide |
| Food Grade Welding | Available |
| Working Temperature | 0 - 350°C |
| Housing Material | SS304 / SS316 |
| Max Magnetic Strength | 10000GS |
| MOQ | 1 PC |
| Lead Time | 45 Days |

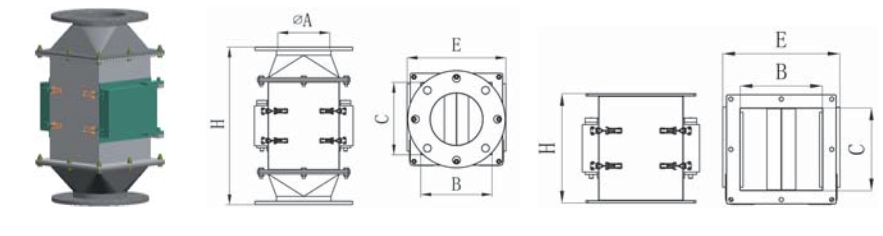

Model Dimensions
| MODEL NO | A (mm) | B (mm) | C (mm) | E (mm) | H (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| MC150 | 150 | 208 | 208 | 322 | 470 | 27 |
| MC200 | 200 | 208 | 258 | 322 | 470 | 34 |
| MC250 | 250 | 258 | 358 | 372 | 500 | 62 |
| MC2020 | - | 208 | 208 | 322 | 300 | 17 |
| MC2025 | - | 208 | 258 | 322 | 300 | 21 |
| MC2525 | - | 258 | 258 | 372 | 300 | 27 |
| MC2530 | - | 258 | 308 | 372 | 300 | 32 |
| MC2535 | - | 258 | 308 | 372 | 300 | 37 |
| MC2540 | - | 208 | 408 | 372 | 300 | 42 |
| MC2545 | - | 258 | 458 | 372 | 300 | 47 |
| MC2550 | - | 208 | 508 | 372 | 300 | 53 |
| MC2555 | - | 258 | 558 | 372 | 300 | 58 |
| MC2560 | - | 258 | 608 | 372 | 300 | 63 |
Available Models & Power Options
Our High Power Chute Magnet is available in multiple standard models from MC150 to MC2560, catering to different chute sizes and installation requirements. All models feature a powerful 10,000GS magnetic system with customizable magnet materials. The versatile design supports various housing materials, surface treatments and coating options, optimized for different material types and processing conditions.
Applications & Industry Use Cases
The High Power Chute Magnet is ideal for high-precision ferrous contamination removal across demanding industries:
• Food Industry: Purification of grains, flour, sugar, spices and food additives
• Pharmaceutical Industry: Contaminant-free processing of pharmaceutical raw materials
• Chemical Industry: High-purity processing of chemical powders and fine materials
• Tobacco Industry: Iron removal from tobacco and related processing materials
• Plastic Industry: Ferrous contamination removal from plastic pellets and resins
• Recycling Industry: Purification of bulk recycled materials
Customization Services
We provide comprehensive customization services for our High Power Chute Magnets:
• Custom dimensions and interface sizes to match existing chute systems
• Tailored magnetic field strength and magnet materials for specific applications
• Specialized housing materials (SS304/SS316) for hygienic applications
• High-temperature resistant configurations up to 350°C
• Complete turn-key solutions including installation and commissioning
• Custom surface treatments and coating options
Certifications & Compliance
Our High Power Chute Magnets meet international industrial standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• Food Grade Certification for food and pharmaceutical applications
• CE certification for industrial safety standards
• Strict quality testing for durable industrial applications
Warranty & After-Sales Support
We provide comprehensive warranty and support services for chute magnets:
• Standard manufacturer warranty covering all components
• Professional technical support for installation and commissioning
• Operator training and detailed operation documentation
• Regular maintenance guidance and service programs
• Quick-response global after-sales support
• Complete spare parts supply for long-term operation
Request a Quotation
Contact us for a customized quotation for the High Power Chute Magnet. Please provide your specific requirements including:
• Application industry and material characteristics
• Required installation space and chute dimensions
• Magnetic strength and temperature resistance requirements
• Housing material preferences (SS304/SS316)
• Food grade or standard industrial configuration
• Order quantity and delivery requirements
Our technical and sales team will provide you with a detailed quotation and optimal separation solution tailored to your needs.
FAQ
Q: What magnetic strength does the High Power Chute Magnet provide?
A: It delivers an outstanding magnetic field strength up to 10,000GS for efficient ferrous contamination removal.
Q: What materials are used for the chute magnet housing?
A: We use SS304 or SS316 stainless steel for excellent hygiene and corrosion resistance.
Q: Is the chute magnet easy to clean?
A: Yes, the internal plate magnets are hinged to the housing like doors, making cleaning quick and convenient.
Q: What working temperature range can this chute magnet withstand?
A: It can operate reliably in temperatures ranging from 0°C to 350°C.
Q: Can this chute magnet be customized for my specific application?
A: Yes, we offer full customization including dimensions, magnetic strength, materials and surface treatments to meet your exact requirements.
