Magnetic Liquid Trap With Jacket for Chocolate
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the Magnetic Liquid Trap With Jacket, also known as Insulation Style Magnetic Liquid Trap. This specialized liquid filter is designed for high-viscosity and temperature-sensitive materials such as chocolate, syrup, jam, and paste, featuring a thermal insulation jacket filled with hot oil or water to maintain stable working temperature and ensure smooth material flow.
Constructed with food-grade stainless steel casing and high-performance permanent magnets, this liquid trap effectively removes ferromagnetic contaminants from liquid materials while providing excellent thermal insulation performance. It is widely used in food processing, chocolate production, confectionery, beverage, and pharmaceutical industries to ensure product purity and protect downstream equipment.
Key Features & Benefits
- Insulation jacket design for hot oil or water heating, ideal for chocolate, syrup, jam and high-viscosity materials.
- Food-grade housing material: SS304 or SS316L stainless steel for hygiene and corrosion resistance.
- Multiple surface treatment options: sand blasting, polishing, and brushing to meet sanitary standards.
- Adjustable magnetic intensity: ranges from 1500GS up to 14,000GS for high-efficiency iron removal.
- Wide working temperature range: maximum temperature from 80℃ to 350℃ for high-temperature applications.
- Various magnet material options: Neodymium-Iron-Boron, Samarium-Cobalt, and Ceramic magnets.
- Food grade welding available for strict hygienic production requirements.
- Full customization service: custom size, logo, brand, and pattern can be customized.
- Low MOQ: 1 piece for prototype and small-batch orders.
- Standard lead time: 30 days for mass production.
- Secure export packing: standard wooden case for transportation protection.
- Flexible payment terms: T/T available for international orders.
- Convenient loading ports: Ningbo Port and Shanghai Port available.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Magnetic Liquid Trap With Jacket |
| Housing Material | SS304 / SS316L |
| Surface Treatment | Polishing / Sand Blasting / Brushing |
| Magnetic Strength | 1500GS - 14,000GS |
| Max Working Temperature | 80℃ - 350℃ |
| Magnet Material | NdFeB / SmCo / Ceramic |
| Food Grade Welding | Available |
| Customization | Logo, Brand, Size, Structure Available |
| MOQ | 1 Piece |
| Lead Time | 30 Days |
| Packing | Wooden Case |
| Payment Term | T/T |
| Loading Port | Ningbo / Shanghai |

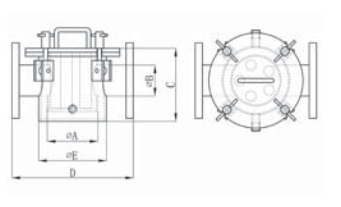

Available Models & Dimensions
| MODEL NO | Dimension(mm) | No. of rods | Weight(Kg) | ||||
|---|---|---|---|---|---|---|---|
| A | E | B | C | D | |||
| SWFLD125/25 | 125 | 168 | 32 | 185 | 300 | 5 | 21 |
| SWFLD125/32 | 125 | 168 | 38 | 185 | 300 | 5 | 22 |
| SWFLD125/40 | 125 | 168 | 45 | 185 | 300 | 5 | 23 |
| SWFLD125/50 | 125 | 168 | 57 | 185 | 300 | 5 | 24 |
| SWFLD125/65 | 125 | 168 | 76 | 185 | 300 | 5 | 25 |
| SWFLD160/50 | 160 | 219 | 57 | 220 | 360 | 7 | 32.5 |
| SWFLD160/65 | 160 | 219 | 76 | 220 | 360 | 7 | 34 |
| SWFLD160/80 | 160 | 219 | 89 | 220 | 360 | 7 | 36 |
| SWFLD160/100 | 160 | 219 | 108 | 220 | 360 | 7 | 37.5 |
Applications & Industry Use Cases
The Magnetic Liquid Trap With Jacket is specially designed for temperature-sensitive and high-viscosity liquid materials across various industries:
• Food & Confectionery Industry: Chocolate, syrup, jam, paste, and high-viscosity food materials
• Pharmaceutical Industry: Medical syrup, paste, and viscous liquid filtration
• Chemical Industry: High-viscosity slurry, adhesive, and coating filtration
• Beverage and daily chemical industry for heat-preservation liquid filtration
Customization Services
We provide comprehensive customization services for Magnetic Liquid Trap With Jacket:
• Custom dimensions, connection size, and installation structure
• Custom magnetic strength and temperature resistance configuration
• SS304 / SS316L material selection for food and pharmaceutical applications
• Custom logo, brand, and surface treatment
• Jacket design for hot oil, water, or steam heating systems
• Sanitary and food-grade welding and polishing
Certifications & Compliance
Our Magnetic Liquid Traps meet international industrial and food safety standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• CE certification for mechanical safety standards
• Food-grade material and hygiene certification
Warranty & After-Sales Support
We provide comprehensive warranty and support services for Magnetic Liquid Traps:
• Standard manufacturer warranty covering magnetic performance and structure
• Professional technical support for installation and commissioning
• Custom design and pipeline matching guidance
• Long-term magnetic performance maintenance services
• Quick-response global after-sales support
• Complete spare parts supply
Request a Quotation
Contact us for a customized quotation for the Magnetic Liquid Trap With Jacket. Please provide your specific requirements including:
• Material type, viscosity, and working temperature
• Flow rate, pipeline size, and connection requirements
• Magnetic strength and hygiene level requirements
• Jacket heating medium (hot oil / water / steam)
• Order quantity and delivery requirements
Our technical team will provide the most suitable thermal insulation liquid magnetic filtration solution and detailed quotation.
FAQ
Q: What materials is this jacketed liquid trap suitable for?
A: It is specially designed for chocolate, syrup, jam, paste, and other high-viscosity, temperature-sensitive materials.
Q: What is the function of the insulation jacket?
A: The jacket can be filled with hot oil or water to keep materials warm and ensure smooth flow during filtration.
Q: Is it food-grade safe?
A: Yes, we provide SS316L material and food-grade welding for food and pharmaceutical production.
Q: Can we customize the size and magnetic strength?
A: Yes, we provide full customization of dimensions, magnetic strength, logo, and structure.
Q: What is the temperature resistance range?
A: The maximum working temperature ranges from 80℃ to 350℃ based on magnet material selection.
