12,000GS Pipeline Magnetic Liquid Filter
Description
Reviews
Product Overview
As a professional and experienced manufacturer and supplier of magnetic separators in China, MAG SPRING proudly presents the 12,000GS Pipeline Magnetic Liquid Filter, a high-performance inline magnetic separation solution designed for ferromagnetic impurity removal from liquid and semi-liquid materials. Also known as a magnetic liquid trap, this advanced pipeline magnetic liquid filter delivers a stable magnetic field strength up to 12,000GS, with a customizable maximum of 14,000GS, enabling efficient extraction of micron-sized ferrous contaminants to maintain material purity and protect downstream equipment.
Featuring a food-grade stainless steel casing and high-performance permanent magnetic cores, this liquid filter ensures stable operation, uniform magnetic field distribution, and outstanding de-ironing performance without impeding liquid flow. It is widely applied in hygienic industries requiring high-purity material processing, effectively protecting pumps, valves and precision equipment while significantly improving final product quality.
Key Features & Benefits
- Ultra-high 12,000GS standard magnetic strength, customizable up to 14,000GS for powerful ferrous impurity capture in liquids.
- Optimized magnetic circuit design ensures maximum magnetic effect with zero liquid flow impedance.
- Quick interface connector available for fast installation, disassembly and routine maintenance.
- Wide working temperature range: standard ≤80℃, maximum up to 350℃ for high-temperature liquid applications.
- Flexible installation methods: ferrule, bolt plate, flange and uneven head connections for universal pipeline compatibility.
- Food-grade SS304/SS316L stainless steel construction, fully compliant with hygienic industry standards.
- Easy installation, separation and cleaning design reduces downtime and improves production efficiency.
- Corrosion-resistant structure with customizable surface treatment and coating for harsh liquid environments.
- Food-grade welding available, ideal for food, beverage, pharmaceutical and chemical liquid processing.
- Permanent magnet design requires no power supply, maintenance-free and cost-effective for long-term operation.
Technical Specifications
| Item | Parameter Details |
|---|---|
| Product Name | 12,000GS Pipeline Magnetic Liquid Filter |
| Magnet Material | NdFeB / Ferrite / SmCo Magnet |
| Standard Magnetic Strength | 12000GS |
| Max Custom Magnetic Strength | 14000GS |
| Housing Material | SS304 / SS316 Stainless Steel |
| Working Temperature | 0℃ - 350℃ (Standard ≤80℃) |
| Surface Treatment | Sandblasting / Polishing / Brushing |
| Surface Coating | Teflon / Tungsten Carbide |
| Food Grade Welding | Available |
| MOQ | 1 PC |
| Lead Time | 30 Days |
| Loading Port | Ningbo Port |

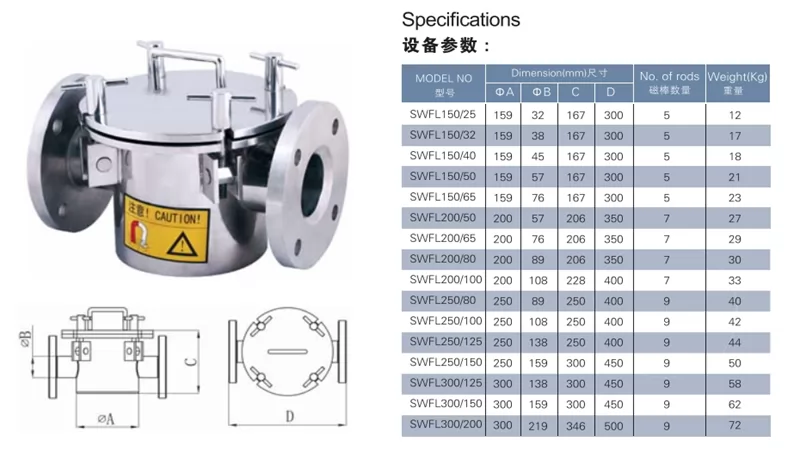

Available Models & Structure Options
Our 12,000GS Pipeline Magnetic Liquid Filter provides customized models and flexible structural options:
• Standard Model: 12000GS magnetic strength for general liquid purification applications
• High-Strength Model: Customizable up to 14000GS for heavy-duty ferrous contamination removal
• Housing Material: SS304 standard, SS316L for corrosive, hygienic and food-grade liquids
• Connection Types: quick connector, ferrule, bolt plate, flange for different pipeline systems
• Temperature Grade: standard low-temperature and high-temperature 350℃ versions available
Applications & Industry Use Cases
The 12,000GS Pipeline Magnetic Liquid Filter is ideal for high-purity ferrous contamination removal across liquid processing industries:
• Food Industry: Syrup, juice, edible oil, beverage and dairy liquid purification
• Chemical Industry: Industrial liquid, solvent, emulsion and polymer material purification
• Pharmaceutical Industry: Medical liquid, extract and reagent processing protection
• Cosmetics Industry: Skin care products, lotion and cosmetic liquid impurity removal
• Beverage Industry: Wine, beer, soft drink and mineral water processing lines
• General Liquid Processing: All liquid and semi-liquid material pipeline purification systems
Customization Services
We provide comprehensive customization services for our 12,000GS Pipeline Magnetic Liquid Filters:
• Custom pipeline diameter and connection size to match existing liquid conveying systems
• Tailored magnetic field strength from 12000GS to 14000GS for specific liquid applications
• High-temperature and corrosion-resistant configurations for harsh liquid environments
• Custom surface treatment, coating and hygienic design for food & pharma industries
• Quick-connect and quick-clean structure customization for easier maintenance
• Complete turn-key solutions including liquid pipeline integration and commissioning
Certifications & Compliance
Our Pipeline Magnetic Liquid Filters meet international industrial standards:
• ISO9001 Quality Management System Certification
• ISO14001 Environmental Management System Certification
• EU RoHS Directive Compliance
• Food-grade material certification for food contact applications
• CE certification for industrial safety and equipment standards
• Strict magnetic performance and liquid sealing testing
Warranty & After-Sales Support
We provide comprehensive warranty and support services for pipeline magnetic liquid filters:
• Standard manufacturer warranty covering all components
• Professional technical support for installation and commissioning
• Operator training and detailed operation documentation
• Regular maintenance guidance and service programs
• Quick-response global after-sales support
• Complete spare parts supply for long-term operation
Request a Quotation
Contact us for a customized quotation for the 12,000GS Pipeline Magnetic Liquid Filter. Please provide your specific requirements including:
• Application industry and liquid material characteristics
• Required magnetic strength and pipeline connection size
• Working temperature and flow rate requirements
• Housing material (SS304/SS316L) and surface treatment requirements
• Installation type and environmental working conditions
• Order quantity and delivery schedule requirements
Our technical and sales team will provide you with a detailed quotation and optimal magnetic separation solution tailored to your needs.
FAQ
Q: What is the magnetic strength of this pipeline liquid filter?
A: The standard magnetic strength is 12,000GS, and we can customize it up to 14,000GS for heavy-duty liquid applications.
Q: What liquids is this filter suitable for?
A: It is specially designed for all liquid and semi-liquid materials including food, beverage, chemical and pharmaceutical liquids.
Q: What is the working temperature range?
A: Standard working temperature is ≤80℃, and the high-temperature version can reach up to 350℃.
Q: What materials is the liquid filter made of?
A: The housing uses food-grade SS304/SS316L stainless steel, with high-performance permanent magnetic cores.
Q: Can this liquid filter be customized for my pipeline system?
A: Yes, we provide full customization including size, magnetic strength, material and connection type to match your exact liquid pipeline requirements.
