Grate Magnet Filter
Description
Reviews

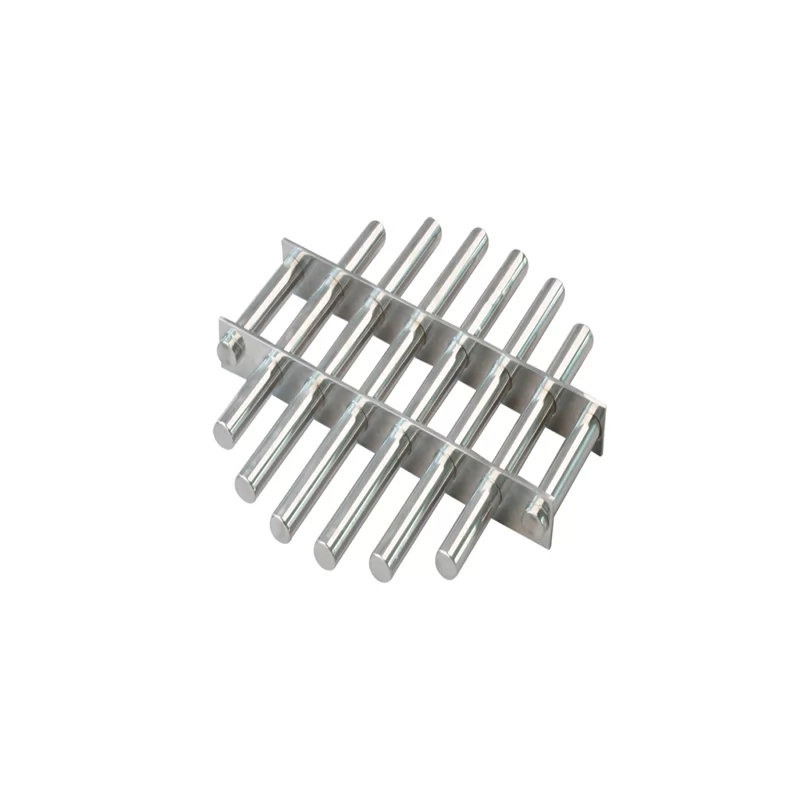

The Grate Magnet Filter is a professional magnetic separation device constructed with food-grade stainless steel and high-performance rare earth magnets. It can be directly installed or placed inside hoppers, housings, and storage bins to efficiently capture and remove ferrous metal contaminants from bulk materials. This grate magnet filter is widely used in food processing, plastics, chemical engineering, and pharmaceutical industries to ensure material purity and protect production equipment.
Key Features of Grate Magnet Filter
- Available in 304 or 316L stainless steel housing with excellent corrosion resistance and hygienic performance
- Standard design with durable stainless steel frame and 25mm diameter high-strength magnetic bars
- Mirror-polished surface fully complies with food and pharmaceutical industry hygiene standards
- Wide operating temperature range from 0℃ to 350℃, suitable for various industrial working conditions
- Supports Normal (N) and Easy-cleaning (E) styles, with optional angle baffles and support rods for customized applications
- Maximum magnetic strength up to 13000GS for efficient removal of iron impurities

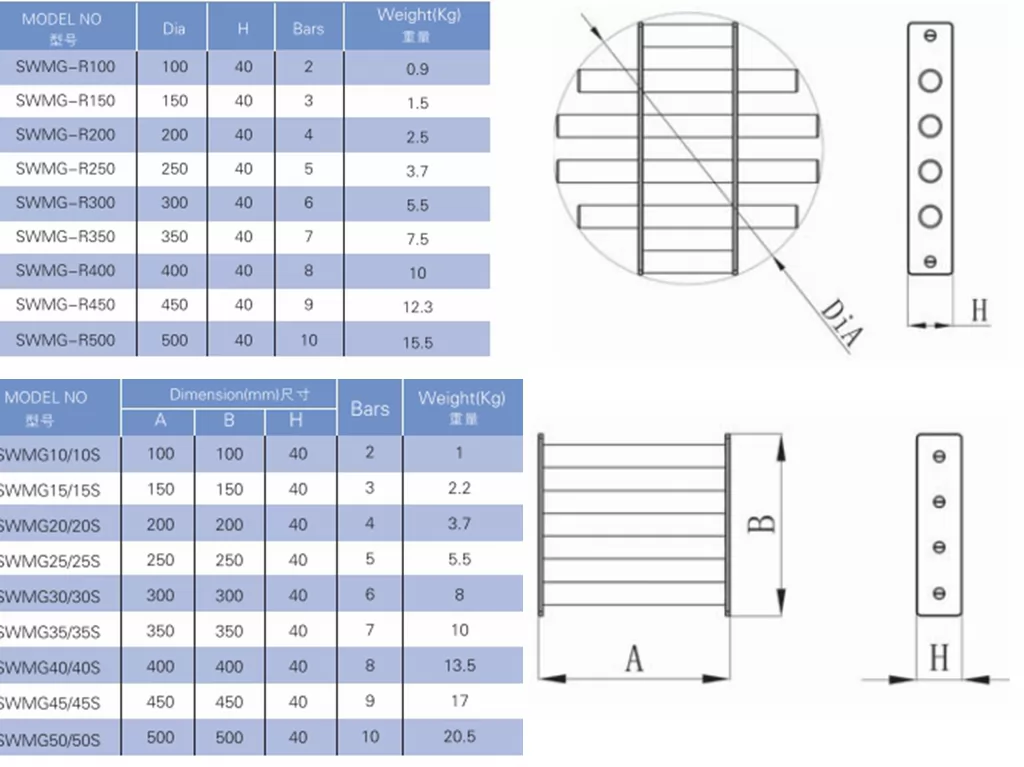

Product Specifications
| Product Name | Grate Magnet Filter |
| Magnet Material | NdFeB Magnet / Ferrite Magnet / SmCo Magnet |
| Surface Treatment | Sandblasting / Polishing |
| Protective Coating | Teflon, Tungsten Carbide |
| Food Grade Welding | Available |
| Working Temperature | 0 - 350℃ |
| Housing Material | SS304 / SS316 Stainless Steel |
| Max Magnetic Strength | 13000GS |
| Monthly Output | 10,000 PCS |
| MOQ | 1 PC |
| Loading Port | Ningbo Port, China |
| Packaging | Wood Case / Carton Box |
| Lead Time | 20 Days |
Applications
Our Grate Magnet Filter is an ideal solution for filtering free-flowing materials such as grains, sugar, plastic granules, powder, and chemical raw materials. As a core component of magnetic separators, it effectively removes iron contaminants, improves product quality, and extends the service life of downstream processing machinery.
About Us
Mag-spring was established in 2003 and is located in Ningbo, Zhejiang Province, China. It is a comprehensive manufacturer of magnetic application products, specializing in the research, design and production of magnetic filters and various magnetic application components.
The company has a group of professional technicians and production equipment, operates strictly in accordance with the ISO9001 quality system, and continuously strengthens internal management. While the company is constantly developing, it pays attention to environmental protection. It is an ISO14001 certified enterprise, and the company's products meet the requirements of the EU ROHS directive.
Based on the enterprise tenet of "efficiency, perfection, harmony and dedication" and the enterprise slogan of "everything we handle must be excellent", with many years of experience in research, design, manufacturing and sales in the field of magnetic products, the company's products have been recognized by many customers at home and abroad. We will sincerely look forward to cooperating with you with high-quality products, preferential prices and the best services.
