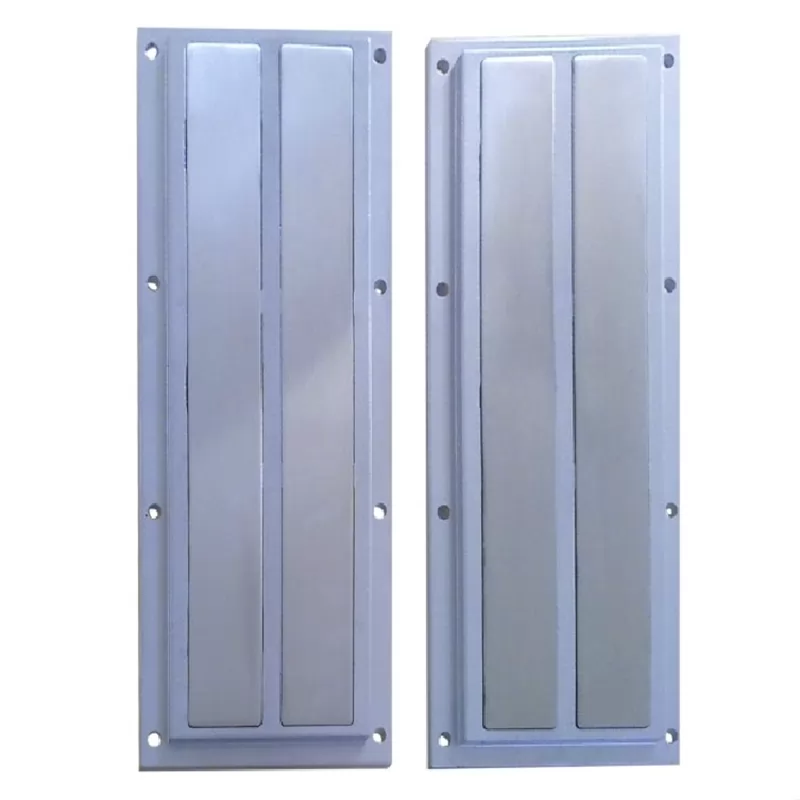

Chute Plate Magnet for Hay
Product Introduction
Chute Plate Magnet for Hay is also named exposed pole magnet plate is suitable to be mounted on the bottom of chutes or feed tables to remove ferrous metals from low volume material flows
Optional:
Housing material : SS304/SS316
Surface treatment: brushing ,sandblasting, polishing
Coating options: Tungsten carbide,PTFE, PFA, ETFE
Magnet material: Ferrite
Contact Us to Get Started
Description
Reviews
Exposed pole magnet plate is suitable to be mounted on the bottom of chutes or feed tables to remove ferrous metals from low volume material flows and protect process facilities in down stream which is widly used in field of Agiculture
1.Housing:SS304 or SS316L
2.Surface treatment: sand blasting /brushing
3.Magnetic intensity :2500GS
4.Max working temparature: from 80 to 350
5.Magnet materials : Ceramic ,
6.Food grade welding: availble
7.Custom made :available.your logo/brand/patte can be printed o
8.MOQ:1PC
9.Lead time:45-50days
10.Packing:standard brown carton/wood case
11.Payment term: T/T
12.Loading Port:Ning Bo/Shang Hai
|

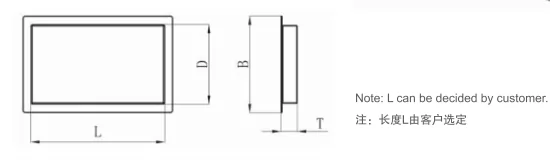

MODEL NO
|
Dimension(mm)
|
Magnets Action Range
|
Weight(Kg)
|
||
|---|---|---|---|---|---|
|
B
|
D
|
T
|
|||
|
SWFMP-EP60
|
250
|
175
|
51
|
60
|
5.7
|
|
SWFMP-EP120
|
300
|
225
|
76
|
120
|
10.4
|
|
SWFMP-EP150
|
450
|
360
|
111
|
150
|
19.1
|
|
SWNMP-EP60
|
190
|
125
|
36
|
60
|
3.7
|
|
SWNMP-EP120
|
250
|
175
|
46
|
120
|
5.9
|
|
SWNMP-EP150
|
330
|
240
|
56
|
150
|
10.3
|
