Formwork magnets, also named Shuttering magnets which are specially manufactured for Precast industry. Relying on Strong magnetic force,Formwork magnets are used widely to fix the Precast Concrete Formwork when concrete is casting . As one kind of Precast magnets , Formwork magnets consists of strong NdFeB magnets a screw and a steel casing.The insert magnet with standard screw can fix different type of sockets to hold the pipeline and trough when the PC components production is poured by concrete .
Precast Formwork magnets is used in precast concrete framework construction to allow an
easy and convinent fixing operation
magnetic holding force:60KGS

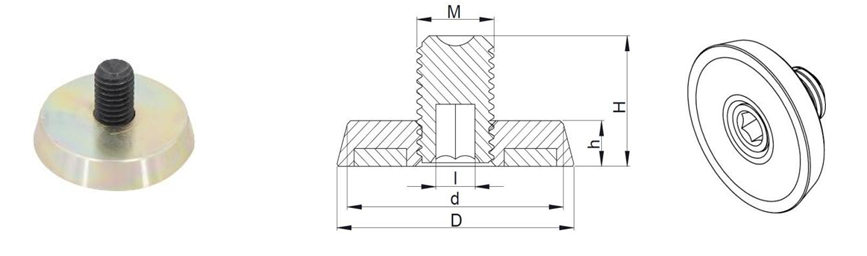

| Model | Dimension (mm) | Weight (g) | Force (Kg) | |||||
| D | d | H | h | I | M | |||
| SWR50-M10 | 50 | 45 | 30 | 8 | 5 | M10 | 130 | 60 |
| SWR50-M12 | 50 | 45 | 30 | 8 | 6 | M12 | 130 | 60 |
| SWR50-M14 | 50 | 45 | 30 | 8 | 6 | M14 | 135 | 60 |
| SWR50-M16 | 50 | 45 | 30 | 8 | 8 | M16 | 135 | 60 |
| SWR54-M18 | 54 | 49 | 30 | 10 | 10 | M18 | 165 | 60 |
| SWR54-M20 | 54 | 49 | 30 | 10 | 10 | M20 | 165 | 60 |
| SWR54-M24 | 54 | 49 | 30 | 10 | 12 | M24 | 170 | 60 |
If you need more other Precast Formwork Magnets ,please email us for full item list catalog.
