Shuttering Magnet
Description
Reviews
Precast Concrete Shuttering Magnets, also called Shuttering magnet is specially manufactured for Precast industry,which are made from stainless steel case with neodymium magnet inside . Relying on Strong magnetic force,Precast Concrete Magnet was used widely to fix the Precast Concrete Formwork when concrete is casting.

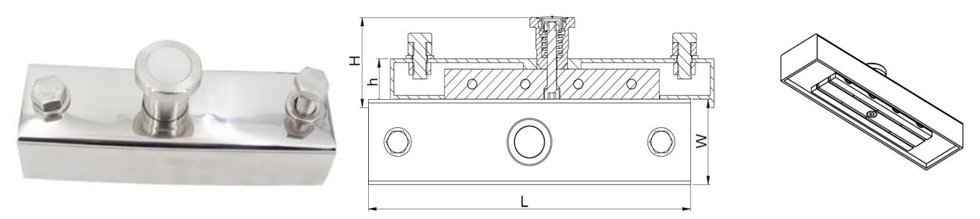

| Model | Dimension (mm) | Weight (g) | Force (kg) | |||
| H | h | L | W | |||
| SM450 | 77 | 40 | 180 | 60 | 1700 | 450 |
| SM600 | 77 | 40 | 170 | 60 | 1900 | 600 |
| SM800 | 82 | 43 | 190 | 95 | 2700 | 800 |
| SM1000 | 82 | 43 | 200 | 95 | 3100 | 1000 |
| SM1350 | 88 | 60 | 320 | 90 | 5800 | 1350 |
| SM1800 | 88 | 60 | 320 | 120 | 7200 | 1800 |
| SM2100 | 88 | 60 | 320 | 120 | 7600 | 2100 |
| SM2400 | 88 | 60 | 320 | 120 | 8200 | 2400 |

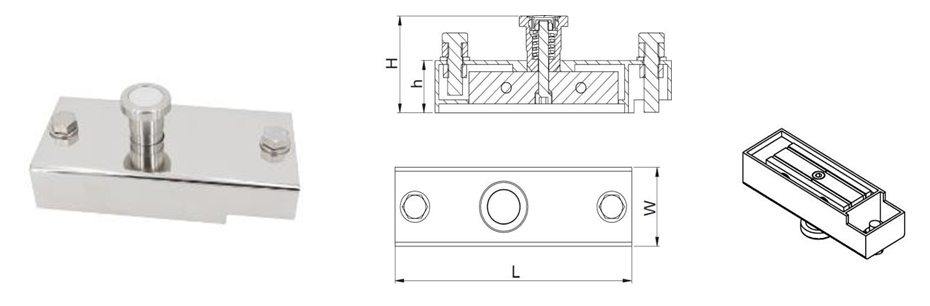

| Model | Dimension (mm) | Weight (g) | Force (kg) | |||
| H | h | L | W | |||
| SM450-1 | 77 | 40 | 180 | 60 | 1700 | 450 |
| SM600-1 | 77 | 40 | 170 | 60 | 1900 | 600 |
| SM800-1 | 82 | 43 | 190 | 95 | 2700 | 800 |
| SM1000-1 | 82 | 43 | 200 | 95 | 3100 | 1000 |
| SM1350-1 | 88 | 60 | 320 | 90 | 5800 | 1350 |
| SM1800-1 | 88 | 60 | 320 | 120 | 7200 | 1800 |
| SM2100-1 | 88 | 60 | 320 | 120 | 7600 | 2100 |
| SM2400-1 | 88 | 60 | 320 | 120 | 8200 | 2400 |
Please email us for more precast Concrete Shuttering Magnets catalog list.
