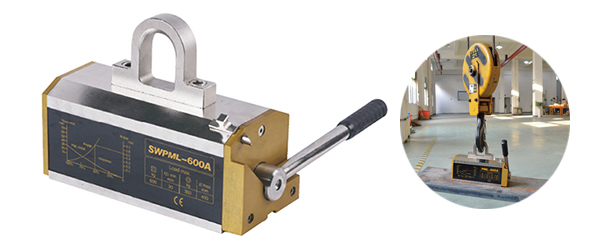

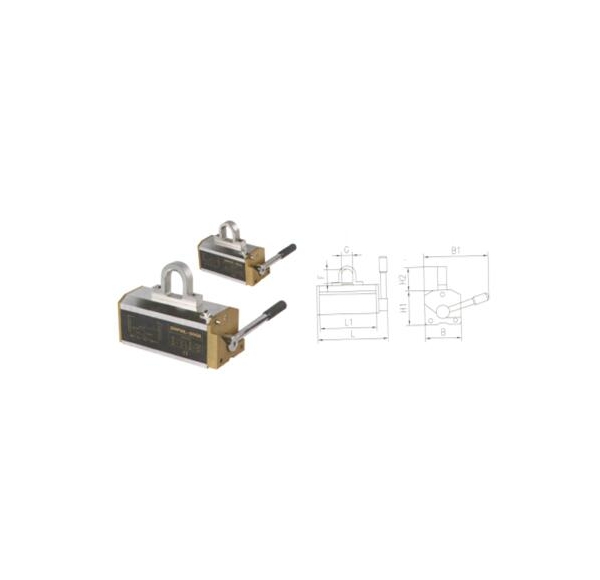

As a leading NdFeB magnet manufacturer in China, MAG SPRING offers high-performance Magnetic Lifters (Permanent Lifting Magnets) made of super powder Neodymium magnets. With compact construction, easy operation, and strong lifting power from 0 to 3000Kgs, our magnetic lifters are widely used in factories, docks, warehouses, and transportation for lifting and transporting steel and iron materials of different shapes and working conditions.
Product Overview
Magnetic Lifters are permanent magnetic lifting tools built with high-grade NdFeB magnetic circuit system. They feature no power supply required, safe operation, and stable performance, ideal for lifting flat steel plates, round steel bars, iron blocks, and other ferromagnetic materials in industrial handling, construction, and mechanical processing.
Basic Specifications
- Color: Yellow
- Material: Strong NdFeB Magnet
- Safety Factor: 3.5
- Max Working Temperature: 80℃
- Sample: Available
- MOQ: 1 PC
- Lead Time: 30 days
- Packing: Standard brown carton/wood case
- Payment Term: T/T
- Loading Port: Ning Bo/Shang Hai

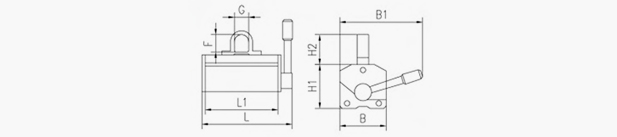

Dimensions & Weight
|
MODEL NO
|
Dimensions(mm)
|
NW(Kg)
|
|||||||
|---|---|---|---|---|---|---|---|---|---|
|
L
|
L1
|
B
|
H1
|
H2
|
B1
|
F
|
G
|
||
|
PML-100A
|
120
|
90
|
55
|
60
|
50
|
120
|
35
|
25
|
3
|
|
PML-300A
|
203
|
165
|
87
|
89
|
68
|
223
|
45
|
38
|
10
|
|
PML-600A
|
266
|
226
|
112
|
109
|
89
|
287
|
58
|
45
|
21
|
|
PML-1000A
|
330
|
290
|
148
|
125
|
95
|
364
|
60
|
52
|
40
|
|
PML-1500A
|
385
|
330
|
178
|
145
|
118
|
447
|
70
|
65
|
65
|
|
PML-2000A
|
470
|
420
|
178
|
145
|
118
|
487
|
70
|
65
|
83
|
|
PML-3000A
|
490
|
435
|
210
|
175
|
128
|
487
|
80
|
70
|
125
|
Lifting Capacity Data
|
work piece shape
|
Steel plate
|
Round steel products
|
|||||
|---|---|---|---|---|---|---|---|
|
MODEL NO
|
Rated lifting force
(Kgs) |
Min Thickness
(mm) |
Max length
(mm) |
Rated lifting force
(Kgs) |
Max diameter
(mm) |
Max length
(mm) |
Min Thickness
(mm) |
|
PML-100A
|
100
|
10
|
1000
|
50
|
100
|
1000
|
10
|
|
PML-300A
|
300
|
20
|
1500
|
150
|
300
|
1500
|
12
|
|
PML-600A
|
600
|
30
|
2000
|
300
|
400
|
2000
|
20
|
|
PML-1000A
|
1000
|
40
|
3000
|
500
|
450
|
3000
|
28
|
|
PML-1500A
|
1500
|
50
|
3000
|
750
|
500
|
3000
|
34
|
|
PML-2000A
|
2000
|
60
|
3000
|
1000
|
600
|
3000
|
40
|
|
PML-3000A
|
3000
|
60
|
4000
|
1500
|
700
|
4000
|
50
|
Applications
Magnetic Lifters are widely used in the following fields:
- Steel plant, metal processing factory, and mechanical manufacturing
- Dock, port, and logistics transportation
- Warehouse material handling and storage
- Construction and engineering steel lifting
- Workshop processing for flat and round steel materials
Advantages
- Built with high-performance NdFeB permanent magnet, no electricity required
- Compact structure, lightweight and easy to operate
- Safety factor up to 3.5, ensuring safe operation
- Stable magnetic force, long service life
- Suitable for flat steel plates and round steel products
- Low maintenance cost, environmental friendly
- Customizable models and lifting capacity available
- RoHS compliant and ISO certified
Production & Delivery
- Lead Time: 30 days based on order quantity
- MOQ: 1 piece, sample orders are accepted
- Packing: Standard export carton or wooden case
- Loading Port: Ningbo / Shanghai, China
- Payment: T/T accepted
Quality & Compliance
All MAG SPRING magnetic lifters are produced under strict quality control:
- 100% magnetic performance and safety test before shipment
- High-strength alloy shell for durability
- ISO9001 Quality Management System Certified
- ISO14001 Environmental Management System Certified
- Full compliance with EU RoHS environmental standards
Certifications & Compliance
- ISO9001 Quality Management System Certified
- ISO14001 Environmental Management System Certified
- EU RoHS Directive Compliance
FAQs
Q: What material are the magnetic lifters made of?
A: They are made of super powder Neodymium magnets with high-strength metal housing.
Q: What is the safety factor of your magnetic lifter?
A: The safety factor is 3.5, which ensures high safety during lifting work.
Q: What is the maximum lifting capacity?
A: Our magnetic lifters can lift up to 3000Kgs for steel plates.
Q: Do you accept sample orders?
A: Yes, samples are available, and MOQ is 1 PC.
Q: What is the working temperature limit?
A: Max working temperature is 80℃.
