Neodymium magnets N54

N54 Magnets are the highest grade in China. Mag Spring can supply bulk this grade magnets with different size,grade ,coating and shape. N52M,N52H,N50SH,N50UH,N48EH,N45AH N40TH N35RH Magnets are the highest grade under different high working temperture.

Mag Spring supplied many Neodymium magnets N54 with big size 125*125*25mm and D25.4 * 100mm.

Welcome to contact us for more neodymium magnet N54 .

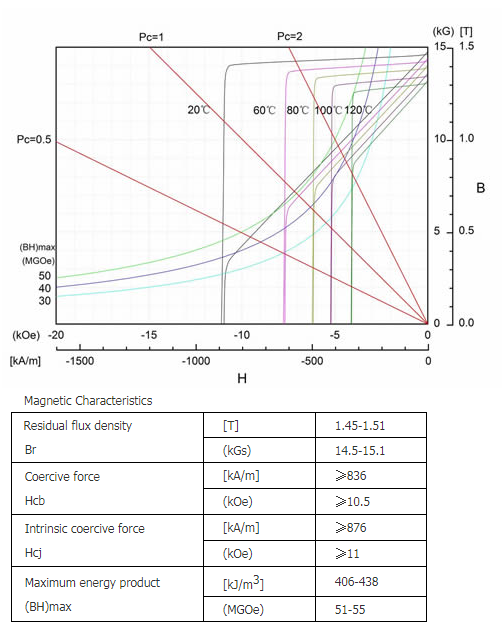

NdFeB N54 magnets Curve

Properties		Remanence				Coercive force				Intrinsic coercive force		Maximum energy product				Working temp
Unit		kGs		T		kOe		kA/m				MGOe		kJ/m3		Working temp
Unit		Nom.	Min.	Nom.	Min.	Nom.	Min.	Nom.	Min.			Nom.	Min.	Nom.	Min.
No	Grade	Nom.	Min.	Nom.	Min.	Nom.	Min.	Nom.	Min.	kOe	kA/m	Nom.	Min.	Nom.	Min.
1	N30	11.2	10.8	1.12	1.08	10.5	10	836	796	12	955	30	28	239	223	80
2	N35	12	11.7	1.2	1.17	11.3	10.8	900	860	12	955	35	33	279	263	80
3	N38	12.6	12.2	1.26	1.22	11.5	11.3	915	900	12	955	38	36	303	287	80
4	N40	12.9	12.6	1.29	1.26	11.6	11.4	924	908	12	955	40	38	318	303	80
5	N42	13.1	12.9	1.31	1.29	11.8	11.5	939	915	12	955	42	40	342	326	80
6	N45	13.6	13.3	1.36	1.33	12	11.6	955	924	12	955	45	43	358	342	80
7	N48	14	13.8	1.4	1.38	10.8	10.2	860	810	11	875	48	46	383	367	80
8	N50	14.3	14.1	1.43	1.41	10.8	10	860	794	11	875	50	48	398	383	80
9	N52	14.5	14.2	1.45	1.42	10.8	10	860	794	11	875	52	50	414	398	60
10	N30M	11.2	10.8	1.12	1.08	10.5	10	836	794	14	1114	30	28	239	223	100
11	N35M	12	11.7	1.2	1.17	11.3	10.9	900	868	14	1114	35	33	279	263	100
12	N38M	12.6	12.2	1.26	1.22	11.8	11.3	939	900	14	1114	38	36	303	287	100
13	N40M	12.9	12.6	1.29	1.26	12	11.6	955	924	14	1114	40	38	318	303	100
14	N42M	13.2	12.9	1.32	1.29	12.4	12	987	955	14	1114	42	40	342	326	100
15	N45M	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	14	1114	45	43	358	342	100
16	N48M	14	13.8	1.4	1.38	13.3	12.9	1059	1027	14	1114	48	46	383	367	100
17	N50M	14.3	14	1.43	1.4	13.5	13.1	1074	1042	14	1114	50	48	398	383	100
18	N52M	14.5	14.2	1.45	1.42	13.6	13.2	1082	1050	14	1114	52	50	414	398	80
19	N30H	11.2	10.8	1.12	1.08	10.5	10	836	794	17	1353	30	28	239	223	120
20	N33H	11.7	11.4	1.17	1.14	11	10.5	876	836	17	1353	33	31	263	247	120
21	N35H	12	11.7	1.2	1.17	11.3	10.9	900	868	17	1353	35	33	279	263	120
22	N38H	12.6	12.2	1.26	1.22	11.8	11.3	939	900	17	1353	38	36	303	287	120
23	N40H	12.8	12.6	1.28	1.26	12	11.6	955	924	17	1353	40	38	318	303	120
24	N42H	13	12.8	1.3	1.28	12.4	12	987	955	17	1353	42	40	342	326	120
25	N45H	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	17	1353	45	43	358	342	120
26	N48H	14	13.8	1.4	1.38	13.3	12.9	1059	1027	17	1353	48	46	383	367	120
27	N50H	14.3	14	1.43	1.4	13.5	13.1	1074	1042	17	1353	50	48	398	383	100
28	N52H	14.5	14.2	1.45	1.42	13.6	13.2	1082	1050	17	1353	52	50	414	398	100
29	N30SH	11.2	10.8	1.12	1.08	10.5	10.1	836	804	20	1595	30	28	239	223	150
30	N33SH	11.7	11.4	1.17	1.14	11	10.6	876	844	20	1595	33	31	263	247	150
31	N35SH	12	11.7	1.2	1.17	11.3	11	900	876	20	1595	35	33	279	263	150
32	N37SH	12.3	12	1.23	1.2	11.5	11.3	915	900	20	1595	37	35	295	279	150
33	N38SH	12.5	12.2	1.25	1.22	11.8	11.4	939	908	20	1595	38	36	303	287	150
34	N40SH	12.7	12.5	1.27	1.25	12.1	11.8	963	939	20	1595	40	38	318	303	150
35	N42SH	13	12.8	1.3	1.28	12.4	12	987	955	20	1595	42	40	342	326	150
36	N45SH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	20	1595	45	43	358	342	150
37	N48SH	14	13.8	1.4	1.38	13.3	12.9	1059	1027	20	1595	48	46	383	367	130
38	N50SH	14.2	14	1.42	1.4	13.5	13.1	1074	1042	20	1595	50	48	398	383	130
39	N25UH	10	9.6	1	0.96	9.6	9.2	764	732	25	1990	25	22	199	175	180
40	N28UH	10.8	10.4	1.08	1.04	10.2	9.8	812	780	25	1990	28	26	223	207	180
41	N30UH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	25	1990	30	28	239	223	180
42	N33UH	11.5	11.3	1.15	1.13	11	10.6	876	844	25	1990	33	31	263	247	180
43	N35UH	11.9	11.7	1.19	1.17	11.3	11	900	876	25	1990	35	33	279	263	180
44	N38UH	12.5	12.2	1.25	1.22	11.8	11.4	939	908	25	1990	38	36	303	287	180
45	N40UH	12.7	12.5	1.27	1.25	12.2	11.8	971	939	25	1990	40	38	318	303	180
46	N42UH	13	12.8	1.3	1.28	12.4	12	987	955	25	1990	42	40	342	326	180
47	N45UH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	25	1990	45	43	358	342	150
48	N48UH	14	13.8	1.4	1.38	13.3	12.9	1059	1027	25	1990	48	45	383	367	150
49	N50UH	14.2	13.9	1.42	1.39	13.5	13.1	1074	1042	24	1911	50	48	398	383	150
50	N28EH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	30	2388	28	26	223	207	200
51	N30EH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	30	2388	30	28	239	223	200
52	N33EH	11.5	11.3	1.15	1.13	11	10.6	876	844	30	2388	33	31	263	247	200
53	N35EH	11.9	11.7	1.19	1.17	11.3	11	900	876	30	2388	35	33	279	263	200
54	N38EH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	30	2388	38	36	303	287	200
55	N40EH	12.7	12.4	1.27	1.24	12.2	11.8	971	939	30	2388	40	38	318	303	200
56	N42EH	13	12.8	1.3	1.28	12.4	12	987	955	30	2388	42	40	334	318	200
57	N45EH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	30	2388	45	43	358	342	200
58	N48EH	14	13.8	1.38	1.38	13.3	12.9	1059	1027	30	2388	48	46	383	367	200
59	N28AH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	33	2626	28	26	223	207	220
60	N30AH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	33	2626	30	28	239	223	220
61	N33AH	11.5	11.3	1.15	1.13	11	10.6	876	844	33	2626	33	31	263	247	220
62	N35AH	11.9	11.7	1.19	1.17	11.5	11	915	876	33	2626	35	33	279	263	220
63	N38AH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	33	2626	37	35	294	279	220
64	N40AH	12.7	12.4	1.27	1.24	12.1	11.8	971	939	33	2626	39	37	310	294	220
65	N42AH	13	12.8	1.3	1.28	12.4	12	987	955	33	2626	42	40	334	318	220
66	N45AH	13.5	13.3	1.35	1.33	12.6	12.2	1003	971	33	2626	45	43	358	342	220
67	N28TH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	40	3185	28	26	223	207	240
68	N30TH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	40	3185	30	28	239	223	240
69	N33TH	11.5	11.3	1.15	1.13	11	10.6	876	844	40	3185	33	31	263	247	240
70	N35TH	11.9	11.7	1.19	1.17	11.5	11	915	876	40	3185	35	33	279	263	240
71	N38TH	12.4	12.2	1.24	1.22	11.8	11.4	939	908	40	3185	37	35	294	279	240
72	N40TH	12.7	12.4	1.27	1.24	12.1	11.8	971	939	40	3185	39	37	310	294	240
73	N28RH	10.8	10.4	1.08	1.04	10.4	9.8	811	780	45	3583	28	26	223	207	260
74	N30RH	11.2	10.8	1.12	1.08	10.6	10.1	844	804	45	3583	30	28	239	223	260
75	N33RH	11.5	11.3	1.15	1.13	11	10.6	876	844	45	3583	33	31	263	247	260
76	N35RH	11.9	11.7	1.19	1.17	11.5	11	915	876	45	3583	35	33	279	263	260
