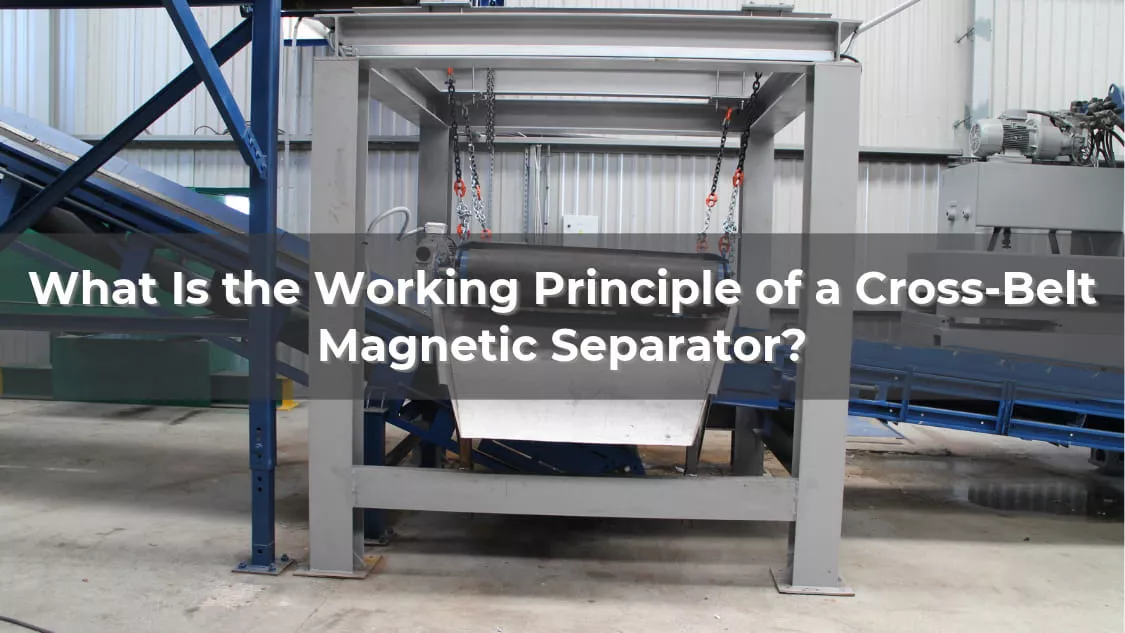

What Is the Working Principle of a Cross-Belt Magnetic Separator?

Have you ever wondered how a conveyor system can automatically remove iron pieces from tons of materials without stopping production or using manual sorting? This is where a Cross-Belt Magnetic Separator becomes an important solution. By using a powerful magnetic field and a continuously running cross belt, it can attract and remove unwanted ferrous metals from materials such as coal, crushed stone, mining ore, and recycling waste.

But how does a cross belt magnetic separator work in a real production line? What happens when iron particles pass under the magnetic field, and how can you choose the right model for your conveyor system? In this guide, we will explain the cross belt magnetic separator working principle step by step, show the main components and separation process, and answer common questions about installation, efficiency, maintenance, and equipment selection. Whether you are working in mining, quarrying, recycling, or bulk material handling, this article will help you better understand how this equipment can solve iron removal problems in your operation.

Table of Contents

• Cross-Belt Magnetic Separator Working Principle Diagram
• How Does a Cross-Belt Magnetic Separator Work Step by Step?
• Frequently Asked Questions About Cross-Belt Magnetic Separators
• Conclusion

Cross-Belt Magnetic Separator Working Principle Diagram

Before understanding the cross belt magnetic separator working mechanism, let's first look at its basic structure. Although different manufacturers may use different designs, most industrial cross-belt magnetic separators include a main magnetic assembly, a suspended frame, a cross belt, a drive system, and a cleaning mechanism. These components work together above a conveyor belt to continuously remove unwanted iron materials.

Note: This diagram explains the basic cross belt magnetic separator construction and working principle. In actual industrial applications, the separator is usually installed above or across a conveyor belt. The magnetic system attracts ferrous materials, while the cross belt continuously carries the collected iron away from the magnetic zone and releases it into a separate collection area.

How Does a Cross-Belt Magnetic Separator Work Step by Step?

So, how does a cross belt magnetic separator work in a real conveyor system? The process is actually easier to understand than it looks. The equipment continuously creates a magnetic field above the material flow, attracts unwanted iron pieces, and then automatically moves these collected metals away from the production line. Let's break down the cross belt magnetic separator working process into four simple steps.

Step 1: Material Moves on the Conveyor Belt

First, mixed materials such as coal, crushed stone, mineral ore, or recycling waste travel along the main conveyor belt. The material passes under the suspended magnetic separator, where the system checks for unwanted ferrous metals. A stable and evenly distributed material flow helps the magnetic field reach more particles and improves iron removal efficiency.

Step 2: Magnetic Field Attracts Ferrous Materials

When iron pieces, steel fragments, or other magnetic materials enter the magnetic field area, they are attracted upward and separated from the main material flow. This is the key part of the cross belt magnetic separator operation principle: magnetic force captures ferrous materials while non-magnetic materials continue moving forward on the conveyor.

Step 3: Cross Belt Removes Collected Iron

After the iron materials are attracted to the magnetic surface, the secondary cross belt moves continuously across the magnetic separator and carries the collected metal away from the magnetic zone. This automatic cleaning process allows the separator to operate continuously without manual removal and is especially useful for large-scale bulk material handling systems.

Step 4: Iron Materials Are Discharged Separately

Finally, when the collected iron reaches the end of the cross belt, it leaves the magnetic area and drops into a separate collection point. The cleaned material continues its original transportation route, while removed tramp iron is collected for disposal or recycling.

In simple terms, the cross belt magnetic separator material separation process combines three actions: attracting iron with a magnetic field, carrying it away with a moving cross belt, and automatically discharging it. This makes it a reliable solution for continuous iron removal in mining, quarrying, recycling, and bulk material industries.

Frequently Asked Questions

1. How does a cross belt magnetic separator remove iron from conveyor belts?

A cross belt magnetic separator removes iron by creating a magnetic field above the conveyor belt. When ferrous materials such as iron pieces, steel fragments, or tramp metal pass through the magnetic area, they are attracted away from the material flow and lifted toward the separator. The moving cross belt then carries these captured metals out of the magnetic zone and releases them into a separate discharge area. For best results, the separator should be installed at the correct height above the conveyor, because excessive distance between the magnet and material surface can reduce magnetic attraction strength.

2. Why is my cross belt magnetic separator not removing enough iron from the material?

Low iron removal performance is usually related to installation conditions rather than the magnetic separator itself. Common causes include excessive conveyor speed, material layers that are too thick, incorrect suspension height, or iron particles that are too deep inside the material flow. For example, if the conveyor carries a thick layer of crushed stone, iron pieces underneath may be outside the effective magnetic field range. Checking conveyor speed, adjusting the separator height, and controlling feed thickness are practical first steps before considering equipment replacement.

3. What is the difference between a permanent magnet and an electromagnetic cross belt separator?

The main difference is the source of the magnetic field. A permanent cross belt magnetic separator uses permanent magnets to generate magnetic force without continuous electrical power, making it suitable for many general iron removal applications. An electromagnetic model can provide adjustable magnetic intensity and is often selected for demanding applications where deeper penetration or stronger lifting capacity is required. The correct choice depends on factors such as material depth, conveyor speed, iron particle size, and operating environment. A stronger magnetic system is not always necessary if the application requirements can already be achieved with a permanent magnet design.

4. What is the difference between a cross belt magnetic separator and an overband magnetic separator?

A cross belt magnetic separator and an overband magnetic separator are similar because both remove ferrous metals from conveyor systems, but their designs are different. A cross belt separator uses a secondary belt that runs across the magnetic unit to automatically discharge collected iron. An overband magnetic separator is a broader term often used for suspended magnetic separators installed above conveyors. The best choice depends on conveyor layout, material characteristics, required cleaning method, and whether continuous automatic discharge is needed.

5. Can a cross belt magnetic separator be used for mining and quarry applications?

Yes, cross belt magnetic separators are widely used in mining, quarrying, and mineral processing because these industries often handle large volumes of bulk materials containing unwanted iron. Typical applications include removing tramp iron from crushed stone, coal, sand, gravel, and ore processing lines. Before selecting equipment, it is important to consider conveyor width, material capacity, particle size, and the expected amount of iron contamination, because heavy-duty mining applications usually require stronger magnetic systems and more durable structures.

Conclusion

So, what is the working principle of a cross belt magnetic separator? It uses a magnetic field to attract ferrous materials from a moving conveyor flow, while a continuously running cross belt carries the collected iron away for automatic discharge. This makes it an efficient solution for iron removal in mining, recycling, quarrying, and bulk material handling applications.

Understanding how does a cross belt magnetic separator work helps you choose the right equipment based on factors such as conveyor width, material type, belt speed, and required separation efficiency. If you need an industrial cross belt magnetic separator, you can contact MAG-SPRING to discuss your material conditions, processing capacity, and iron removal requirements for a suitable solution.
