What Are Ferrite Arc Magnets? Uses, Advantages, and Buying Guide
By Mag Spring Engineering Team – 15+ years in ferrite magnet manufacturing. We specialize in custom ferrite arc magnets for DC motors, providing high-performance magnetic solutions for automotive, industrial, and household appliance applications.
Ferrite arc magnets, also commonly referred to as ceramic arc magnets or ferrite segment magnets, are specialized curved permanent magnets widely used in electric motors, generators, and other industrial applications. Made primarily from iron oxide combined with strontium or barium compounds, these magnets offer excellent corrosion resistance, high coercivity, and affordability—making them the most produced type of permanent magnet globally.
Unlike flat ferrite magnets, arc-shaped ferrite magnets are precision-engineered with a curved, tile-like structure to fit cylindrical motor rotors, stators, and rotary assemblies. This unique design enables them to create consistent, uniform magnetic fields in compact, high-speed mechanical systems, solving the core challenge of magnetic field distribution in rotating equipment.
Our Y35 ferrite segment magnets deliver exceptional performance at competitive factory prices. A leading automotive motor customer reported a 15% torque improvement after adopting our Y35 grade arc ferrite magnets in their DC motor assembly, with stable performance in high-temperature vehicle operating environments.
Mag Spring is a certified ferrite magnet manufacturer with ISO 9001 quality management system, RoHS, and Reach compliance. All our custom ferrite arc magnets for DC motors meet international industry standards for magnetic performance, dimensional accuracy, and environmental safety.
For premium ferrite arc magnets and a complete range of ferrite magnet solutions, explore our products at Mag Spring — a trusted Chinese manufacturer of high-quality ferrite magnets.
What Are Ferrite Permanent Magnets?
Ferrite magnets (also known as ceramic magnets) are a family of permanent magnets composed mainly of iron oxide (Fe₂O₃) combined with strontium oxide (SrO) or barium oxide (BaO), and other elements. They are ferrimagnetic ceramic materials, meaning they can be magnetized to produce a persistent magnetic field while remaining electrically non-conductive.
Compared to stronger options like neodymium magnets, ferrite permanent magnets have lower magnetic energy but excel in:
- High resistance to demagnetization (strong coercivity)
- Excellent corrosion resistance (no coating needed in most environments)
- Low cost and simple production
- Wide operating temperature range: typically -40°C to +200°C (up to +250°C in some grades)
- Stable performance in harsh environments (humidity, dust, and chemical exposure)
- Zero risk of electrical short circuits due to non-conductive properties
Due to these advantages, ferrite magnets dominate the global magnet market by volume and are essential in everyday industrial and consumer products. Mag Spring is one of the leading ferrite magnet manufacturers in China, offering consistent quality and competitive pricing for all ferrite magnet types.

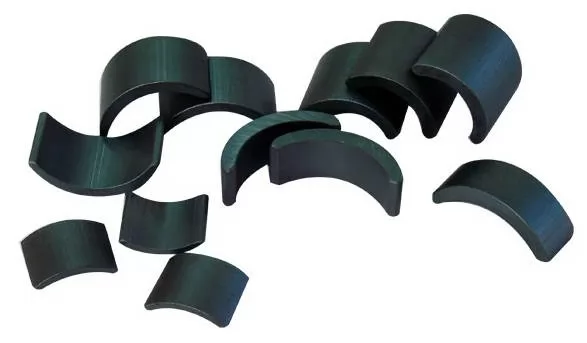

What Are Ferrite Arc Magnets?
Ferrite arc magnets feature a curved, segment-shaped (arc or tile) design, ideal for cylindrical assemblies like motor rotors and stators. This geometry allows them to form complete circular magnetic rings when assembled together, generating strong, uniform magnetic fields in compact spaces without gaps or energy loss.
These specialized magnets are available in two core types: isotropic ferrite arc magnets (easy to magnetize in any direction) and anisotropic ferrite arc magnets (high-performance, fixed magnetic orientation), catering to low-demand and high-performance applications respectively.
Key benefits include:
- High magnetic field strength relative to size and cost
- Long lifespan and resistance to demagnetization
- Affordability compared to rare-earth alternatives
- Perfect fit for cylindrical rotary equipment
- Low maintenance and long-term dimensional stability
They are especially popular in DC motors for household appliances, automotive components, power tools, and more, where reliable performance and cost-efficiency are critical.
Core Advantages of Ferrite Arc Magnets
Ferrite arc magnets stand out from other magnetic materials with a unique set of advantages that make them irreplaceable in mass industrial production:
- Unbeatable Cost-Efficiency: The lowest cost per unit of magnetic performance among all permanent magnets, ideal for high-volume manufacturing
- Superior Demagnetization Resistance: Maintain magnetic properties even under strong reverse magnetic fields and high vibration
- Weather & Corrosion Proof: Oxide-based material requires no plating or coating, works in outdoor, humid, and marine environments
- Wide Temperature Tolerance: Stable performance from -40°C to 250°C, suitable for extreme automotive and industrial environments
- Electrically Insulating: Non-conductive, eliminating electromagnetic interference and short-circuit risks
- Customizable Geometry: Adjustable arc radius, angle, thickness, and length to match any motor or assembly design
How Are Ferrite Arc Magnets Manufactured?
Ferrite arc magnets are produced using powder metallurgy, a cost-effective ceramic sintering process. The main steps include:
- Raw Material Preparation: Iron oxide (Fe₂O₃) is mixed with strontium carbonate (SrCO₃) or barium carbonate (BaCO₃), plus additives for property enhancement.
- Calcination / Pre-sintering: The mixture is heated to 1000–1350°C to form the ferrite compound and drive off volatiles.
- Grinding: The calcined material is milled into fine powder (particles often <2 microns) for uniform properties.
- Pressing: Powder is pressed into arc-shaped blanks (often in a magnetic field for anisotropic orientation to boost performance).
- Sintering: Blanks are heated to high temperatures (around 1200–1300°C) to densify and bond particles, developing full magnetic properties.
- Grinding & Finishing: Due to brittleness, final shaping uses diamond grinding and polishing for precise dimensions.
- Magnetization: Magnets are placed in a strong external magnetic field to align domains and impart permanent magnetism.
- Quality Inspection: Dimensional accuracy, magnetic performance, and appearance testing to meet industry standards
This process yields hard, brittle magnets with excellent stability. For custom sizes, shapes, and grades of ferrite arc magnets (or any other ferrite shapes), Mag Spring offers precision-manufactured solutions tested to industry standards.
Use of Ferrite Arc Magnets in Motors
Ferrite arc magnets are specifically engineered for electric motors, generators, and alternators. In a typical permanent magnet DC motor, arc segments form a ring on the rotor or stator with alternating polarity. As the rotor spins near copper coils, it induces electric current via electromagnetic induction.
The curved design maximizes magnetic flux density in the air gap, improving motor efficiency, torque output, and energy savings. Their high coercivity makes them ideal for dynamic environments with vibration or opposing fields.
They outperform in cost-sensitive, high-volume applications like automotive starters, windshield wiper motors, and household appliance motors.
Common Applications of Ferrite Arc Magnets
Thanks to their reliability and low cost, ferrite arc magnets are used in countless industries across residential, automotive, industrial, and medical sectors:
- Permanent magnet motors (rotors and stators)
- Automotive components and power tools
- Speakers, receivers, and audio equipment
- Wind turbines and generators
- Sensors, couplings, and magnetic assemblies
- MRI machines and medical devices
- Industrial machinery and instruments
- Household appliances (fans, washing machines, refrigerators)
- Electric tools and garden machinery
- Automotive fans, fuel pumps, and seat adjustment motors
Complete Buying Guide for Ferrite Arc Magnets
Purchasing high-quality ferrite arc magnets requires careful consideration of key parameters to match your application requirements. Follow this professional buying guide to make the right choice:
1. Define Core Specifications
- Arc dimensions: inner radius, outer radius, arc angle, width, and thickness
- Magnetic grade: Y30, Y35, Y38, Y40 (higher grades mean stronger performance)
- Magnetic orientation: isotropic (general use) or anisotropic (high performance)
- Operating temperature: select grades compatible with your working environment
2. Verify Magnetic Performance
Check key magnetic parameters including remanence (Br), coercivity (Hcb), intrinsic coercivity (Hcj), and maximum energy product (BHmax) to ensure they meet your motor or assembly requirements.
3. Manufacturing & Quality Standards
Choose manufacturers with ISO certification, complete quality control systems, and professional testing equipment. Avoid low-quality products with unstable magnetic properties and short service life.
4. Customization Capabilities
For special applications, select suppliers that offer custom arc sizes, magnetization directions, surface treatments, and small-batch trial production.
5. Cost & Lead Time
Balance price and quality—ultra-low-cost products often compromise performance and durability. Confirm lead times for mass production and sample orders.
Our Full Range of Ferrite Magnets
In addition to high-performance ferrite arc magnets, Mag Spring manufactures a complete selection of ferrite magnet shapes to meet diverse industrial needs:
- Ferrite Disc Magnets – Ideal for sensors, crafts, packaging, and holding applications.
- Ferrite Bar Magnets – Perfect for educational experiments, separation equipment, and simple magnetic assemblies.
- Ferrite Block Magnets – Widely used in magnetic separators, loudspeakers, and heavy-duty holding systems.
- Ferrite Ring Magnets – Commonly applied in loudspeakers, magnetic couplings, and rotor assemblies.
- Ferrite Arc / Segment Magnets – Optimized for electric motors and generators (the focus of this page).
All our ferrite magnets are produced in China under strict quality control. As experienced ferrite magnet manufacturers in China, we can customize dimensions, grades (Y30, Y35, Y38, etc.), and magnetic orientation to match your exact requirements.
Key Features of Ferrite Arc Magnets
- Manufactured via powder metallurgy with low recoil permeability
- High coercive force and strong resistance to demagnetization
- Hard and brittle (requires diamond tools for machining)
- Excellent corrosion resistance (oxide-based composition)
- Operating temperature: -40°C to +200°C (some grades higher)
- Customizable arc geometry for various rotary applications
Why Choose Ferrite Magnets from Mag Spring?
Mag Spring is a professional and reliable ferrite magnet manufacturer based in China. With advanced production facilities and years of expertise, we deliver certified, high-performance ferrite magnets—including arc, disc, block, bar, and ring shapes—at competitive prices.
Whether you need standard ferrite arc magnets for motors or fully customized solutions, our team ensures every product meets strict quality standards for demanding applications. We support small to large volume orders with fast lead times and excellent customer service.
Our core strengths include:
- 15+ years of professional ferrite magnet manufacturing experience
- Complete customization for size, grade, and magnetization
- Strict quality inspection and third-party certification support
- Competitive factory direct pricing and fast delivery
- Professional technical support for motor and assembly design
Browse our complete ferrite magnet collection:
- Ferrite Arc Magnets
- Ferrite Disc Magnets
- Ferrite Bar Magnets
- Ferrite Block Magnets
- Ferrite Ring Magnets
Frequently Asked Questions
What is the difference between ferrite arc magnets vs neodymium in automotive applications?
Ferrite arc magnets are more cost-effective, corrosion-resistant, and heat-stable for standard automotive DC motors like wipers, fans, and seat adjusters. Neodymium magnets offer higher magnetic strength but cost more and require coating for corrosion protection, making them suitable for high-performance automotive motors with strict space limitations.
What factors affect Y35 ferrite segment magnets price?
Y35 ferrite segment magnets price is mainly determined by order quantity, custom dimensions, arc angle complexity, magnetization requirements, and delivery time. Mass production orders enjoy lower unit prices from our direct factory.
Can you customize ferrite arc magnets for specific DC motor designs?
Yes, Mag Spring provides fully custom ferrite arc magnets for DC motors, including custom arc radius, thickness, grade, magnetization direction, and surface treatment to match your motor rotor and stator requirements.
Are your ferrite arc magnets RoHS and ISO certified?
All our ferrite arc magnets comply with RoHS, Reach environmental standards, and our manufacturing process is certified with ISO 9001 quality management system to ensure consistent product quality.
What is the lead time for custom ferrite arc magnet orders?
Sample orders usually take 7-10 days, while mass production orders take 15-25 days based on order quantity and customization requirements.
Conclusion
Ferrite arc magnets remain a cornerstone of modern industry due to their durability, cost-effectiveness, and versatility. As the optimal magnetic solution for electric motors, generators, and rotary equipment, they deliver reliable performance in nearly every industrial and consumer product.
Combined with our full range of disc, bar, block, and ring ferrite magnets, Mag Spring provides one-stop solutions for all your ferrite magnet needs. Our professional buying guide and custom manufacturing capabilities ensure you get the perfect magnetic components for your project.
