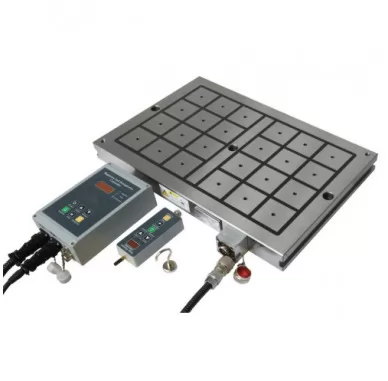

As a leading magnetic chuck manufacturer in China, MAG SPRING offers high-performance Electric Permanent Magnetic Chucks (EP50 Series). These chucks feature 50mm×50mm poles with a strong clamping force of 15-17 kgf/cm², making them ideal for precision machining on drilling, milling machines, and CNC machining centers. They provide safe, energy-efficient, and distortion-free workpiece clamping with 5-sided accessibility.
_1711453571_WNo_388d381.webp)
Product Overview

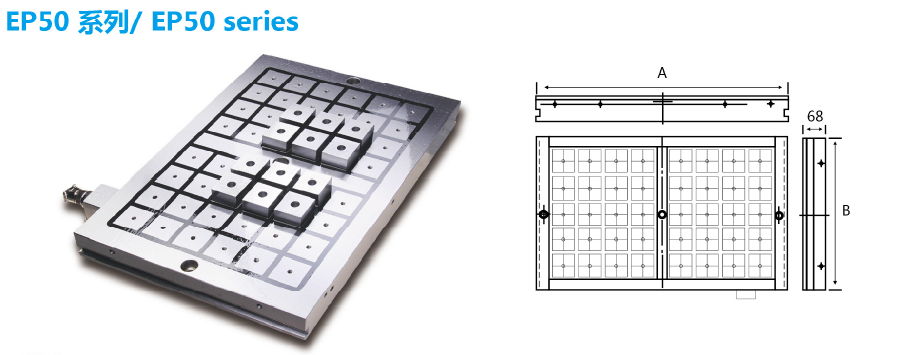

The EP50 Series Electric Permanent Magnetic Chuck comprises 50mm×50mm poles and delivers a powerful clamping force of 15-17 kgf/cm². The magnetic force can be precisely predetermined by counting the number of poles in contact with the workpiece (minimum 4 poles recommended). The controller completes magnetization or demagnetization in just 0.5 to 5 seconds. These chucks are rigorously tested for slipping force, waterproof performance, temperature rise, electrical safety, and demagnetization reliability.
They are best suited for workpieces larger than 250×250 mm and at least 10 mm thick, offering excellent performance for normal and heavy-duty machining operations.

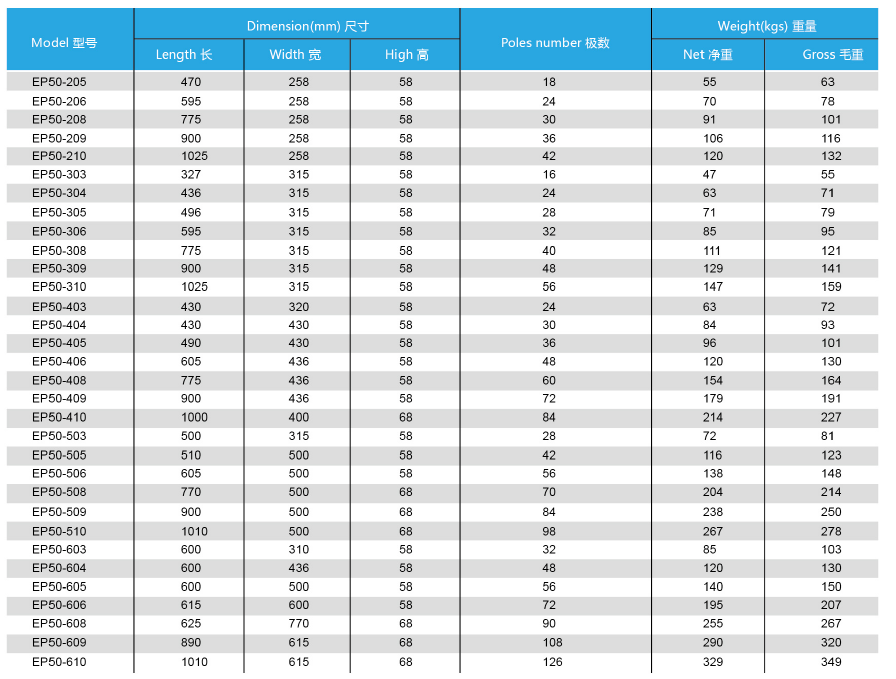

Technical Specifications
- Pole Size: 50mm × 50mm
- Clamping Force: 15-17 kgf/cm²
- Minimum Workpiece Size: 250×250 mm and ≥10 mm thick
- Magnetization/Demagnetization Time: 0.5–5 seconds
- Controller: Fast and reliable magnetizing/demagnetizing
- Applications: Drilling, milling, and CNC machining centers
- Custom Made: Available upon request
Standard Features and Benefits
Flexibility:
- Single set-up machining with 5-sided accessibility
- Workpieces larger than the table are fully machinable
Safety:
- No electric power supply required during clamping
- Constant and uniform magnetic power over the entire area
- No temperature rise during operation, eliminating workpiece deformation and maintaining high precision
Efficiency:
- Easy and quick positioning, significantly reducing set-up time
- High accuracies and tight tolerances
Cost-effectiveness:
- No maintenance required
- No machine modifications needed
- Reduced tool consumption
Applications
Electric Permanent Magnetic Chucks EP50 Series are widely used for:
- Normal and heavy-duty drilling and milling
- CNC machining centers
- Precision grinding and machining of medium to large workpieces
- Applications requiring strong, uniform clamping without power during operation
Production and Delivery
- Production Lead Time: 7–30 days (depends on quantity and customization)
- Minimum Order Quantity: Contact us for details (samples available)
- Packaging: Standard export brown carton or wooden case
- Custom Packaging: Available based on customer requirements
- Logistics: Reliable global shipping via Ningbo or Shanghai ports
- Payment Terms: T/T
- Customized Service: Tailored pole configurations and sizes supported
Quality and Compliance
Our Electric Permanent Magnetic Chucks undergo strict quality control and comprehensive testing:
- Slipping force test
- Waterproof test
- Temperature rise test
- Electrical and demagnetization tests
- Full compliance with EU RoHS environmental standards
Certifications & Compliance
- ISO9001 Quality Management System Certified
- ISO14001 Environmental Management System Certified
- Products fully comply with EU RoHS Directive
FAQs
Q: What is the clamping force of the EP50 Series?
A: The clamping force is 15-17 kgf/cm² with 50mm×50mm poles.
Q: Do these chucks require continuous power during machining?
A: No, once magnetized, they maintain full clamping force without any electric power supply.
Q: What is the minimum workpiece size?
A: Best used for workpieces at least 250×250 mm and 10 mm thick (minimum 4 pole contact faces recommended).
Q: Can they be used for precision machining?
A: Yes, there is no temperature rise, ensuring high accuracy and no workpiece deformation.
