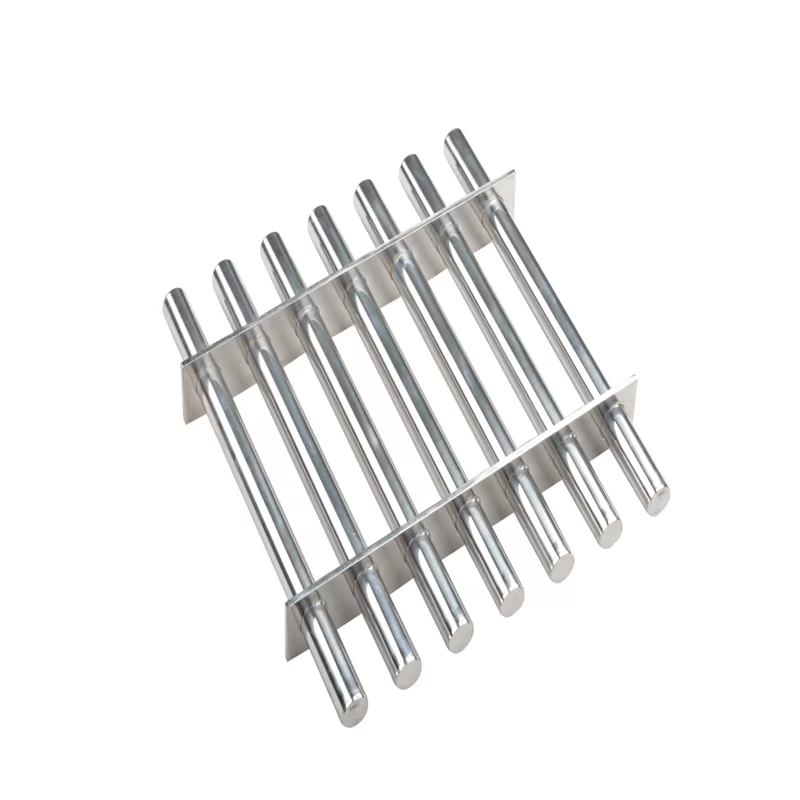

Grid Magnet | Neodymium Magnetic Grid Separator for Bulk Material Purification

Grid Magnet is a high-efficiency magnetic separation device manufactured with food-grade stainless steel and premium rare earth magnets. It is designed for easy installation inside hoppers, chutes, housings, and storage bins to effectively capture and remove ferrous metal contaminants from free-flowing granular and powder materials. This grid magnet is widely applied in the food industry, plastic processing, chemical industry, pharmaceutical industry, and other manufacturing sectors to ensure material purity and protect production equipment.

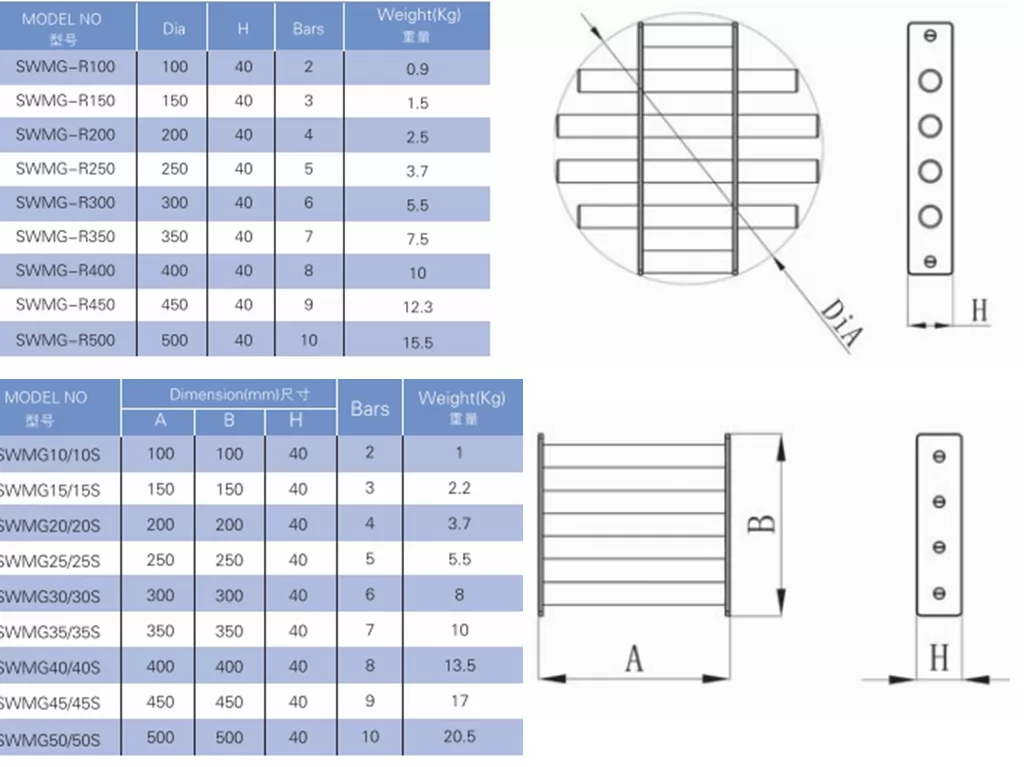

Key Features & Technical Parameters

1. Housing Material: Durable SS304 or SS316L stainless steel for corrosion resistance and hygiene compliance

2. Surface Treatment: Professional sand blasting or mirror polishing for smooth material flow

3. Magnetic Intensity: Adjustable from 1500GS up to 13000GS to meet different separation requirements

4. Working Temperature: Heat-resistant design from 80℃ up to 350℃ for high-temperature applications

5. Magnet Materials: Available in Neodymium-Iron-Boron, Samarium-Cobalt, and Ceramic ferrite magnets

6. Food Grade Welding: Full food-grade welding process available for food and pharmaceutical applications

7. Customization: Fully customizable with logo, brand, pattern printing, and size customization

8. MOQ: Flexible order quantity with 1PC minimum order for prototype and testing

9. Lead Time: Standard production lead time of 30 days

10. Packing: Secure standard brown carton or export wooden case packaging

11. Payment Term: T/T payment terms accepted

12. Loading Port: Convenient loading from Ningbo or Shanghai ports

Product Applications

Our Grid Magnet is an essential component in material handling systems, compatible with hopper magnet installations and magnetic grid filter systems. It delivers reliable iron removal performance for grains, sugar, plastics, chemicals, and pharmaceutical raw materials, making it the ideal choice for industrial magnetic separation solutions.
