Magnetic Coolant Separators: Enhancing CNC Machining Precision and Tool Life

In the high-stakes world of precision manufacturing, the quality of your coolant fluid is just as critical as the quality of your cutting tools. Contaminants like fine iron swarf, grinding dust, and metal particles can wreak havoc on CNC machining operations, leading to premature tool wear, poor surface finishes, and costly equipment downtime. Enter the magnetic coolant separator—an essential device designed to continuously remove ferrous contaminants from liquid coolants, ensuring optimal performance for metalworking processes.

This guide explores the working principles, manufacturing insights, and tangible benefits of magnetic coolant separators, highlighting why they are a cornerstone of modern industrial filtration.

What is a Magnetic Separator?

A magnetic separator is a device that utilizes magnetic force to isolate magnetic materials from non-magnetic mixtures. In industrial settings, these devices are vital for purifying fluids and bulk materials. While widely used in mining and recycling, their application in fluid systems—specifically as magnetic coolant separators—is transformative for the metalworking industry.

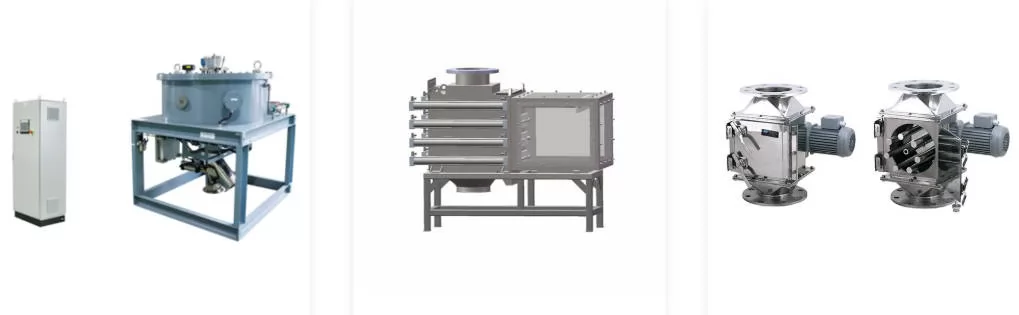

These separators come in two primary forms:

• Permanent Magnetic Separators: Utilizing high-energy rare-earth magnets (like Neodymium) to generate a constant, powerful magnetic field without electricity.
• Electromagnetic Separators: Using an electric current to generate a magnetic field, often allowing for variable strength control.

For most coolant applications, permanent magnetic separators offer the best balance of reliability, energy efficiency, and maintenance-free operation.

The Role of Magnetic Coolant Separators in Metalworking

Magnetic coolant separators are specialized filtration units designed to remove ferrous (iron-containing) particles from coolant liquids used in grinding, honing, milling, and turning operations. Even microscopic metal particles can act as abrasives, accelerating tool wear and damaging sensitive pump seals and bearings.

By integrating a separator into the coolant circulation loop, manufacturers can maintain a clean fluid environment, directly impacting product quality and operational costs.

How Do Magnetic Coolant Separators Work?

The operation of a magnetic coolant separator is elegantly simple yet highly effective. The contaminated coolant flows over or through a rotating magnetic drum or a static magnetic tube array containing high-intensity permanent magnets.

1. Attraction: As the fluid passes the magnetic field, ferrous particles are instantly attracted to the surface of the drum or tubes.
2. Separation: The clean, non-magnetic coolant flows freely out of the separator, ready to be recirculated to the machine tool.

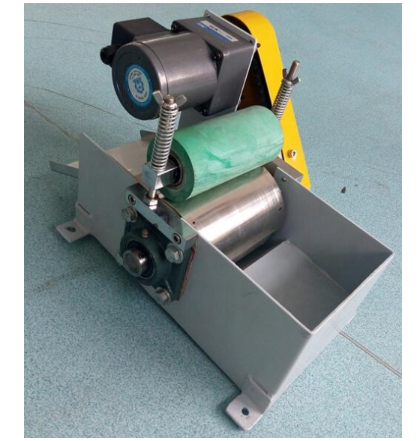

3. Removal: The captured metal particles adhere to the magnetic surface. In automatic models (like drum separators), a scraper blade or wiper continuously removes the sludge as the drum rotates, depositing it into a collection tray. In manual units, the magnets can be periodically cleaned.

For liquid applications requiring high-efficiency filtration, wet magnetic drum separators are the industry standard, offering continuous self-cleaning capabilities ideal for high-volume machining centers.

Manufacturing Excellence: How MagSpring Builds Superior Separators

At MagSpring, the manufacturing of magnetic coolant separators is driven by precision engineering and high-grade materials:

• Design & Engineering: We optimize magnetic circuit designs to maximize flux density on the drum surface, ensuring even fine micron-sized particles are captured.
• Premium Magnet Core: Our separators utilize sintered Neodymium Iron Boron (NdFeB) magnets, providing the strongest possible magnetic field in a compact form factor.
• Durable Housing: Constructed from high-grade stainless steel (SS304/SS316L), our housings resist corrosion from aggressive coolants and ensure a smooth flow path.
• Rigorous Testing: Every unit undergoes strict quality control, testing magnetic strength, flow rates, and separation efficiency to guarantee performance specs are met.

Key Benefits for Your Manufacturing Process

Investing in a high-quality magnetic coolant separator delivers immediate and long-term ROI:

1. Extended Tool Life: By removing abrasive metal particles, cutting tools and grinding wheels last significantly longer, reducing replacement costs.
2. Improved Surface Finish: Clean coolant prevents particle embedding in the workpiece, resulting in superior surface quality and tighter tolerances.
3. Enhanced Equipment Reliability: Protects pumps, nozzles, and valves from clogging and wear, minimizing unplanned downtime.
4. Prolonged Coolant Life: Removing contaminants slows down coolant degradation, reducing the frequency of costly fluid changes and disposal fees.
5. Increased Productivity: With fewer tool changes and less machine maintenance, overall throughput and efficiency increase.

Applications Across Industries

Magnetic coolant separators are versatile solutions used in various sectors:

• CNC Machining & Metalworking: Essential for milling, turning, and grinding operations where steel and cast iron are processed.
• Automotive Manufacturing: Ensures precision in engine component machining and transmission part production.
• Aerospace: Critical for maintaining the ultra-high surface finish standards required for aircraft components.
• Bearing & Gear Production: Protects precision grinding machines from contamination during hardening and finishing processes.

While primarily used for oil and water-based coolants, the underlying magnetic separation technology is also adaptable for other liquid filtration needs. For instance, similar high-intensity principles are applied in 13,000GS magnetic strainers for pipeline filtration, ensuring purity in chemical and food processing lines.

Choosing the Right Solution from MagSpring

Not all separators are created equal. MagSpring offers a comprehensive range of magnetic separation solutions tailored to your specific flow rate and contamination levels:

• Wet Drum Separators: Ideal for high-volume coolant systems with heavy sludge loads. See our wet magnetic drum separator series.
• Self-Cleaning Hump Separators: While often used for dry grains (like our wheat separation units), the auto-cleaning mechanism inspires our robust designs for heavy-duty industrial fluids.
• High-Intensity Pipeline Filters: For inline protection, our 13,000GS magnetic strainers provide maximum capture efficiency.
• Custom Solutions: Need a specific size or magnetic strength? Our engineering team can customize a magnetic separator to fit your existing tank or pipeline.

Conclusion

In the competitive landscape of modern manufacturing, efficiency and precision are paramount. A magnetic coolant separator is not just an accessory; it is a strategic investment that protects your capital equipment, extends tool life, and ensures the highest quality end products.

Partner with MagSpring for superior magnetic filtration solutions. With our expertise in permanent magnet technology and commitment to quality, we provide reliable separators that keep your coolant clean and your production running smoothly. Contact us today to find the perfect magnetic separation solution for your facility.
