What are magnetic grids and who are the best magnetic grid suppliers?

If you want your items to be completely free of impurities, you are going to need to invest in some magnetic separators. In the following article, we will talk about the significance of magnetic separation, what magnetic grids are, and which companies are the most reputable magnetic grid suppliers.

Why magnetic separation is important?

In the process of magnetic separation, heavy machinery including conveyor belts and industrial magnets are utilized as a part of the sorting procedure to separate ferrous materials. Several different types of manufacturing rely on magnetic separation to guarantee that their final products are free of impurities. For example, the pharmaceutical industry and the food and beverage industry rely on magnetic separation to maintain the quality of their products and keep them healthy. Magnetic separators are remarkable pieces of equipment because they are so simple to operate. Many separators can function with very little or no input from a human operator. Therefore, magnetic separation processes and the magnetic separator that we provide should be considered the beating heart of every food processing industry, as they are the key to the sector's planned growth.

Introduction magnetic grids:

Magnetic grid separators are an effective and efficient approach to separating materials of varying sizes and shapes in bulk material handling. When utilized in combination with other forms of separation, such as sieving and sorting, they are especially useful in maximizing separation efficiency. Magnetic grid separators make use of powerful magnets to attract ferrous materials, which are subsequently separated from the rest of the material using the magnetic field created by the grid.

They can remove particles from dry materials that are free-flowing, such as powdered plastics, sugar, tea, and a variety of different chemicals. Separators can isolate ferromagnetic components such as iron, nickel, cobalt, and manganese from the rest of the mixture. The majority of these components are comprised of mild steel, with some stainless steel sheets and manganese being present. Magnets are incapable of separating non-magnetic materials such as aluminum, silver, gold, and copper, in addition to many other types of stainless steel sheets and other items made of stainless steel.

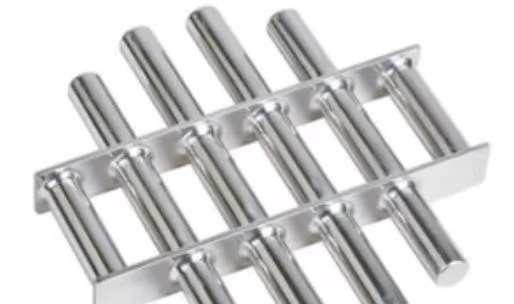

Magnetic Grid suppliers

Construction of magnetic grids:

In a magnetic grid, each bar of neodymium magnetism contributes to the overall strength of the grid. Because these are situated in the heart of your product flow, they can collect ferrous particles as small as 30 microns in size even though they are the smallest of their kind. Even the scrapings made of stainless steel are collected. Because of their minute size, these particles are undetectable by even the most sensitive metal detectors.

The neodymium magnetic bars that are contained within our grids are contained within separator tubes, which eliminates the requirement for manual wiping. When the unit containing the magnetic bars is removed from the extractor tubes, the metal contamination that was caught falls off of the magnetic bars themselves. The most efficient method involves placing two magnetic grids in a cascade arrangement such that the product moving by them is forced to make contact with the magnetic bars or at the very least pass extremely close to them.

The benefit of using a permanent magnet in the magnetic grid:

Magnetic grids are constructed of neodymium magnetic bars, which function as the basic building pieces. They can capture even the tiniest ferrous particles due to their position in the middle of your product flow, which allows them to do so. Even the stainless steel cuttings and scraps that are discarded are collected. Even the most sensitive metal detectors are unable to pick up on these particles because of how little they are.

The magnetic grid makes use of neodymium magnets, which are the most powerful magnets that can be found in any place on the planet. In certain circumstances, the use of magnetic grid separators composed of neodymium rather than ferromagnetic iron is an acceptable alternative. You can use these rare earth grating magnets for a wide variety of applications, including those in which perfect separation is of the utmost significance, because of the powerful magnetic force that they produce.

Mag Spring, the best magnetic grid supplier:

The use of magnetic grid separators contributes to the unfettered flow of material. In addition, Magnetics grids can be utilized as Hopper Magnets to boost the efficiency of your machine. Getting rid of ferrous and non-ferrous items in water can be accomplished by several different methods. The vast majority of technologies, however, approach the issue as a mechanical one and use a combination of filters and magnets to get rid of the particles. The technological difficulty lies in maintaining a sufficient distance between the magnets that make up the magnet grid ade so that they do not collide with one another or the walls of the containers against which they are placed.

You may get the greatest wholesale magnetic grid from Mag Spring, which you can then purchase from us at a wholesale price. They are known as a reputable magnetic grid supplier. In addition to providing the highest possible quality, we are also able to design the wholesale magnetic grid that is specifically suited to your needs. We carry a large selection of Magnetic Grids, which are often available in both round and square configurations. On the other hand, we can give customers customized forms such as ovals and rectangles if they so want.


Magnetic grid separators are an excellent tool for increasing the effectiveness of your company's operations. They are efficient in terms of cost, simple to operate, and may assist you in maintaining a clean, well-organized, and risk-free working environment. If you equip your workspace with a magnetic grid separator, you will have a much simpler time removing contamination caused by metal filings, filings produced by grinding, and other types of materials. Buy your magnetic grids from Mag Spring as they are great magnetic grid suppliers.
