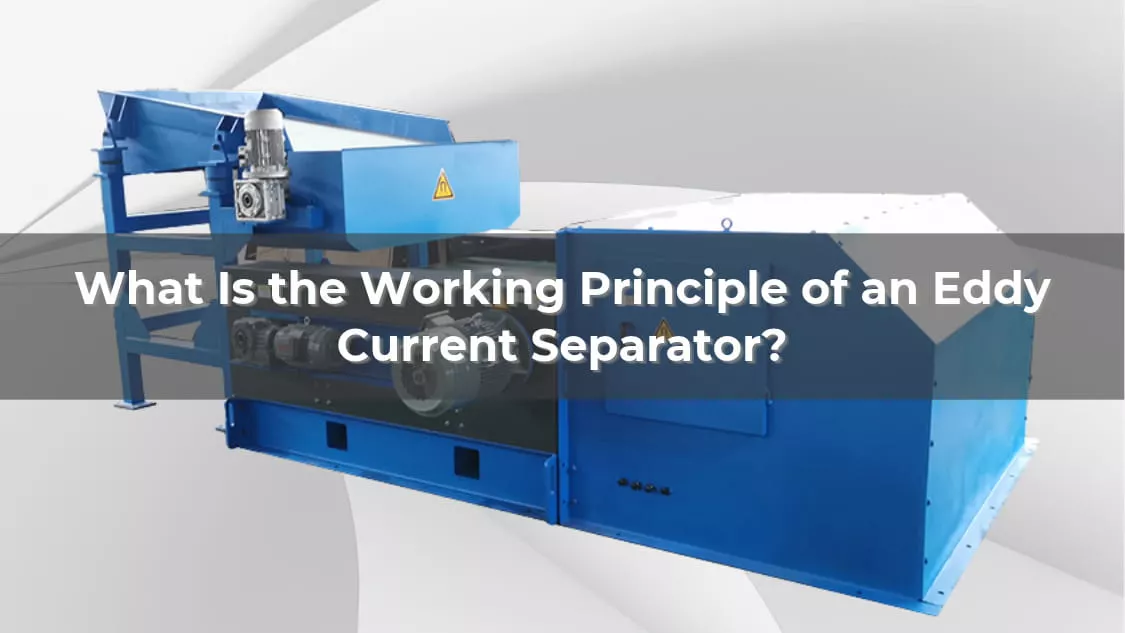

What Is the Working Principle of an Eddy Current Separator?

Have you ever wondered how recycling plants can automatically separate aluminum cans, copper pieces, and other non-ferrous metals from mixed waste without manual sorting? This is where an Eddy Current Separator becomes an important solution. By using a high-speed magnetic rotor to create an eddy current field, this equipment can separate non-ferrous metals from plastics, glass, rubber, and other materials, helping industries improve recovery rates and reduce material waste.

But how does an eddy current separator work in a real recycling line? What happens inside the machine when mixed materials pass through the separator? In this guide, we will explain the eddy current separator working principle explained step by step, introduce its main components, show the separation process, and answer common questions about efficiency, applications, maintenance, and equipment selection. Whether you are working in aluminum recycling, automotive scrap processing, e-waste recycling, or municipal waste sorting, this article will help you better understand how to choose the right separation solution.

Table of Contents

• Eddy Current Separator Working Principle Diagram
• How Does an Eddy Current Separator Work Step by Step?
• Frequently Asked Questions About Eddy Current Separators
• Conclusion

Eddy Current Separator Working Principle Diagram

Before explaining the complete separation process, let's first look at the basic structure of an eddy current separator. Although different manufacturers may use different designs, most industrial models include a conveyor system, magnetic rotor, outer shell, feeding area, and separate discharge channels for different materials.

Note: This diagram explains the basic eddy current separator machine structure and working principle. In actual equipment, the magnetic rotor rotates at high speed inside the drum, creating a changing magnetic field that pushes conductive non-ferrous metals away from the normal material flow.

How Does an Eddy Current Separator Work Step by Step?

So, how does an eddy current separator separate metals during operation? The process may look complicated, but it can be understood through four simple steps. The machine mainly uses a rotating magnetic field, material movement, and the different electrical properties of materials to achieve separation.

Step 1: Material Feeding

First, mixed materials enter the machine through a feeding hopper or conveyor system. The material flow needs to be stable because an even distribution allows more particles to pass through the magnetic separation area and improves overall recovery efficiency.

Step 2: High-Speed Magnetic Rotor Creates Eddy Current

Inside the separator, a high-speed magnetic rotor rotates rapidly and creates a changing magnetic field. When conductive metals such as aluminum or copper enter this area, the changing field produces an eddy current inside the metal particles, creating a repulsive force that pushes them away from the normal material path.

Step 3: Non-Ferrous Metal Separation

When the repulsive force generated by the eddy current becomes strong enough, non-ferrous metals are thrown forward and separated from heavier non-metallic materials. This is the key part of the eddy current separator working principle explained: conductive metals react differently to the magnetic field, allowing the machine to separate them without direct contact.

Step 4: Separate Material Discharge

Finally, the separated metals and remaining materials leave the machine through different discharge paths. Aluminum, copper, and other non-ferrous metals are collected separately, while materials such as plastic, glass, rubber, and stone continue to another collection area for further processing.

In simple terms, the eddy current separator operating principle relies on three main actions: creating a changing magnetic field, generating eddy currents inside conductive metals, and using the resulting repulsive force to move those metals away from other materials. This makes eddy current separation technology widely used in modern recycling and metal recovery industries.

Frequently Asked Questions

1. Why is my Eddy Current Separator recovery rate lower than expected?

A lower-than-expected recovery rate is usually caused by material feeding conditions rather than the separator itself. Common reasons include uneven material thickness on the conveyor belt, excessive feed rate, unsuitable particle size, or incorrect splitter adjustment. For example, if materials are piled instead of being spread into a single layer, some aluminum or copper pieces may not enter the effective magnetic field area and will be lost with the reject material. In practical applications, operators should first check feed distribution, belt speed, rotor speed, and material size before replacing equipment. A stable single-layer feed and proper adjustment can significantly improve recovery performance.

2. Can an Eddy Current Separator separate aluminum and copper at the same time?

Yes, an Eddy Current Separator can recover aluminum, copper, brass, and other conductive non-ferrous metals, but the separation difficulty is different for each material. Aluminum is usually easier to separate because of its lower density and common presence in recycling streams, while copper requires more precise adjustment because its higher density makes it harder to throw away from the material flow. If your main target is copper recovery, you may need to optimize rotor speed, belt speed, and material preparation instead of using the same settings as aluminum recycling lines.

3. Why can my Eddy Current Separator separate large aluminum pieces but not small metal particles?

Small particles are one of the biggest challenges in eddy current separation. When metal particles become very small, the generated eddy current force becomes weaker, while gravity and material friction have a greater influence on their movement. In many industrial applications, particles below around 5 mm are more difficult to recover efficiently compared with larger particles. To improve small-particle recovery, consider screening materials into different size ranges, using a high-frequency rotor configuration, and reducing the material layer thickness on the conveyor before separation.

4. Should I choose an eccentric rotor or a concentric rotor Eddy Current Separator?

The choice between eccentric and concentric rotor designs depends on your material characteristics rather than simply choosing the stronger option. Concentric rotors provide a more symmetrical magnetic field and are often used for relatively stable material streams such as aluminum recovery. Eccentric rotors place the magnetic field closer to one side of the drum, which can help reduce unwanted interaction with ferrous contamination and is often considered for mixed waste streams such as construction waste and shredded materials. Before purchasing, analyze your material type, particle size, and contamination level to select the appropriate rotor design.

5. How can I improve the separation purity of my Eddy Current Separator?

If the recovered metal contains too much plastic, glass, or other non-metal material, the first step is to adjust the operating conditions instead of immediately changing the machine. Check whether the feed layer is too thick, whether the splitter position is correct, and whether the belt speed matches the material size. In many cases, reducing feed thickness and fine-tuning the splitter location can improve purity. It is also important to understand that higher recovery and higher purity are sometimes a trade-off, so the equipment should be adjusted according to whether your priority is recovering more metal or producing a cleaner metal fraction.

Conclusion

So, what is the working principle of an eddy current separator? In simple terms, it uses a high-speed magnetic rotor to create a changing magnetic field. When conductive metals such as aluminum, copper, and brass pass through this field, eddy currents generate a repulsive force that separates them from non-metallic materials. This makes eddy current separators widely used in recycling, waste sorting, and metal recovery applications.
