Top 10 Magnetic Roll Separator Manufacturers in the World 2026

What Is a Magnetic Roll Separator?

A magnetic roll separator is a dry, high-intensity magnetic separation machine that uses a rotating magnetic roll — permanent rare-earth or electromagnetic — to deflect and capture weakly magnetic (paramagnetic) particles from non-magnetic material in a thin, evenly distributed feed layer.

Unlike low-intensity drum separators designed for strongly magnetic (ferromagnetic) material, magnetic roll separators are engineered for fine-particle, dry, high-gradient separation, where the target impurities respond only weakly to magnetic fields.

Primary Uses

• Dry magnetic separation — no water, no slurry, no drying downstream
• Weakly magnetic mineral separation — ilmenite, garnet, hematite, monazite, chromite
• Paramagnetic particle removal — iron oxides, mica, tourmaline from industrial minerals
• Fine particle processing — typically from about 45 microns up to a few millimeters
• Industrial mineral purification — silica sand, feldspar, quartz, glass sand, ceramics

Related Names You Will See

• Magnetic Roll Separator / Magnetic Roller Separator — the general terms
• Rare Earth Roll Separator (RE Roll) — permanent NdFeB magnet roll, no excitation power
• Induced Roll Magnetic Separator (IRMS) — electromagnetic roll with adjustable field
• High Intensity Magnetic Roll Separator — umbrella term for rolls operating at elevated field strength and gradient

How Does a Magnetic Roll Separator Work?

A magnetic roll separator exploits the competition between magnetic force and the combined centrifugal and gravitational forces acting on each particle as it leaves the roll surface. Paramagnetic particles are pinned to the belt/roll and carried further around the arc; non-magnetic particles fly off on a natural ballistic trajectory. An adjustable splitter divides the two streams.

The Six Factors That Decide the Trajectory

1. Magnetic field — surface field strength of the roll (measured in Gauss or Tesla)
2. Magnetic force — field strength × gradient × particle susceptibility × particle volume
3. Magnetic gradient — how quickly the field changes over distance; high gradient is what captures fine weakly magnetic particles
4. Feed rate — a monolayer feed is essential; overloaded feed causes entrainment of non-magnetics
5. Particle trajectory — roll speed and belt speed set the centrifugal component
6. Splitter position — the final purity/recovery trade-off is set here

Because the separation is purely physical and dry, there is no process water, no slurry handling, and no drying stage — a decisive advantage for glass-grade silica and feldspar plants.

Types of Magnetic Roll Separators

Rare Earth Roll Separator

Uses a permanent magnet roll built from Neodymium-Iron-Boron (NdFeB) segments arranged in a high-gradient pole configuration. No power is needed to generate the field, so operating cost is low and the field is highly stable over time. Rare earth rolls dominate modern dry separation of weakly magnetic, fine materials and are now the industry default for silica, feldspar and glass-sand purification.

Induced Roll Magnetic Separator

Uses an electromagnet with a laminated roll. The field is generated only when the coil is energized and is adjustable via excitation current, allowing the operator to tune field intensity for different minerals in the same machine. Induced rolls require more power and cooling but offer unmatched flexibility for difficult paramagnetic separations.

High-Intensity Magnetic Roll Separator

A general classification covering roll separators engineered for maximum field strength and gradient — whether permanent or electromagnetic — used to recover weakly magnetic minerals such as hematite, limonite, garnet, ilmenite and monazite, or to strip stubborn iron-bearing impurities from industrial minerals.

Single Roll Separator

One magnetic roll, one splitter pass. The most economical configuration for relatively simple streams — basic contamination removal or rougher separation where a single stage achieves the target purity.

Double / Multi-Stage Roll Separator

Two or more magnetic rolls in series, allowing scavenging, cleaning and re-cleaning passes. Multi-stage machines deliver higher product purity, better recovery of valuable magnetic fractions, and the ability to produce multiple mineral products from one feed. Since 2024–2026, leading suppliers have pushed multi-stage rare earth designs toward finer particle cut-points — down to 45 microns in the newest high-intensity models.

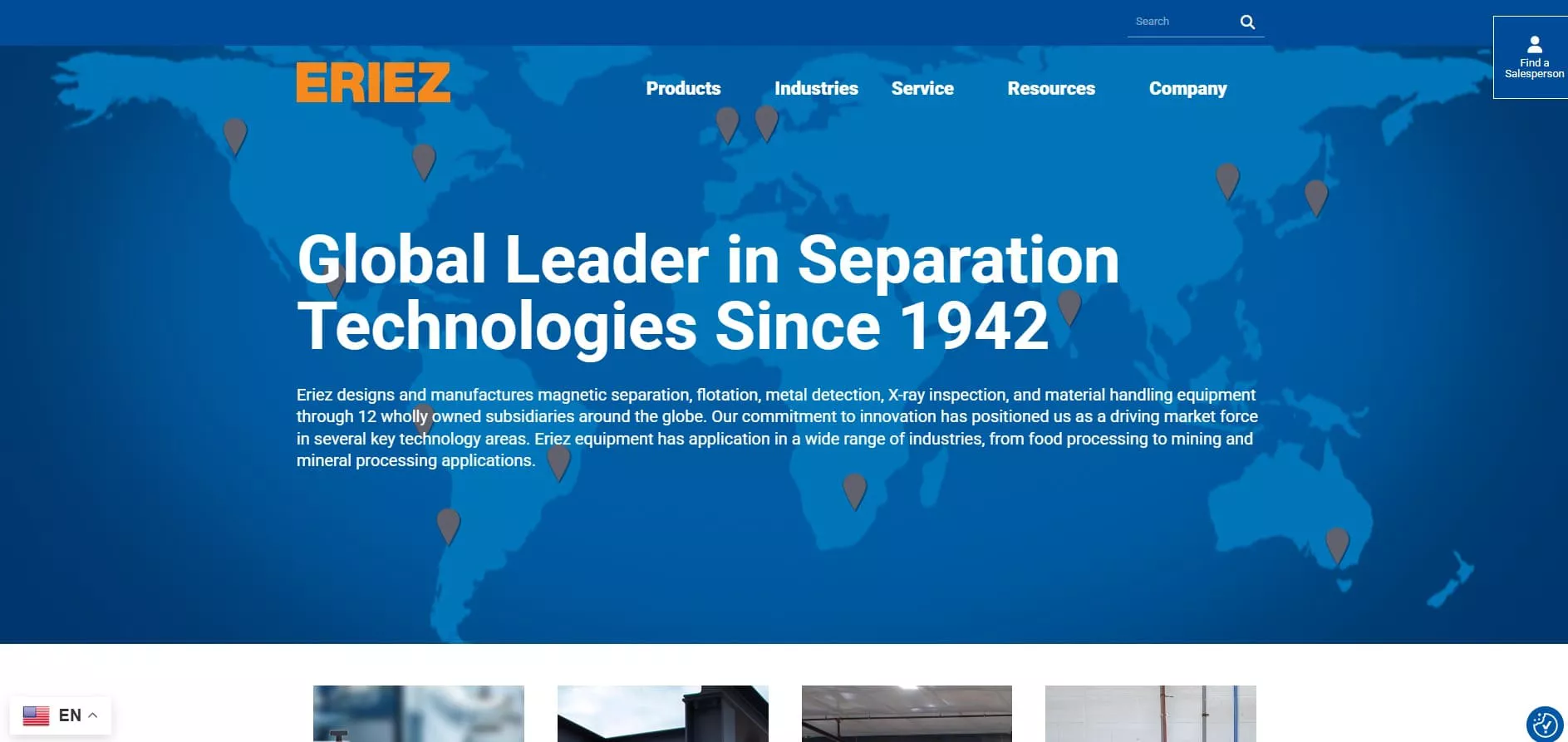

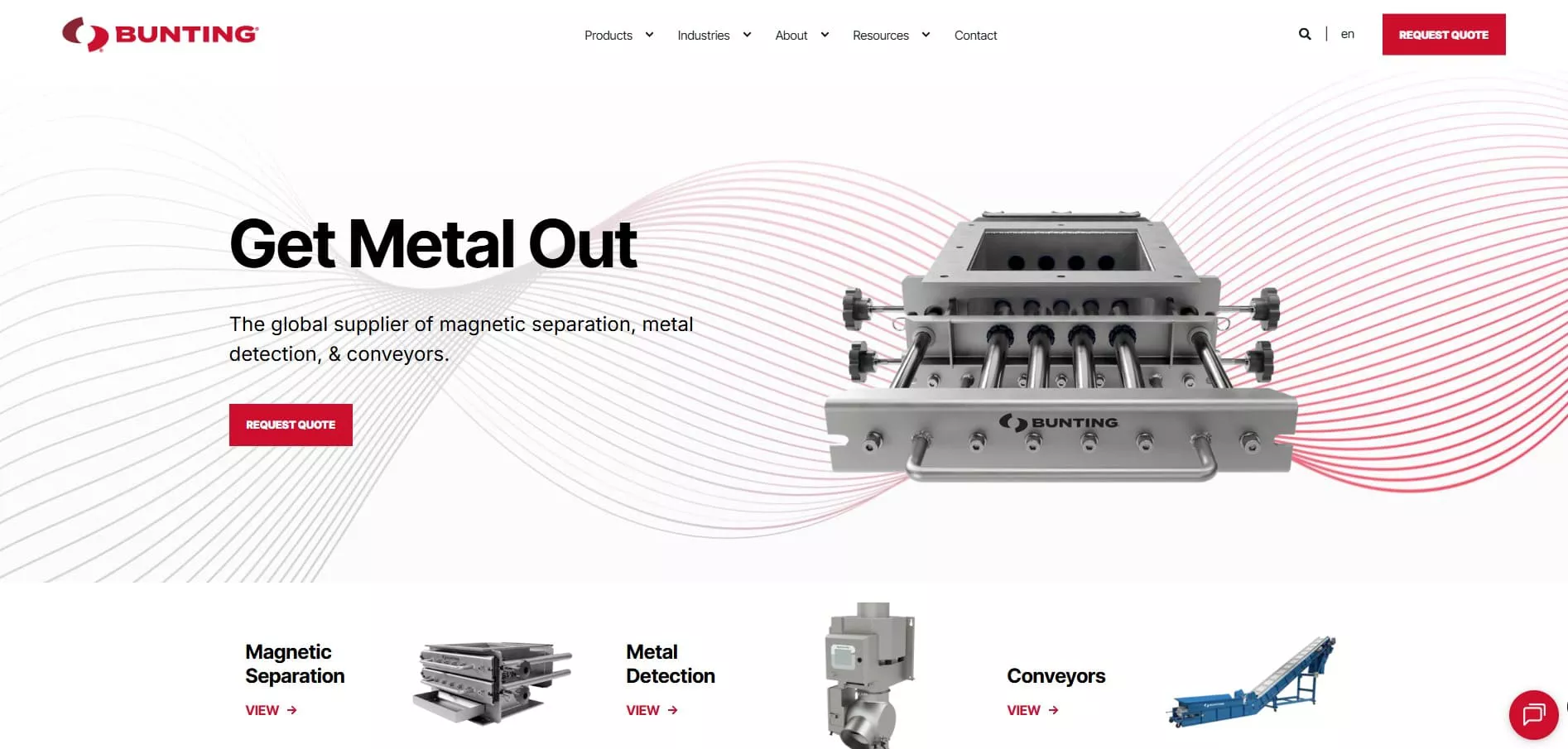

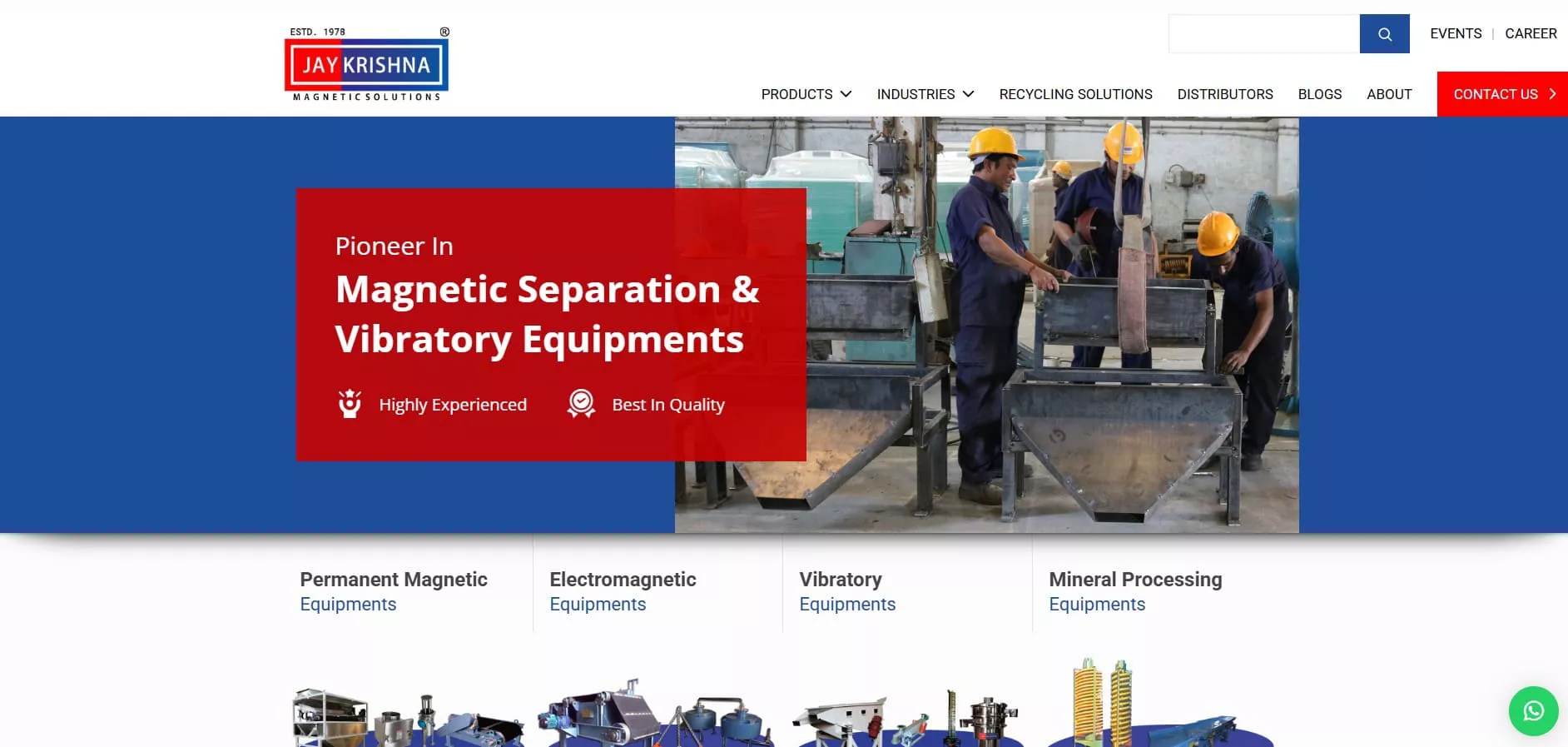

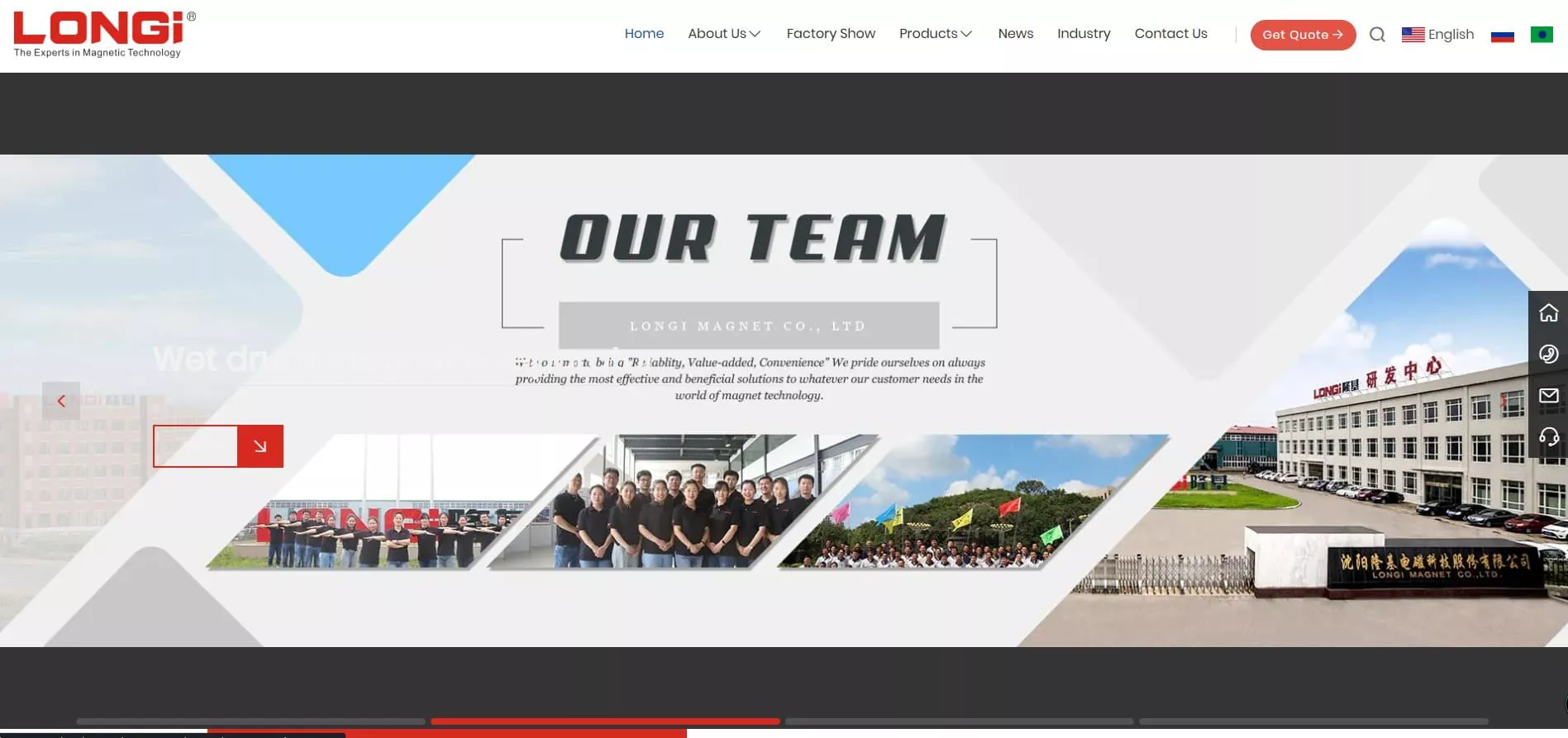

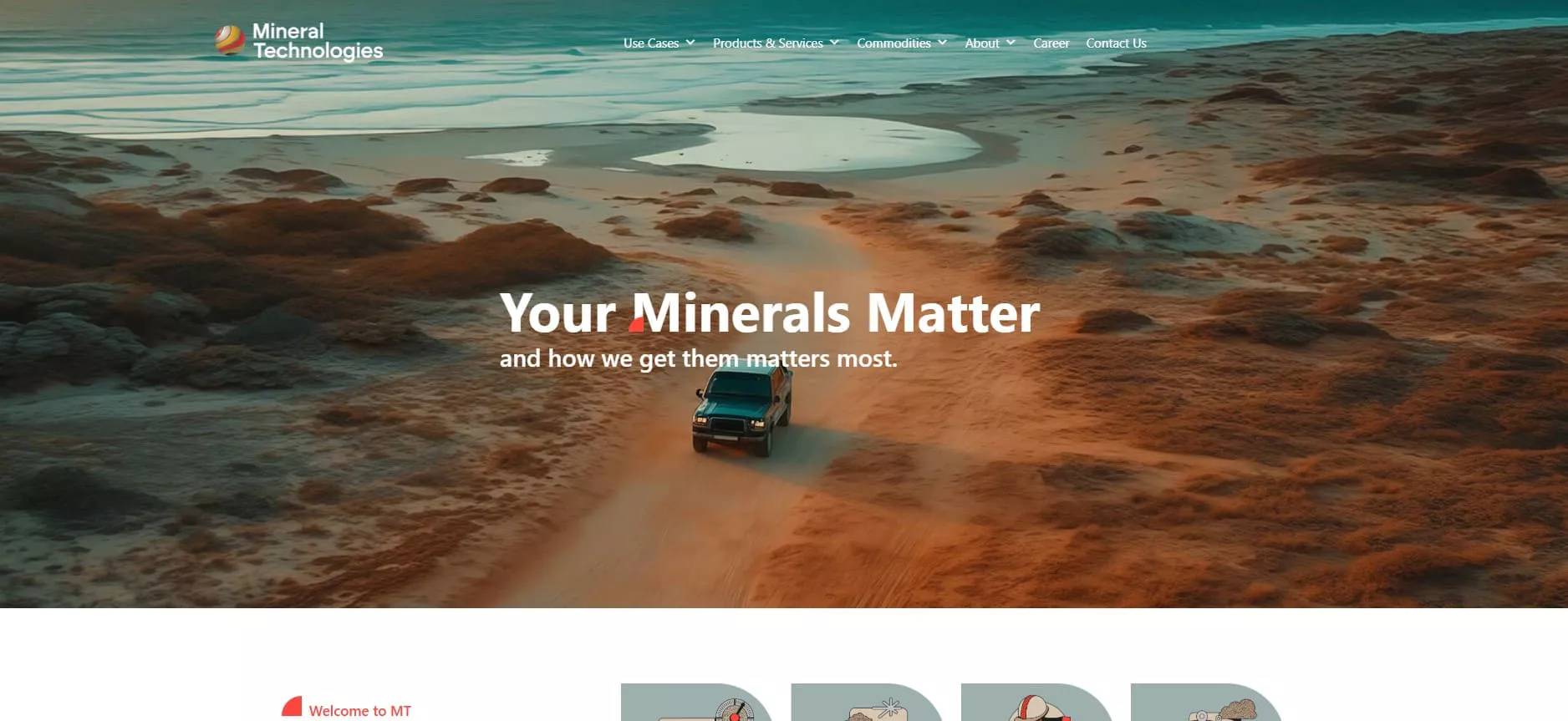

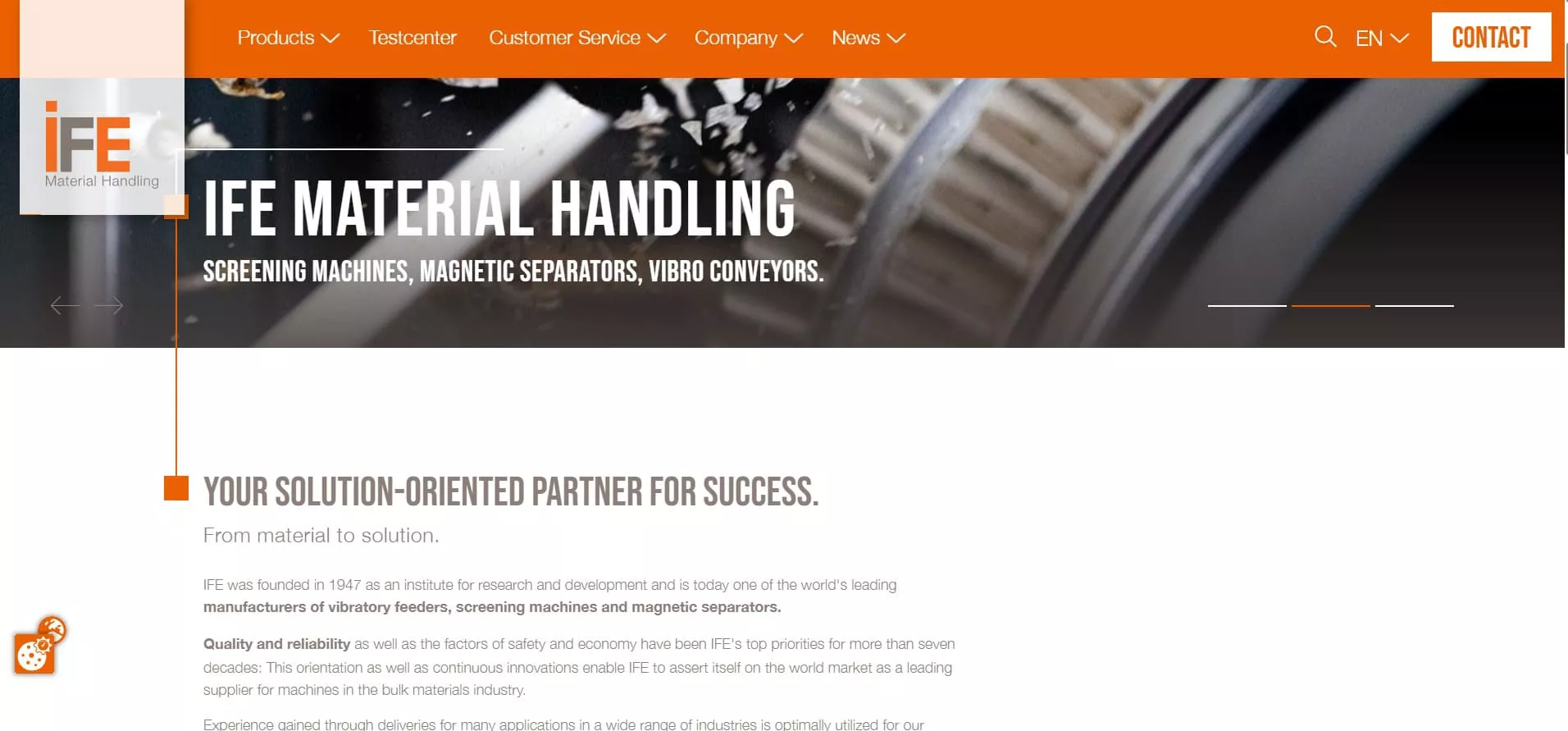

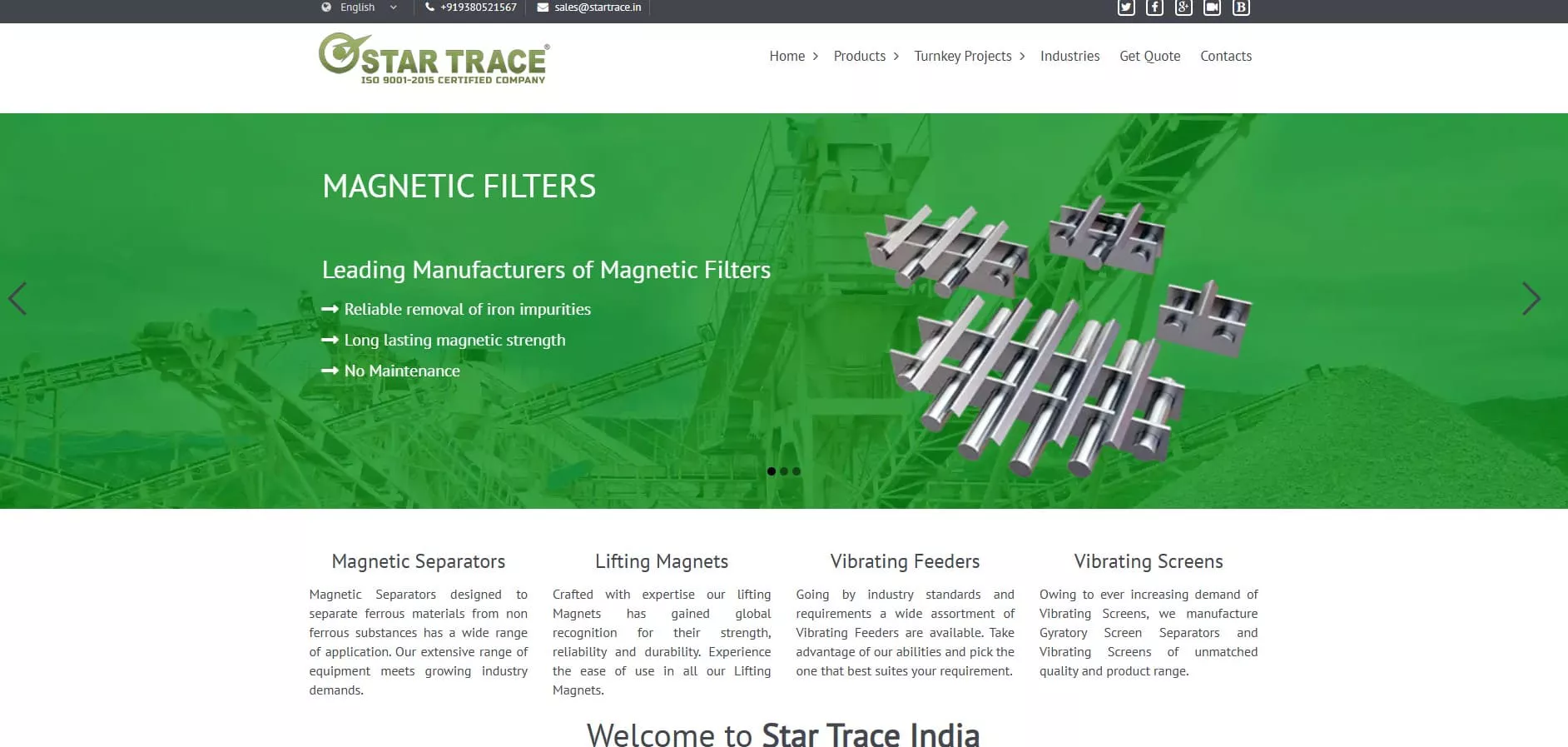

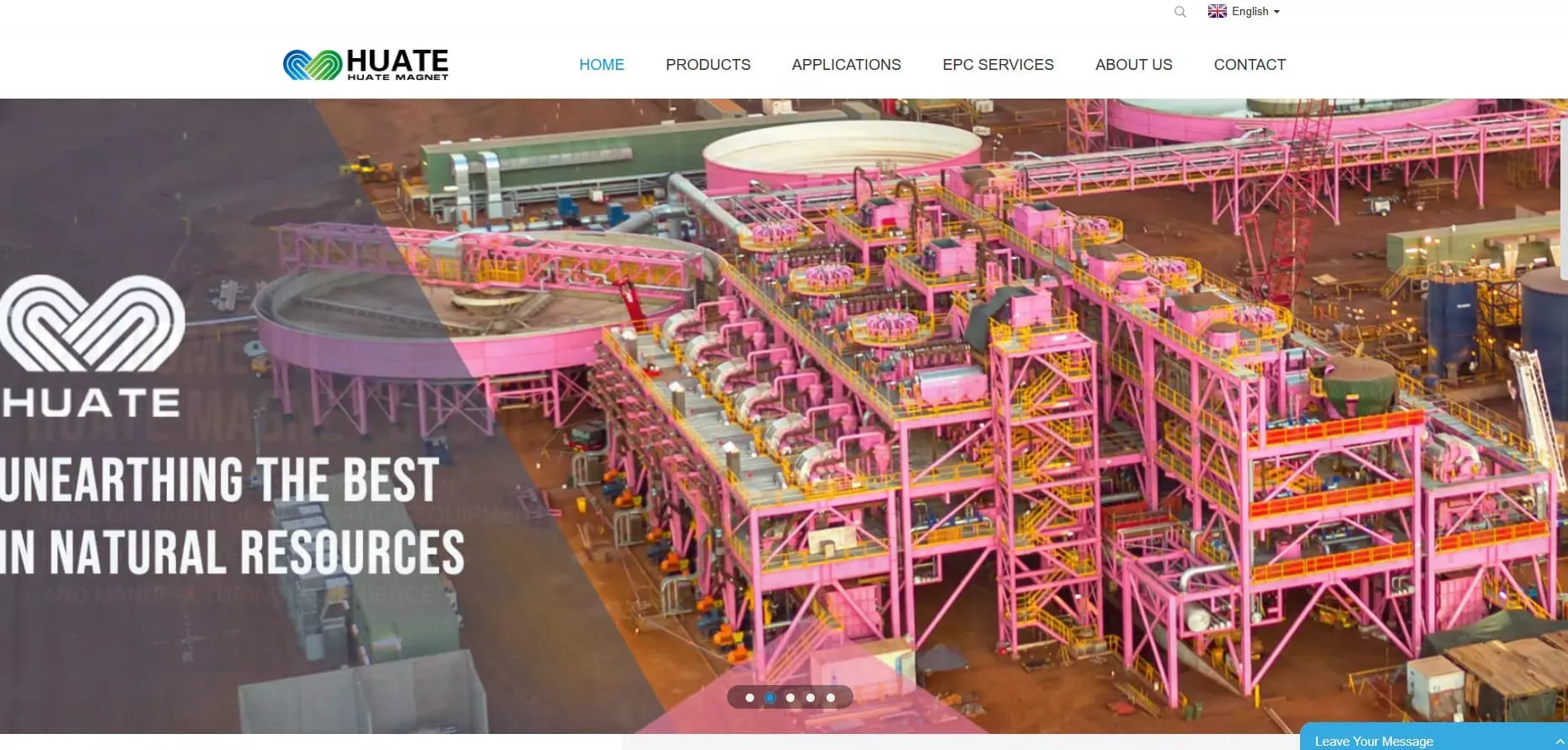

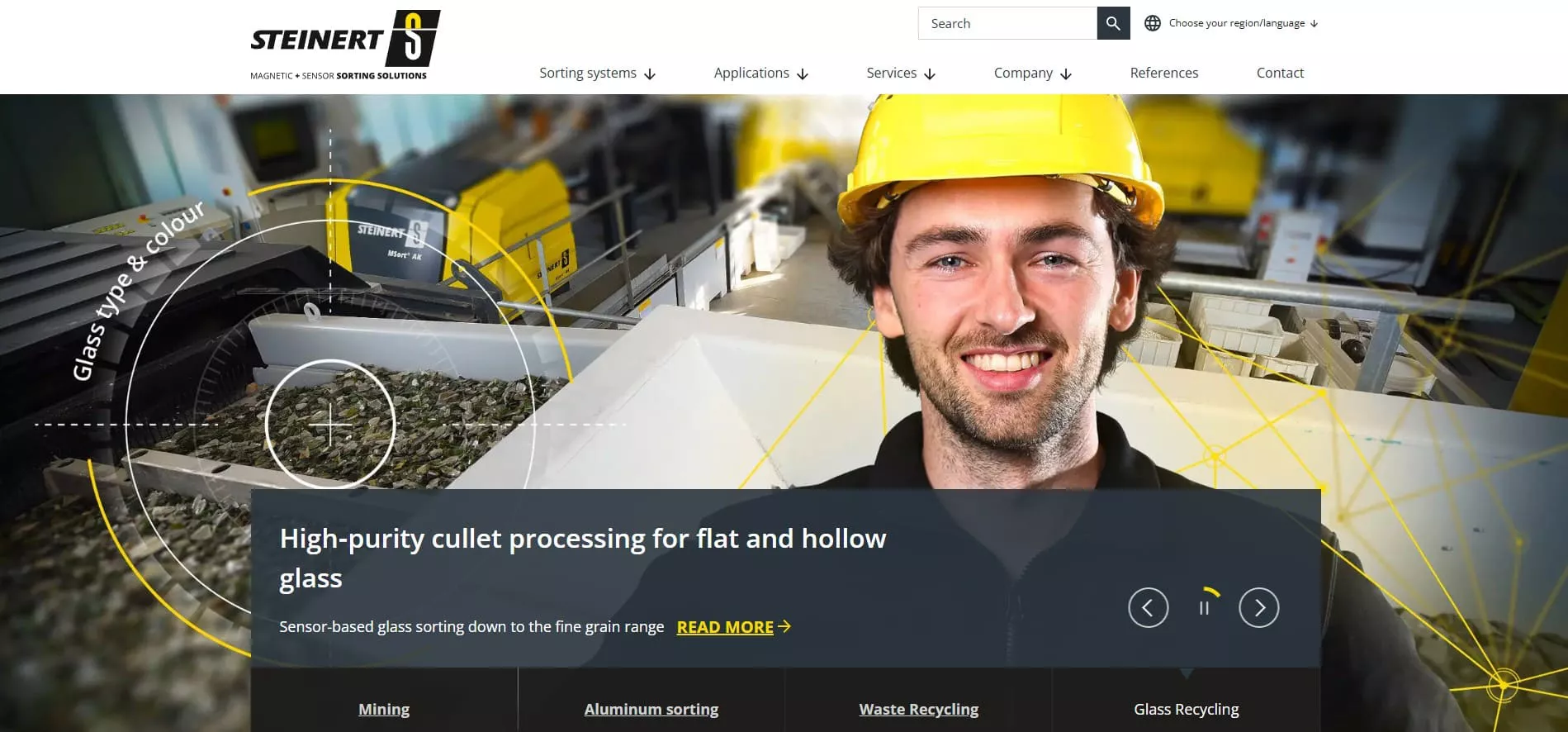

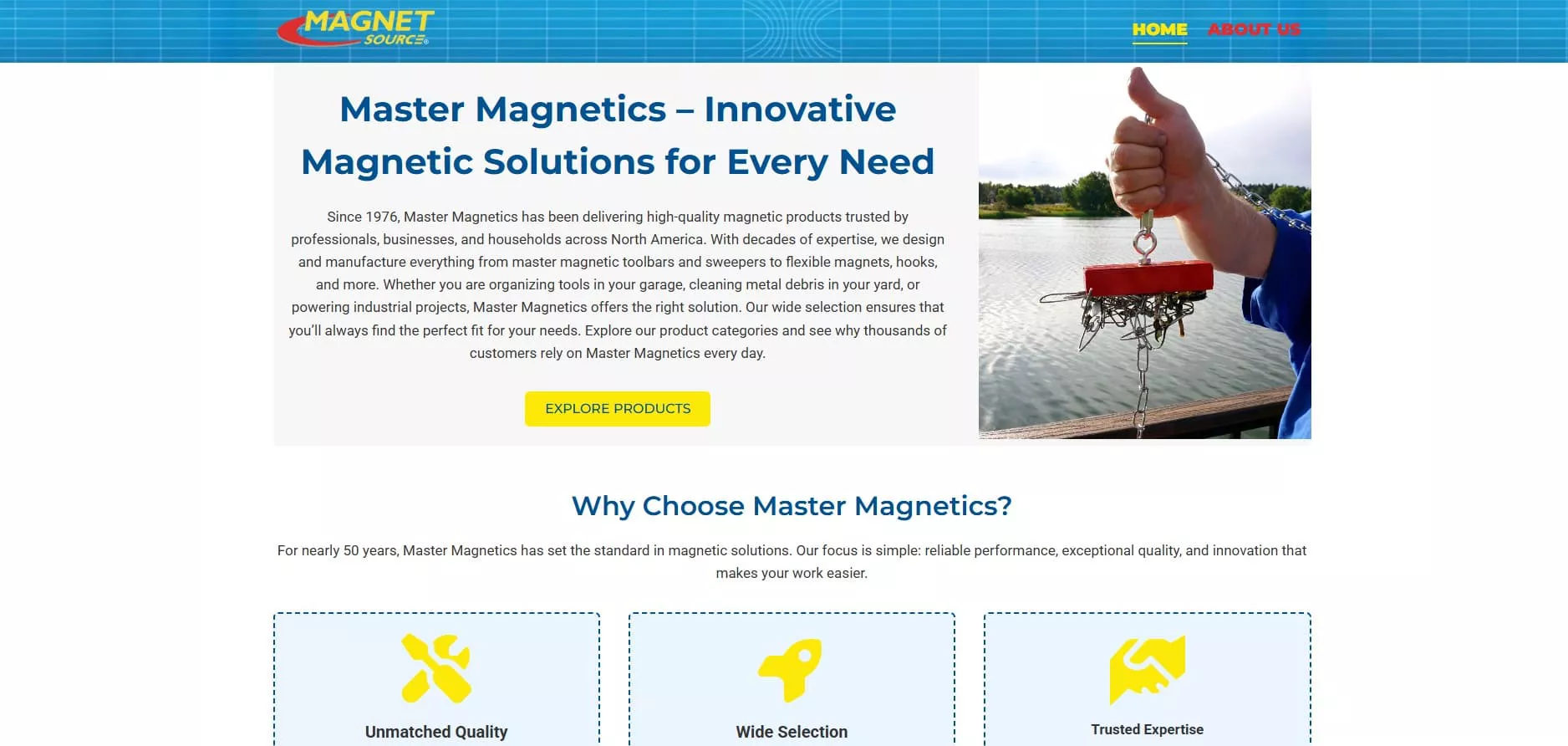

Top 10 Magnetic Roll Separator Manufacturers in the World

Magnetic Roll Separator Manufacturers Comparison

Note: before publication, each cell should be verified against the manufacturer's current official product pages, as roll separator lineups are updated frequently.

Rare Earth Roll vs. Induced Roll

This is the single most important technical decision when purchasing a magnetic roll separator — and the reason this article separates the two technologies clearly.

When should you choose a Rare Earth Roll instead of an Induced Roll?

• Choose a Rare Earth Roll when your feed is dry, fine and weakly magnetic; your impurity suite is well characterized; and you want minimum power consumption and minimum maintenance. This is the default choice for silica sand, feldspar, quartz and glass sand purification.
• Choose an Induced Roll when the magnetic susceptibility of your minerals varies between deposits or products, when you need to tune field strength between batches, or when a single machine must process multiple mineral types. The electromagnetic field can be switched and tuned — at the cost of higher power and more complex maintenance.

Magnetic Roll Separator vs. Magnetic Drum Separator

Although both are "magnetic separators," roll and drum machines solve fundamentally different problems:

Bottom line: roll separators are built for dry, high-intensity, fine-particle, weakly magnetic separations; drum separators are built for coarse, strongly magnetic material. Many plants use both — drums upstream for tramp iron, rolls downstream for final purification. (See our dedicated guide to magnetic drum separators for the full comparison.)

Magnetic Roll Separator vs. Magnetic Pulley

A magnetic pulley (head roller magnet) replaces the drive pulley of an existing conveyor and performs separation while conveying — ideal for low-cost tramp iron removal. A magnetic roll separator is a dedicated process machine with a controlled vibratory feed, precision splitter and high-gradient roll, designed to achieve defined purity targets on fine, weakly magnetic materials. Use pulleys for protection; use rolls for purification. (See our magnetic pulley guide for details.)

Applications of Magnetic Roll Separators

Magnetic roll separators are used wherever dry, weakly magnetic impurities determine product value:

• Mineral Processing — hematite, limonite, ilmenite, garnet, monazite, chromite, manganese
• Silica Sand — upgrading to glass, foundry and solar grade
• Feldspar & Quartz — iron staining and mica removal for ceramics and glass
• Glass Sand — Fe₂O₃ reduction for container and float glass
• Ceramic Raw Materials — whiteness and purity improvement
• Beach Sand / Mineral Sands — ilmenite, rutile, zircon, garnet separation
• Industrial Minerals — magnesite, kaolin, talc, barytes, abrasives
• Recycling — e-waste, magnet recycling, battery material powder purification

Magnetic Roll Separator for Mineral Processing

Why do so many mineral circuits include a magnetic roll stage? Because most value upgrades in industrial minerals are, in fact, iron-removal problems:

• Remove iron contamination — hematite, limonite, magnetite fines, iron-bearing coatings
• Upgrade mineral purity — strip weakly magnetic accessory minerals that low-intensity drums cannot touch
• Improve product whiteness — critical for ceramics, fillers, feldspar and kaolin pricing
• Separate weakly magnetic minerals — recover ilmenite, garnet, monazite as saleable products
• Improve downstream processing — protecting flotation, leaching and glass furnaces from iron input

A well-designed roll separation stage frequently moves a product up an entire commercial grade — for example from construction sand to glass-grade silica — which is why equipment selection here has direct P&L consequences.

Magnetic Roll Separator for Silica Sand

Silica sand is the single largest application for rare earth roll separators. Iron exists in silica sand as free iron oxides, iron-stained grain coatings, and iron-bearing heavy minerals (limonite, hematite, ilmenite, magnetite, garnet). Only high-gradient dry roll separation can remove the weakly magnetic fraction economically at plant scale.

What the Roll Stage Achieves

• Iron staining removal — reducing Fe₂O₃ from typical raw levels toward glass-grade targets
• Weakly magnetic contamination removal — chromite, garnet, ilmenite, tourmaline
• Product purity — enabling solar, float glass, foundry and filler specifications
• Glass-grade applications — multi-stage roll circuits deliver the consistency glass makers demand

For plants targeting ultra-low iron, a multi-stage configuration (rougher → cleaner → re-cleaner) is standard practice.

Magnetic Roll Separator Specifications

When requesting quotations, these are the parameters that determine whether a machine fits your duty:

Always submit a representative material sample with your inquiry — reputable manufacturers size roll separators from test results, not catalog assumptions.

Magnetic Field Strength and Gradient

The most common misconception in this market: "higher Gauss = better separation." It doesn't work that way. Actual separation performance is determined by the combination of:

• Magnetic field strength — surface intensity, quoted in Gauss or Tesla (1 Tesla = 10,000 Gauss). Rare earth rolls typically deliver very high surface fields on thin belts.
• Magnetic gradient — the rate of field change over distance. A high-gradient field is what actually captures fine, weakly magnetic particles; a strong but uniform field will not.
• Particle size — magnetic force scales with particle volume, while competing forces scale differently; fine particles need disproportionately higher gradient.
• Working distance / gap — field strength decays rapidly away from the roll surface, which is why belt thickness and monolayer feeding matter so much.
• Pole configuration — the arrangement of magnet segments sets the gradient pattern around the roll circumference.

Single-Stage vs. Multi-Stage Magnetic Roll Separation

Single Stage

One roll, one pass. Best for simple contamination removal, rougher duty, or where a single stage already meets specification. Lowest capital cost, simplest operation, smallest footprint.

Multi Stage (Double / Triple Roll)

Sequential rolls configured for scavenging, cleaning and re-cleaning:

• Scavenging — recovering additional magnetic values from the tail of the previous stage
• Cleaning — upgrading the magnetic fraction by rejecting entrained non-magnetics
• Re-cleaning — a final polish pass to hit premium purity targets

Multi-stage circuits are the standard for higher product purity targets, multiple mineral fractions from one feed, difficult separations (similar susceptibilities), and fine particle processing. They cost more upfront but often determine whether a product reaches glass or ceramic grade at all.

Magnetic Roll Separator Efficiency

Separation efficiency is not a single number — it is the balance of two competing objectives:

Recovery vs. Purity — set the splitter aggressively toward the magnetic side and you maximize product purity but lose valuable non-magnetic product to the magnetic fraction; set it the other way and recovery rises while purity falls. Every roll separator operates somewhere on this curve, and the splitter position is how the operator chooses the operating point.

Factors That Move the Curve

• Feed rate — overfeeding destroys selectivity through entrainment
• Particle size distribution — wide distributions force compromise settings
• Magnetic intensity & gradient — determines what is physically capturable
• Material distribution — vibratory feeder quality directly sets monolayer consistency
• Roll speed — trajectory control vs. throughput
• Splitter position — the purity/recovery dial
• Moisture — even small moisture levels cause fine-particle agglomeration and misplacement; dry feed is mandatory
• Number of stages — multi-stage circuits break the single-pass purity/recovery trade-off

How to Choose a Magnetic Roll Separator

1. Material type — what are you actually separating?
2. Magnetic susceptibility — how weakly magnetic are the target particles?
3. Particle size — fine end of the range dictates gradient requirements
4. Feed capacity — tonnes per hour sets roll width and number of parallel units
5. Product purity target — specification in writing (e.g., Fe₂O₃ ppm)
6. Recovery target — how much non-magnetic product can you afford to lose?
7. Required magnetic intensity — from testwork, not guesswork
8. Rare Earth vs. Induced Roll — fixed strong field vs. adjustable field
9. Number of separation stages — single vs. scavenging/cleaning circuits
10. Available installation space — multi-stage machines need real estate

How Much Does a Magnetic Roll Separator Cost?

There is no meaningful single "market price" for roll separators — quotation values vary enormously because the machine is engineered around the duty. Rather than publishing misleading averages, focus on the factors that drive the price of your specific unit:

• Roll width — the primary throughput (and magnet mass) driver
• Roll diameter — capacity and trajectory authority
• Number of rolls / stages — multi-stage machines multiply cost
• Rare-earth magnet grade — higher-energy NdFeB grades cost more but last decades
• Electromagnetic system — induced rolls add coils, power supply and cooling cost
• Feed capacity — larger vibratory feeders and frames
• Automation level — splitter adjustment, monitoring, controls
• Customization — exotic materials, dust enclosures, ATEX, food-grade finish
• Control system — PLC integration, IoT sensors, remote monitoring
• Installation & commissioning — site works, testing, training

Budget guidance: single-stage narrow rare earth roll units for pilot/limited duty sit at the entry level; full multi-stage, wide-roll production machines with automation represent a significantly higher investment. Always obtain testwork-based quotations from at least two of the manufacturers profiled above — prices between Western premium brands and Asian manufacturers (Huate, LONGi) can differ substantially for comparable duty.

Magnetic Roll Separator Maintenance

Roll separators are mechanically simple — maintenance is mostly discipline:

• Roll surface inspection — wear, tramp-metal damage, coating condition
• Belt inspection — tracking, tension, wear on thin high-speed belts (a leading running-cost item)
• Bearing maintenance — lubrication schedule, temperature checks
• Feed system inspection — vibratory feeder trough wear and distribution uniformity
• Magnetic field testing — periodic Gauss verification to detect magnet degradation
• Cleaning — dust build-up on roll, belt and splitter degrades separation
• Splitter adjustment verification — confirm setting matches the operating recipe
• Electrical system inspection — drives, controls, sensors

For induced roll (electromagnetic) machines, additionally:

• Coil condition — insulation resistance testing
• Power supply — excitation current stability
• Cooling system — airflow/heat exchanger function; overheating quietly destroys field stability

How to Choose a Magnetic Roll Separator Manufacturer

The ten manufacturers above were assessed on criteria you should apply to any supplier — including those not on this list:

• Magnetic technology — permanent and/or induced roll depth
• Roll design — magnet grade, pole configuration, mechanical quality
• Magnet quality — traceable NdFeB supply, stability guarantees
• Engineering capability — can they size the machine from first principles?
• Material testing — laboratory separation tests on your sample
• Pilot testing — continuous pilot runs before full-scale commitment
• Customization — width, stages, materials, controls
• Manufacturing capacity — delivery lead times at your order size
• Quality control — ISO 9001, CE, documented test procedures
• Installation support — commissioning and training
• Spare parts — belts and bearings are consumables; confirm lifetime supply
• After-sales service — regional response capability

Magnetic Roll Separator Buying Checklist

• Material type
• Particle size distribution
• Feed capacity (t/h)
• Magnetic susceptibility of target impurities
• Product purity requirement (written spec)
• Recovery requirement
• Required magnetic intensity (from testwork)
• Rare Earth Roll or Induced Roll
• Roll diameter
• Roll width
• Number of separation stages
• Installation dimensions / footprint
• Power requirement
• Material testing requirement (lab + pilot)

Frequently Asked Questions

Need a Custom Magnetic Roll Separator?

Every mineral, every deposit and every purity specification is different. Off-the-shelf roll separators rarely hit premium grade targets on the first pass. We support buyers with:

• Material testing — laboratory separation tests on your sample
• Magnetic intensity selection — matched to measured susceptibility
• Roll dimension design — diameter, width, stages engineered for your capacity
• Rare-earth magnet selection — grade and configuration for your duty
• Multi-stage separation design — scavenging / cleaning / re-cleaning circuits
• Pilot testing — continuous runs before capital commitment
• OEM customization — controls, enclosures, materials, integration

Request a Magnetic Roll Separator Quote
