What Are the Different Types of Magnetic Separators?
Magnetic separators are indispensable tools in industries such as mining, recycling, food processing, and manufacturing. They utilize magnetic fields to remove unwanted magnetic materials, protect equipment, and ensure product purity by separating ferrous and non-ferrous materials. This article explores various types of magnetic separators—Overband, Dry, Eddy Current, Magnetic Coolant, Wet, and Electro Magnetic Separators—while examining their cleaning types, magnetic strength, system types, separation medium properties, and design considerations.
Overband Magnetic Separator

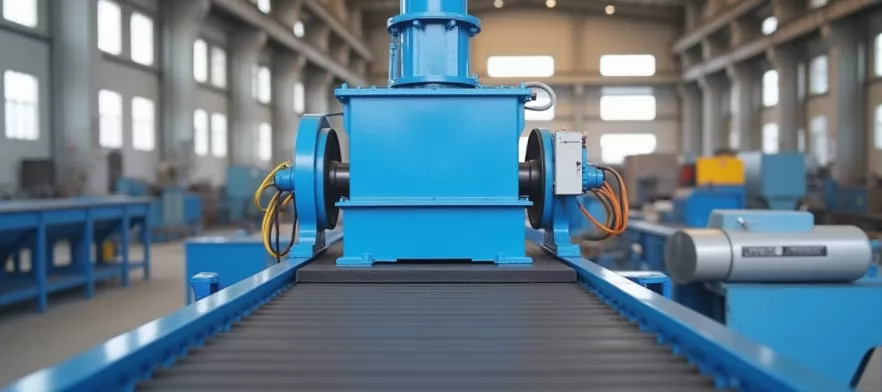

Overview: Overband magnetic separators, also called cross-belt separators, are widely used in mining, recycling, and aggregate processing. Suspended above conveyor belts, they attract and remove ferrous materials from the material stream, making them ideal for continuous operations.
Cleaning Type: Available in self-cleaning and manual-cleaning variants. Self-cleaning models use a belt to automatically discharge collected metal, while manual models require periodic removal of captured materials.
Strength: Typically employs strong permanent magnets or electromagnets, capable of handling large ferrous objects like bolts or scrap metal.
System Type: Primarily a conveyor-based system, integrated into material handling lines for continuous separation.
Separation Medium: Processes dry, bulk materials such as coal, minerals, or recycled aggregates.
Design: Robust and durable, designed to withstand harsh environments. Available in inline or cross-belt configurations, with adjustable suspension heights to optimize separation.
Dry Magnetic Separator

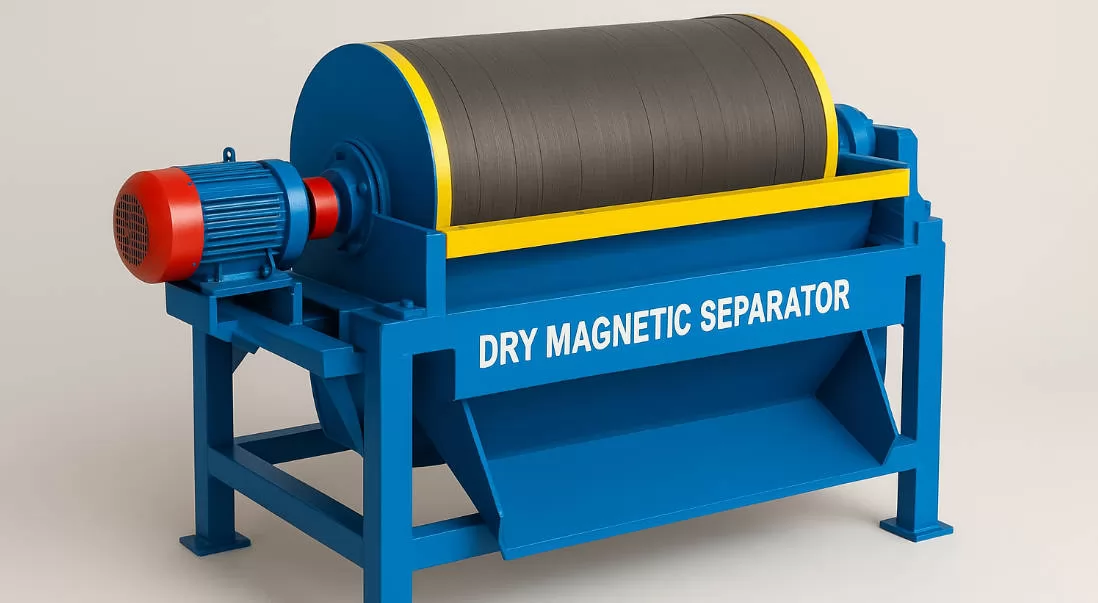

Overview: Dry magnetic separators process dry, free-flowing materials like powders, granules, or small particles in industries such as mining, ceramics, and food processing. They remove fine ferrous contaminants without the need for liquid.
Cleaning Type: Often manual or semi-automatic, with some models featuring automated cleaning mechanisms like vibrating or rotating drums to dislodge captured particles.
Strength: Uses moderate to high magnetic strength, suitable for capturing fine ferrous particles. Permanent magnets are common, though high-intensity rare-earth magnets are used for finer separations.
System Type: Typically standalone or integrated into processing lines, such as pneumatic or gravity-fed systems.
Separation Medium: Handles dry, non-cohesive materials like sand, grains, or powders, ensuring dust-free operation.
Design: Compact and low-maintenance, often featuring drum, roll, or plate configurations. Designs prioritize energy efficiency and ease of integration into existing workflows.
Eddy Current Separator

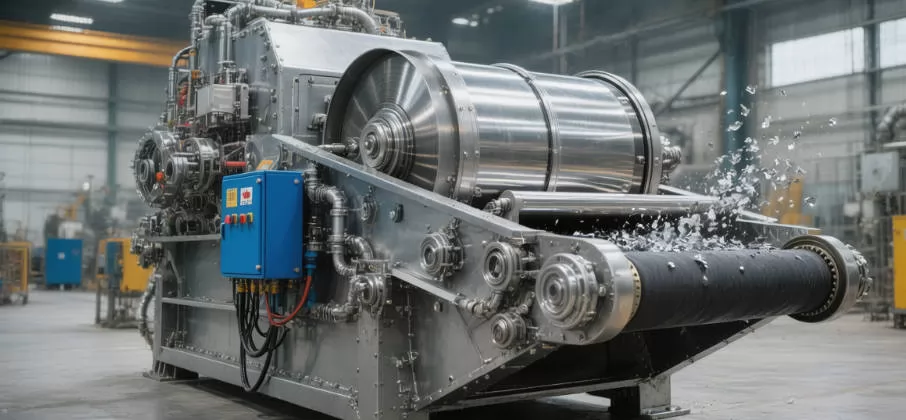

Overview: Eddy current separators specialize in separating non-ferrous metals (e.g., aluminum, copper, brass) from non-metallic materials in recycling plants, using a rotating magnetic field to induce eddy currents and create a repulsive force.
Cleaning Type: Generally self-cleaning, as the repulsive force ejects non-ferrous metals into a separate collection area, requiring minimal manual intervention.
Strength: Utilizes high-frequency, alternating magnetic fields to generate strong eddy currents, tailored for conductive materials.
System Type: Conveyor-based, often integrated into sorting lines for recycling or waste processing.
Separation Medium: Processes dry, mixed materials, such as electronic scrap or municipal solid waste, where non-ferrous metals are present.
Design: Features a high-speed rotating drum or belt with precise magnetic rotor adjustments to optimize separation efficiency. Designs focus on durability and high throughput.
Magnetic Coolant Separator

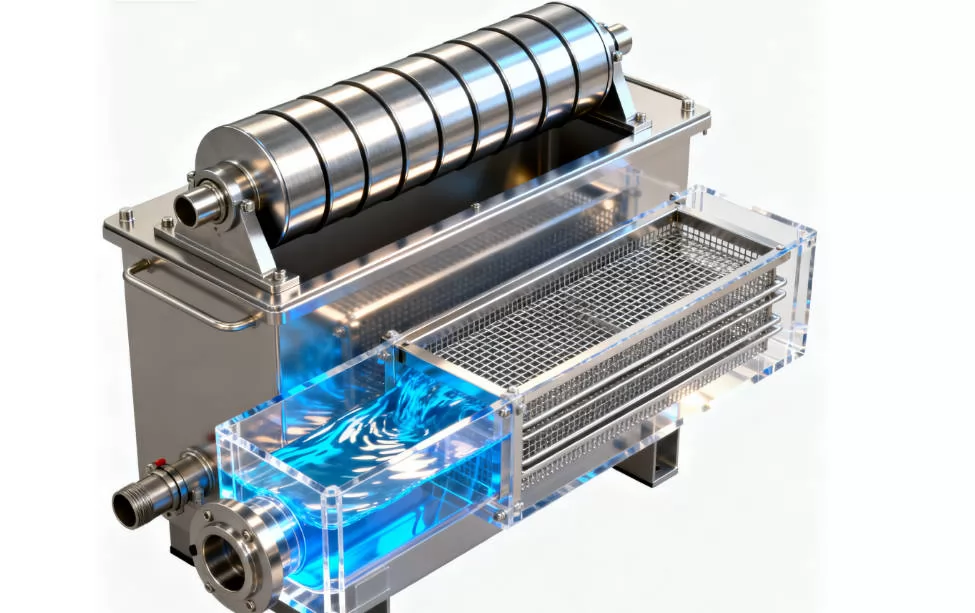

Overview: Magnetic coolant separators remove ferrous contaminants from coolant fluids in machining and grinding operations, ensuring clean coolant for reuse and extending tool life.
Cleaning Type: Typically manual or semi-automatic, with some models featuring rotating magnetic drums for continuous cleaning.
Strength: Moderate magnetic strength, designed to capture fine ferrous particles suspended in liquid coolant.
System Type: Integrated into coolant circulation systems, often as part of filtration units in machining setups.
Separation Medium: Operates in liquid coolants, such as water-based or oil-based emulsions, handling fine metal particles.
Design: Compact, with magnetic drums or plates housed in stainless steel casings to resist corrosion. Designs prioritize ease of maintenance and compatibility with coolant systems.
Wet Magnetic Separator

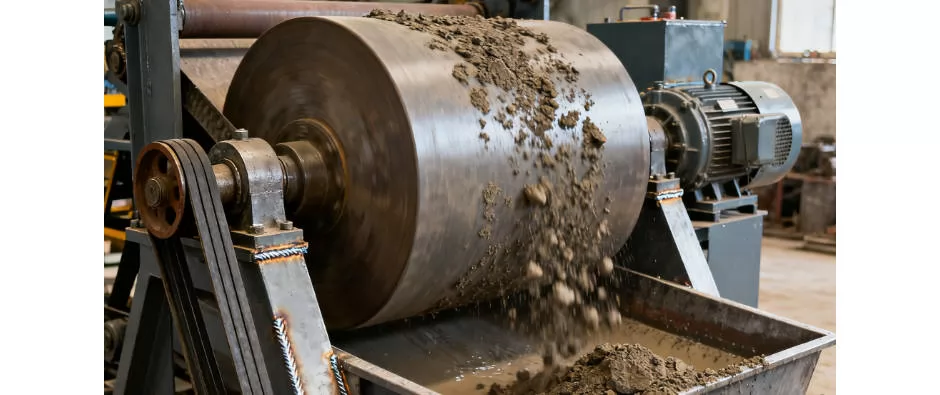

Overview: Wet magnetic separators process materials in liquid media, such as slurries or suspensions, commonly used in mineral processing to separate magnetic minerals like iron ore or kaolin.
Cleaning Type: Often semi-automatic or continuous, using water or liquid flow to flush non-magnetic materials while retaining magnetic ones. Some models feature automated cleaning cycles.
Strength: High magnetic strength, often using rare-earth magnets or electromagnets to capture fine particles in wet conditions.
System Type: Typically part of wet processing plants, integrated into slurry pipelines or gravity-fed systems.
Separation Medium: Handles wet, viscous materials like mineral slurries, where liquid aids in particle dispersion and separation.
Design: Features sealed magnetic drums or tanks to prevent leakage, with designs optimized for high throughput and efficient handling of fine particles in wet environments.
Electro Magnetic Separator

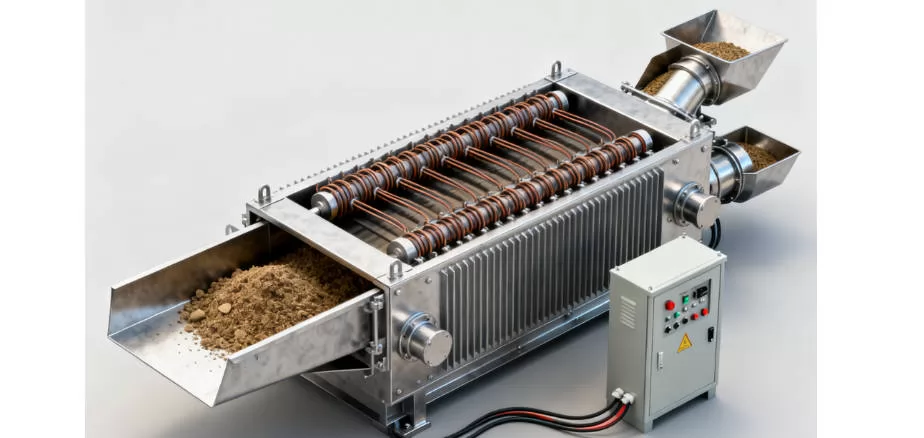

Overview: Electro magnetic separators use electrically generated magnetic fields for separating ferrous materials, offering the ability to turn the magnetic field on or off for greater control.
Cleaning Type: Often manual for smaller units, with larger systems featuring automated cleaning via de-energizing the magnet to release captured materials.
Strength: High and adjustable magnetic strength, suitable for heavy-duty applications requiring precise control over separation.
System Type: Versatile, used in both standalone and integrated systems, such as conveyor lines or processing plants.
Separation Medium: Handles both dry and wet materials, depending on the application, from bulk solids to slurries.
Design: Robust, with electromagnetic coils encased in durable housings. Designs allow for adjustable magnetic intensity and are tailored for heavy industries like mining or recycling.
Conclusion
Magnetic separators are critical for ensuring product purity, protecting equipment, and recovering valuable materials across industries. Each type—Overband, Dry, Eddy Current, Magnetic Coolant, Wet, and Electro Magnetic—offers unique advantages based on cleaning type, magnetic strength, system integration, separation medium, and design. By understanding these factors, industries can select the most suitable separator to enhance efficiency, reduce maintenance, and promote sustainability in their operations.
