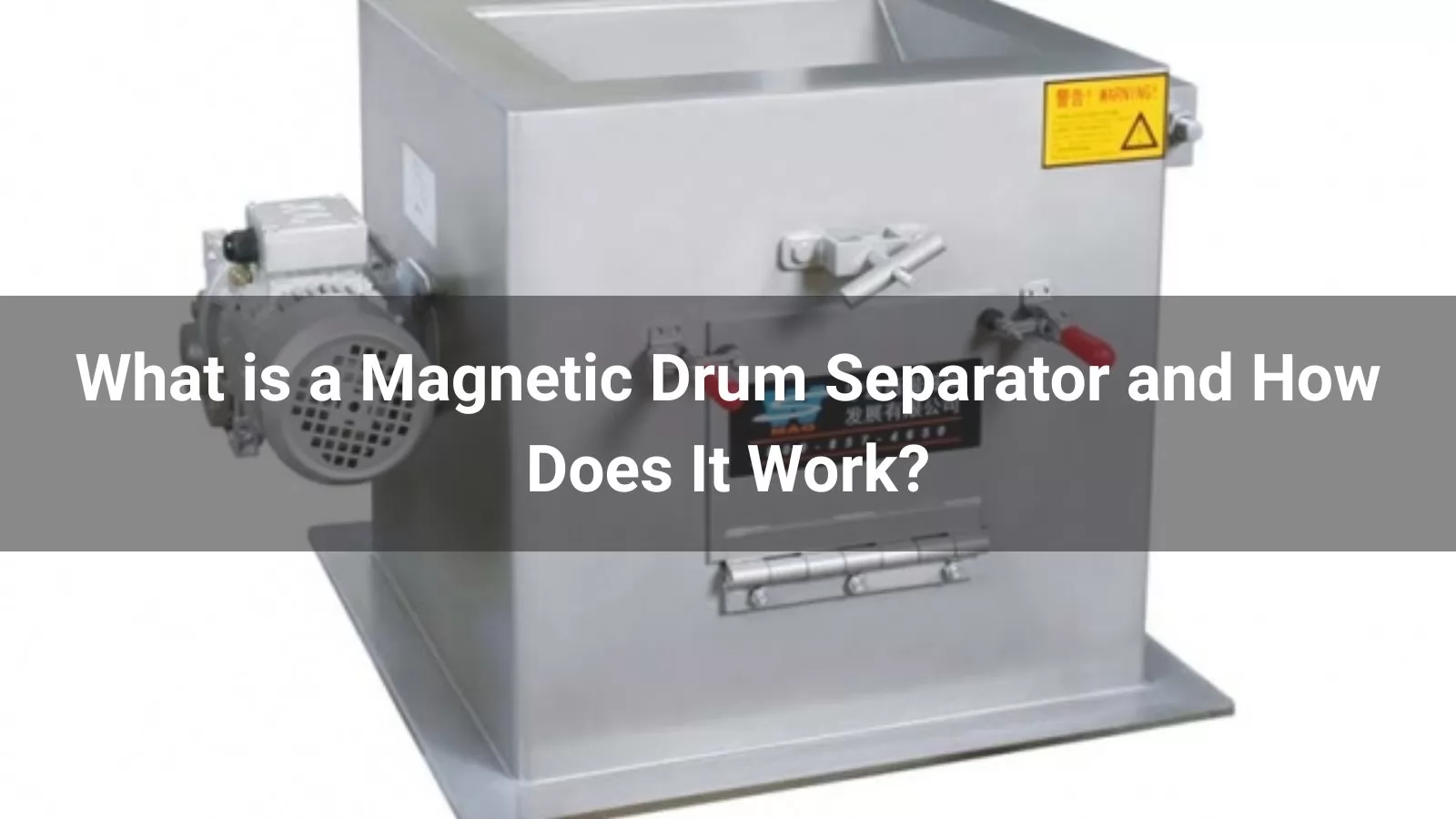

What is a Magnetic Drum Separator and How Does It Work?

A magnetic drum separator is a specialized piece of equipment used in industries such as mining, recycling, and material processing to separate magnetic materials from non-magnetic ones. This technology leverages the power of magnetism to efficiently sort and purify bulk materials, ensuring high-quality output for further processing or recycling. In this article, we will explore what a magnetic drum separator is, how it works, and its applications across various industries.

What is a Magnetic Drum Separator?

A magnetic drum separator is a device designed to remove ferrous (magnetic) contaminants or separate magnetic materials from a stream of dry or wet bulk materials. It consists of a rotating drum, typically made of stainless steel, with a magnetic field generated inside. The drum is usually integrated into a conveyor system or a processing line, where materials pass over or under it, allowing the magnetic components to be captured and separated from non-magnetic materials.

The primary purpose of a magnetic drum separator is to improve product purity, protect downstream equipment from damage caused by metal contaminants, or recover valuable magnetic materials. It is widely used in industries like mining (for iron ore separation), recycling (for metal recovery), food processing (to remove metal impurities), and ceramics or glass production (to ensure material purity).

How Does a Magnetic Drum Separator Work?

The operation of a magnetic drum separator is based on the principles of magnetism and mechanical motion. Below is a step-by-step explanation of how it functions:

1. Material Feed: The process begins with bulk materials—such as ores, aggregates, or recycled materials—being fed onto a conveyor belt or directly into the separator. These materials can be dry (e.g., powders, granules) or wet (e.g., slurries).
2. Magnetic Attraction: Inside the drum, a stationary magnetic assembly generates a powerful magnetic field. This assembly is typically made of permanent magnets (such as ferrite or rare-earth neodymium magnets) or electromagnets, depending on the application. The magnetic field extends through the outer shell of the rotating drum.
3. Separation Process: As the drum rotates, the materials pass over its surface. Ferrous particles (those attracted to magnets, like iron or steel) are drawn to the drum’s surface by the magnetic field and adhere to it. Non-magnetic materials (such as plastic, glass, or non-ferrous metals like aluminum or copper) are unaffected by the magnetic field and continue along their path, typically falling off the conveyor or into a separate collection area.
4. Discharge of Materials: The drum continues to rotate, carrying the magnetic materials to a point where the magnetic field weakens or is absent (often on the opposite side of the drum). At this point, the ferrous materials are released and collected in a designated chute or container. Non-magnetic materials are discharged separately, ensuring clean separation.
5. Continuous Operation: The rotation of the drum allows for continuous processing, making magnetic drum separators highly efficient for high-throughput applications. Some designs incorporate self-cleaning mechanisms, where the drum automatically removes trapped magnetic particles, reducing downtime for maintenance.

Key Components of a Magnetic Drum Separator

• Drum Shell: The outer rotating cylinder, usually made of non-magnetic stainless steel, protects the internal magnetic system and provides a surface for material contact.
• Magnetic System: The stationary magnetic core inside the drum, which generates the magnetic field. It can use permanent magnets for consistent performance or electromagnets for adjustable magnetic strength.
• Drive System: A motor and gear system that rotates the drum at a controlled speed, ensuring smooth operation.
• Frame and Housing: A sturdy structure that supports the drum and integrates it into the material processing line.
• Chutes or Conveyors: Systems to direct the separated magnetic and non-magnetic materials to their respective collection points.

Types of Magnetic Drum Separators

Magnetic drum separators come in various configurations to suit different applications:

• Permanent Magnetic Drum Separators: Use permanent magnets for consistent, low-maintenance operation. They are ideal for applications with steady material flows and moderate magnetic strength requirements.
• Electromagnetic Drum Separators: Use electromagnets, allowing for adjustable magnetic intensity. These are suitable for heavy-duty applications or when precise control is needed.
• Wet Drum Separators: Designed for wet materials or slurries, commonly used in mining for iron ore concentration.
• Dry Drum Separators: Used for dry bulk materials, such as in recycling or mineral processing.

Applications of Magnetic Drum Separators

Magnetic drum separators are versatile and find applications in numerous industries:

• Mining and Mineral Processing: They are used to concentrate magnetic ores (e.g., magnetite) or remove iron contaminants from non-magnetic minerals.
• Recycling: They recover ferrous metals from mixed waste streams, such as in scrap metal processing or electronic waste recycling.
• Food and Pharmaceutical Industries: They remove fine metal particles from grains, powders, or other food products to ensure safety and compliance with regulations.
• Ceramics and Glass: They purify raw materials by removing iron impurities that could affect product quality.
• Coal and Power Plants: They protect equipment like crushers and pulverizers by removing tramp iron from coal or ash.

Advantages of Magnetic Drum Separators

• Efficiency: Continuous operation and high throughput make them ideal for large-scale processing.
• Low Maintenance: Permanent magnet designs require minimal upkeep, and self-cleaning models reduce manual intervention.
• Versatility: Suitable for both wet and dry materials, with customizable magnetic strengths.
• Cost-Effective: They offer a reliable, long-term solution for material separation with low operational costs.

Limitations

• Limited to Ferrous Materials: Magnetic drum separators are only effective for magnetic materials, leaving non-ferrous metals (like aluminum or copper) unaffected.
• Magnetic Strength Constraints: The efficiency depends on the strength of the magnetic field, which may not capture very fine or weakly magnetic particles.
• Installation Space: Large-scale separators require significant space and integration into existing systems.

Conclusion

The magnetic drum separator is a critical tool in industries requiring the separation of magnetic and non-magnetic materials. Its robust design, continuous operation, and adaptability make it a cornerstone of modern material processing. By leveraging the power of magnetism, these separators ensure product purity, protect equipment, and enable the recovery of valuable materials, contributing to efficiency and sustainability in industries worldwide. Whether in mining, recycling, or food processing, the magnetic drum separator remains an indispensable asset for achieving high-quality material separation.
