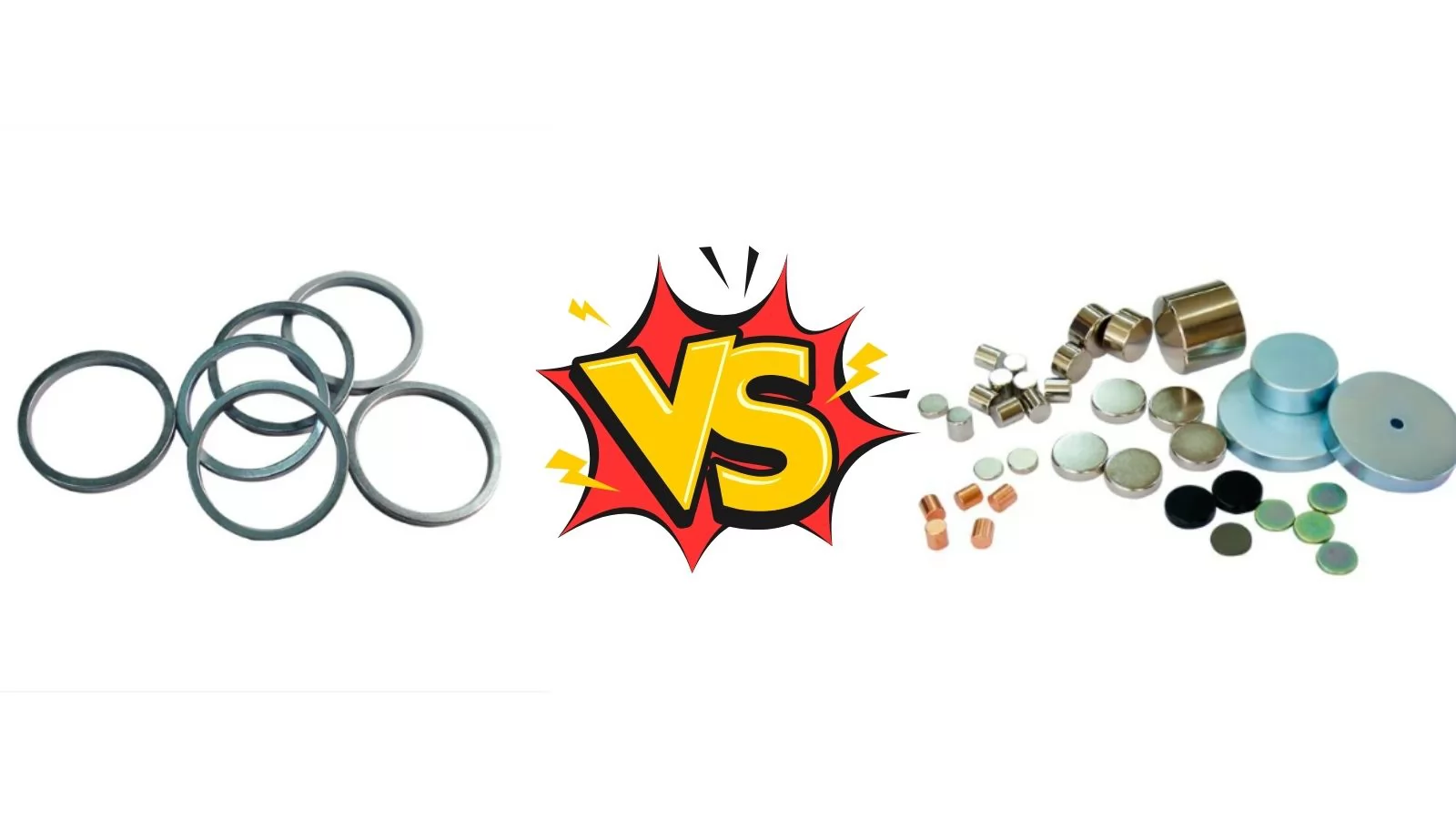

Neodymium Disc Magnets vs Neodymium Ring Magnets
Neodymium magnets, made from an alloy of neodymium, iron, and boron (NdFeB), are the strongest type of permanent magnets available today. As a leading NdFeB magnet manufacturer, MAG SPRING offers both Neodymium Disc Magnets and Neodymium Ring Magnets in various dimensions, grades, and coatings to meet diverse application needs. While both types share similar material properties, their shapes lead to distinct characteristics and uses. This article explores the key differences between neodymium disc magnets and neodymium ring magnets in terms of design, magnetic properties, applications, and practical considerations.
Design and Shape
Neodymium Disc Magnets
-
Shape: Disc magnets are solid, cylindrical magnets with a circular cross-section. Their diameter is typically larger than or equal to their thickness, giving them a flat, coin-like appearance (e.g., D50x10mm).
-
Structure: The solid structure means the magnetic field is distributed across the entire circular surface, with no central void.
-
Magnetization: Typically axially magnetized (magnetic poles on the flat faces), though diametric magnetization (poles on the curved edges) is possible for specific applications.
Neodymium Ring Magnets
-
Shape: Ring magnets are also cylindrical but feature a central hole, giving them a washer-like or donut-shaped appearance (e.g., D50xd20x10mm, where "d" denotes the inner diameter).
-
Structure: The central hole reduces the magnet’s overall mass and alters the magnetic field distribution, concentrating it around the ring’s outer and inner edges.
-
Magnetization: Commonly axially magnetized (poles on the flat faces), but the hole allows for unique mounting or alignment options in assemblies.
Magnetic Properties
Both disc and ring magnets are made from neodymium, offering high magnetic strength (up to 14,000 Gauss) and grades ranging from N35 to N55 (including M, H, SH, UH, AH, RH, TH). However, their magnetic field distribution differs due to shape:
-
Disc Magnets: The solid structure produces a uniform magnetic field across the entire surface, making them ideal for applications requiring a strong, consistent magnetic force over a broad area. The field strength is generally higher at the center of the disc’s face.
-
Ring Magnets: The central hole creates a more complex magnetic field, with stronger fields near the edges of the ring and a weaker field in the center. This makes ring magnets suitable for applications where the magnetic field needs to interact with components passing through or near the hole.
The presence of the hole in ring magnets slightly reduces their overall magnetic strength compared to a disc magnet of the same outer diameter and thickness due to less magnetic material. However, the hole allows for unique field configurations, such as focusing the magnetic field around the inner diameter.
Applications
Neodymium Disc Magnets
Disc magnets are versatile and widely used in applications requiring a strong, uniform magnetic field:
-
Electronics: Used in speakers, headphones, and hard drives for precise magnetic interactions.
-
Motors and Generators: Provide consistent magnetic fields in electric motors and renewable energy systems.
-
Magnetic Holders: Employed in tools, fixtures, and magnetic clasps for secure holding.
-
Medical Devices: Utilized in MRI machines and other medical equipment requiring strong, stable magnetic fields.
-
Consumer Products: Found in magnetic therapy devices, fridge magnets, and educational tools.
Neodymium Ring Magnets
Ring magnets are preferred in applications where the central hole provides functional or mounting advantages:
-
Motors and Sensors: The hole allows for shaft or axle integration in electric motors, rotary sensors, or magnetic couplings.
-
Magnetic Assemblies: Used in magnetic bearings or separators where components pass through the center.
-
Electronics: Employed in loudspeakers or microphones where the hole accommodates other components.
-
Industrial Applications: Ideal for applications requiring alignment or mounting on rods, such as in automation systems or magnetic filtration.
Practical Considerations
Manufacturing and Customization
-
Disc Magnets: Easier to manufacture due to their solid structure, often resulting in lower production costs for standard sizes. Available in diameters up to 300mm (e.g., D300x60mm).
-
Ring Magnets: Require more complex machining to create the central hole, which may increase costs, especially for large sizes (e.g., D300xd200x60mm). The inner diameter adds a customizable dimension, allowing precise tailoring to specific applications.
Coating and Durability
Both disc and ring magnets from MAG SPRING feature reliable coatings, such as Nickel (NiCuNi), Zinc (Zn), Epoxy, or Teflon (PTFE), to prevent corrosion and ensure durability. However:
-
Disc Magnets: The solid surface simplifies coating application, ensuring uniform protection.
-
Ring Magnets: The inner surface of the hole requires careful coating to prevent corrosion, especially in humid or corrosive environments. Teflon-coated ring magnets are particularly suitable for applications needing low friction or water resistance, such as in clothing or washable assemblies.
Handling and Safety
Both types of neodymium magnets, especially in larger sizes, are extremely powerful and require careful handling:
-
Disc Magnets: Their solid structure can make them heavier and more prone to pinching or snapping together forcefully.
-
Ring Magnets: The hole reduces weight, but the shape can complicate handling, as fingers or tools may get caught. The hole also allows for safer mounting on rods or fixtures to secure the magnet during use.
Cost and Availability
-
MOQ and Lead Time: MAG SPRING offers both disc and ring magnets with a minimum order quantity (MOQ) of 1 piece and lead times of 7 to 30 days, depending on quantity and customization.
-
Cost: Disc magnets are generally more cost-effective for standard applications due to simpler manufacturing. Ring magnets may have higher costs due to the additional machining required for the hole, particularly for larger or custom sizes.
Shipping and Packaging
Both magnet types are packaged for safe air or sea shipment, with customized options available. For large neodymium magnets (over 100mm), air shipment requires specialized packaging due to magnetic interference, increasing costs. Sea shipment is more cost-effective but takes longer (30–60 days for large magnets).
Conclusion
Neodymium disc magnets and ring magnets each offer unique advantages based on their shape and magnetic properties. Disc magnets excel in applications requiring a strong, uniform magnetic field over a solid surface, making them ideal for electronics, motors, and holding applications. Ring magnets, with their central hole, are better suited for applications involving shafts, rods, or components passing through the magnet, such as in sensors, magnetic couplings, or assemblies.
When choosing between the two, consider the specific requirements of your application, including magnetic field distribution, mounting needs, and environmental conditions. MAG SPRING provides both types with high-quality NdFeB material, customizable grades, and durable coatings (e.g., NiCuNi or Teflon), all manufactured under strict quality controls and fully RoHS compliant. For further details or to discuss your specific needs, contact MAG SPRING directly.
