How to Choose the Best Magnetic Grate for Industrial Filtration | Magspring

In industries where product purity is non-negotiable—such as food processing, pharmaceuticals, and advanced plastics—magnetic grates (also known as magnetic separators or grate magnets) serve as the first line of defense against ferrous contamination. These devices utilize high-intensity magnetic fields to capture metal fragments, rust, and work-hardened stainless steel from free-flowing powders and granules, ensuring compliance with strict safety standards like HACCP, FDA, and GMP.

Choosing the right magnetic grate involves more than just picking a size; it requires an understanding of magnetic flux density, material flow characteristics, and cleaning mechanisms. This guide, backed by the engineering expertise of MagSpring, details how to select the optimal filtration solution for your specific application.

The Science Behind Magnetic Grates

Magnetic grates operate on the principle of magnetic separation. They consist of a housing (typically stainless steel SS304 or SS316L) containing a series of parallel magnetic tubes or bars. Inside these tubes are arrays of high-energy permanent magnets, often arranged in a specific polarity pattern to maximize the magnetic field gradient on the tube surface.

As material flows over the grate:

• Capture: Ferromagnetic particles are attracted to the points of highest magnetic flux density (often exceeding 10,000 Gauss).
• Retention: The particles are held firmly against the tube wall, resisting the force of gravity and material flow.
• Purification: Non-magnetic material passes through freely, resulting in a contaminant-free product.

Types of Magnetic Grates and Their Applications

Selecting the correct configuration is critical for maximizing separation efficiency. MagSpring offers a diverse range of designs tailored to specific industrial needs:

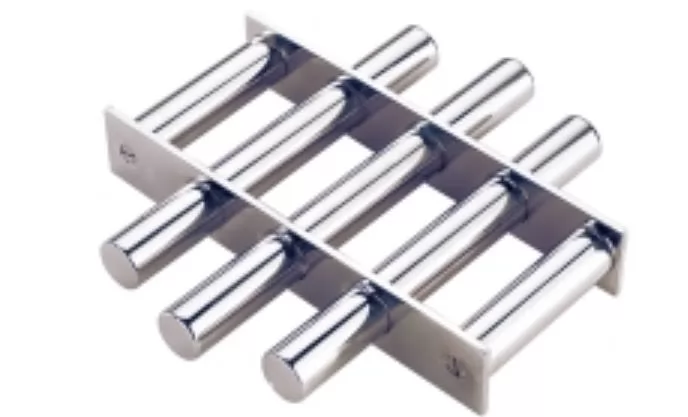

1. Standard Bar Grates

The most common configuration, featuring evenly spaced magnetic bars. Ideal for general-purpose removal of iron from grains, plastics, and chemicals. They are available in various tube diameters and spacing to match particle size.

2. High-Intensity Neodymium Grates (12,000GS - 13,000GS)

For applications requiring the removal of weakly magnetic materials (like work-hardened stainless steel) or fine micron-sized particles, rare-earth neodymium magnets are essential.
• Food Grade: The 13,000GS Grate Magnet Filter ensures maximum purity for sensitive food products.
• With Baffles: To slow down material flow and increase exposure time to the magnetic field, the 12,000GS Permanent Neodymium Grate with Baffle is highly effective for lightweight powders.

3. Easy-Cleaning and Auto-Cleaning Grates

In high-volume or hazardous environments, manual cleaning may be impractical.
• Easy-Clean: The Easy-Cleaning Grate Magnet allows operators to retract the magnetic cores, releasing trapped metal without direct contact, improving hygiene and safety.
• Auto-Clean: For continuous processes, the Auto-Cleaning Grate Magnets utilize pneumatic or motorized systems to wipe tubes automatically, eliminating downtime.

4. Specialized Configurations

• Radial Magnets: Some applications benefit from radial magnetization patterns, which provide a uniform magnetic field around the entire circumference of the tube, eliminating "dead spots."
• Ferrite Options: For less demanding applications where cost is a primary factor and only large iron pieces need removal, ferrite-based grates offer a budget-friendly alternative, though with lower gauss strength.

Key Benefits of Implementing Magnetic Grates

1. Enhanced Product Quality & Safety: Removing metal contaminants prevents consumer injury and recalls, protecting brand reputation.
2. Equipment Protection: Capturing metal before it reaches grinders, extruders, or pumps prevents catastrophic machinery damage and costly repairs.
3. Operational Efficiency: Automated and easy-clean models reduce maintenance downtime, keeping production lines running smoothly.
4. Waste Reduction: By separating contaminants precisely, less good product is discarded compared to bulk screening methods.

Industry Applications

• Food & Beverage: Critical for flour, sugar, grains, and spices. Must meet FDA/USDA standards for food contact.
• Pharmaceuticals: Ensures absolute purity in active pharmaceutical ingredients (APIs) and tablet formulations.
• Plastics & Recycling: Protects extruder screws from metal fragments in recycled resins and virgin pellets.
• Chemicals & Mining: Removes iron from pigments, minerals, and abrasive chemical powders to prevent spark hazards and product discoloration.

How to Choose the Right Magnetic Grate: A Buyer's Checklist

When specifying a magnetic grate, consider the following factors to ensure optimal performance:

1. Material Characteristics: Is the material free-flowing or cohesive? Fine powders may require baffles or wider spacing to prevent bridging.
2. Contaminant Type: Are you removing large iron bolts or micron-sized stainless steel dust? The latter requires high-intensity Neodymium (12,000GS+).
3. Flow Rate & Housing Size: The grate must be sized to handle your throughput without causing bottlenecks. Custom housings are often necessary for existing hoppers.
4. Cleaning Method: Determine if manual cleaning is safe and feasible, or if an easy-clean/auto-clean system is required for your operational workflow.
5. Environment: Consider temperature limits and washdown requirements (IP ratings) for the housing construction.

Why Partner with MagSpring?

With decades of experience in magnetic technology, MagSpring stands out as a trusted partner for industrial filtration. We don't just sell magnets; we engineer solutions.

• Technical Expertise: Our team analyzes your specific material and contamination risks to recommend the perfect gauss strength and configuration.
• Custom Manufacturing: From standard drawer sizes to bespoke housings with radial magnetization, we build to your exact specifications.
• Quality Assurance: Every unit undergoes rigorous testing to ensure stated magnetic field strengths and structural integrity.
• Global Support: Competitive pricing and dedicated customer service ensure you get the best value and support throughout the product lifecycle.

Don't compromise on product purity or equipment safety. Invest in a high-performance magnetic grate solution from MagSpring today. Contact our engineers to discuss your specific filtration challenges and discover how our custom permanent magnet technologies can elevate your production standards.
