What is SmCo Magnets? A Complete Guide to SmCo Magnets

Samarium Cobalt (SmCo) magnets are powerful rare-earth magnets valued for their exceptional magnetic strength, high resistance to demagnetization, and ability to perform in extreme conditions. Available in various shapes and compositions, such as SmCo disc magnets, SmCo arc magnets, SmCo ring magnets, UHT high temperature magnets, Sm2Co17 magnets, and samarium cobalt block magnets, these magnets cater to diverse industrial and technological needs. This guide explores these specific types, their properties, and their applications, providing a detailed resource for engineers, researchers, and industry professionals.

Overview of SmCo Magnets

SmCo magnets are made from an alloy of samarium and cobalt, often with trace elements like iron, copper, or zirconium to enhance performance. They come in two main compositions:

• SmCo5 (1:5 series): One part samarium to five parts cobalt, known for good magnetic strength and corrosion resistance.

• Sm2Co17 (2:17 series): Two parts samarium to 13–17 parts cobalt, offering higher magnetic strength and superior temperature stability, making it ideal for UHT high temperature magnets.

These magnets are renowned for their high coercivity, excellent corrosion resistance, and ability to operate at temperatures up to 350°C (662°F) for Sm2Co17 magnets, far surpassing many other magnet types.

Types of SmCo Magnets

SmCo magnets are manufactured in various shapes to suit specific applications. Below are the key types highlighted in this guide:

1. SmCo Disc Magnets

SmCo disc magnets are cylindrical, flat magnets with a circular shape, characterized by their diameter and thickness. They are versatile and widely used due to their compact size and strong magnetic field.

• Properties:

  • High magnetic energy product (16–32 MGOe).

  • Excellent temperature stability, suitable for UHT high temperature environments.

  • Corrosion-resistant, often requiring no protective coating.

• Applications:

  • Sensors and actuators in aerospace and automotive industries.

  • Magnetic holders in industrial fixtures.

  • Medical devices, such as MRI components, where compact, reliable magnets are needed.

2. SmCo Arc Magnets

SmCo arc magnets are curved, segment-shaped magnets designed to fit around rotors or stators in motors and generators. Their geometry optimizes magnetic flux in rotating machinery.

• Properties:

  • High coercivity ensures resistance to demagnetization in dynamic environments.

  • Available in Sm2Co17 magnet compositions for enhanced performance at high temperatures.

  • Durable in harsh conditions, such as high-speed or high-heat applications.

• Applications:

  • Electric vehicle motors and wind turbine generators.

  • High-performance servo motors in robotics.

  • Magnetic couplings in pumps and compressors.

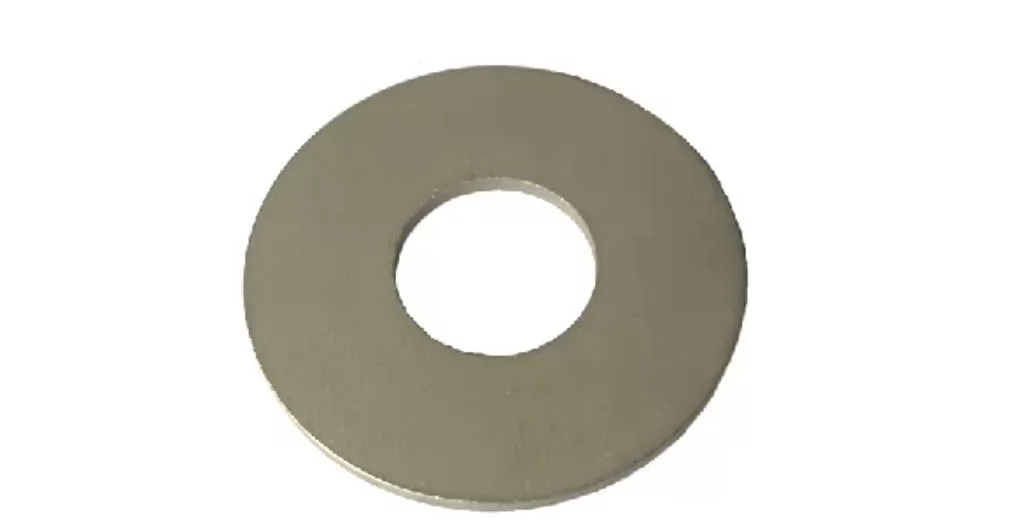

3. SmCo Ring Magnets

SmCo ring magnets are annular magnets with a central hole, offering a unique magnetic field configuration. They are often used in applications requiring a radial or axial magnetic field.

• Properties:

  • Strong magnetic fields, particularly in Sm2Co17 magnet variants.

  • Suitable for UHT high temperature magnets applications, maintaining performance up to 350°C.

  • Brittle, requiring careful handling to avoid cracking.

• Applications:

  • Magnetic bearings in high-precision machinery.

  • Loudspeakers and microphones for audio equipment.

  • Magnetic resonance imaging (MRI) systems in medical technology.

4. Samarium Cobalt Block Magnets

Samarium cobalt block magnets are rectangular or square-shaped magnets, offering a large surface area for strong magnetic fields. They are ideal for applications requiring robust magnetic holding or lifting.

• Properties:

  • High magnetic strength, with Sm2Co17 magnets providing superior performance.

  • Excellent corrosion resistance, eliminating the need for coatings in most environments.

  • High coercivity, ensuring stability in magnetic circuits.

• Applications:

  • Magnetic separators in mining and recycling industries.

  • Holding mechanisms in industrial automation.

  • Research applications, such as particle accelerators and magnetic levitation systems.

5. UHT High Temperature Magnets

UHT high temperature magnets refer to SmCo magnets, particularly Sm2Co17 magnets, engineered to operate in ultra-high-temperature environments (up to 350°C or 662°F). These magnets are critical for applications where other magnets, like NdFeB, would fail due to thermal demagnetization.

• Properties:

  • Exceptional thermal stability, retaining magnetic properties in extreme heat.

  • Available in various shapes, including SmCo disc magnets, SmCo arc magnets, SmCo ring magnets, and samarium cobalt block magnets.

  • High resistance to demagnetization and corrosion.

• Applications:

  • Aerospace components, such as actuators in jet engines.

  • Oil and gas industry sensors operating in high-temperature wells.

  • High-temperature motors in industrial furnaces.

6. Sm2Co17 Magnets

Sm2Co17 magnets are the advanced composition of SmCo magnets, offering higher magnetic strength and temperature stability compared to SmCo5. They are widely used across all SmCo magnet shapes, including discs, arcs, rings, and blocks.

• Properties:

  • Magnetic energy product up to 32 MGOe, surpassing SmCo5.

  • Superior performance in UHT high temperature conditions, up to 350°C.

  • Enhanced mechanical properties with the addition of elements like iron and copper.

• Applications:

  • High-performance motors and generators in electric vehicles and renewable energy systems.

  • Precision sensors in defense and aerospace.

  • Medical implants and devices requiring long-term magnetic stability.

Manufacturing Process

The production of SmCo disc magnets, SmCo arc magnets, SmCo ring magnets, samarium cobalt block magnets, and UHT high temperature magnets involves several steps:

1. Alloy Preparation: Samarium, cobalt, and other elements are melted into an alloy, often for Sm2Co17 magnets.

2. Powder Milling: The alloy is ground into fine particles.

3. Pressing and Shaping: The powder is pressed into shapes like discs, arcs, rings, or blocks, often under a magnetic field for anisotropy.

4. Sintering: The shapes are heated to form dense, solid magnets.

5. Machining: Precision cutting or grinding ensures exact dimensions, critical for SmCo arc magnets and SmCo ring magnets.

6. Magnetization: A strong magnetic field aligns the magnetic domains.

7. Testing: Ensures magnetic performance and dimensional accuracy.

Advantages of SmCo Magnets

• High Temperature Performance: UHT high temperature magnets, especially Sm2Co17 magnets, excel in extreme heat.

• Corrosion Resistance: All SmCo types, including SmCo disc magnets and samarium cobalt block magnets, resist corrosion without coatings.

• Magnetic Stability: High coercivity ensures long-term performance in demanding applications.

• Versatility: Shapes like SmCo arc magnets and SmCo ring magnets enable tailored magnetic solutions.

Limitations

• Cost: Samarium is expensive, increasing the cost of Sm2Co17 magnets and other SmCo types.

• Brittleness: SmCo disc magnets, SmCo arc magnets, and samarium cobalt block magnets are prone to chipping or cracking.

• Lower Strength than NdFeB: SmCo magnets have a lower maximum energy product compared to neodymium magnets.

• Supply Chain Challenges: Rare-earth element availability affects production.

Applications Across Industries

• Aerospace: SmCo arc magnets and UHT high temperature magnets in actuators and sensors.

• Medical: SmCo ring magnets and SmCo disc magnets in MRI and surgical tools.

• Automotive: Sm2Co17 magnets in electric vehicle motors.

• Industrial: Samarium cobalt block magnets in magnetic separators and automation.

• Electronics: SmCo ring magnets in high-end audio systems.

Conclusion

SmCo disc magnets, SmCo arc magnets, SmCo ring magnets, UHT high temperature magnets, Sm2Co17 magnets, and samarium cobalt block magnets offer unmatched performance in high-temperature, high-stability, and corrosion-resistant applications. Their diverse shapes and compositions, particularly the advanced Sm2Co17 magnet, make them indispensable in industries ranging from aerospace to medical technology. Despite their cost and brittleness, SmCo magnets remain a top choice for engineers seeking reliable, high-performance magnetic solutions.
